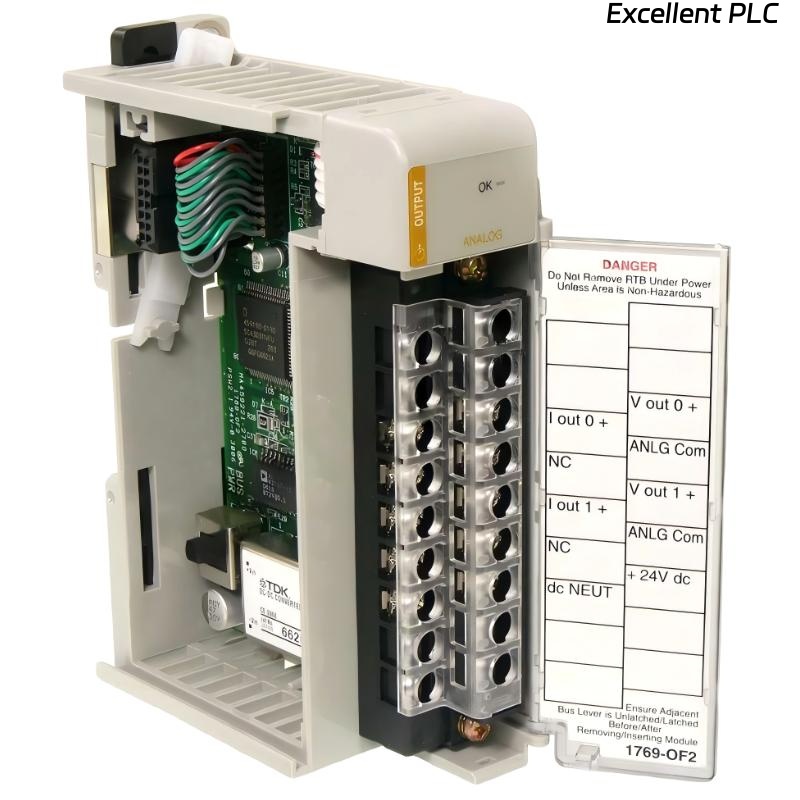

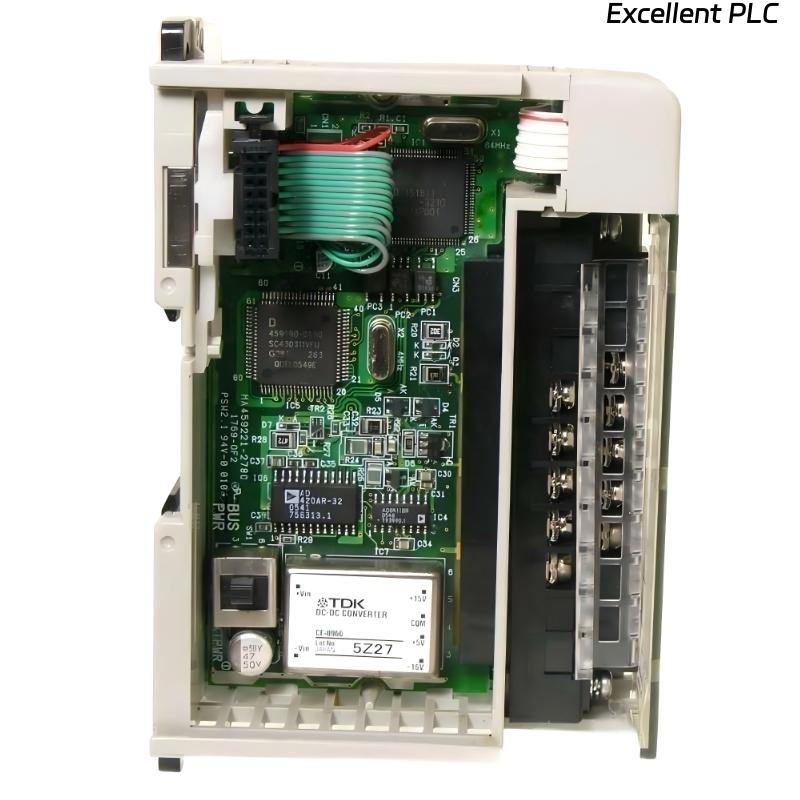

Allen Bradley 1769-OF2 CompactLogix 2 Channel Analog Current/Voltage Output Module

Product Introduction

The Allen Bradley 1769-OF2 CompactLogix 2 Channel Analog Current/Voltage Output Module is a compact analog output module designed for the CompactLogix control platform. It provides two independent analog output channels capable of delivering both current and voltage signals, enabling precise control of analog field devices such as variable speed drives, control valves, actuators, and instrumentation equipment.

This module is designed for applications where accurate analog signal generation is required for process control or machine automation. With a fast conversion rate of 2.5 ms and a step response of 2.9 ms, the 1769-OF2 can respond quickly to control commands from the PLC, ensuring smooth and accurate signal adjustments. These characteristics make it well suited for systems that require responsive analog output performance.

The module integrates easily into CompactLogix I/O architectures and supports reliable operation with low backplane current consumption. Its efficient thermal design and stable signal output make it suitable for industrial environments where consistent analog control is required.

---

Product Specifications

---

Applications

• Process control systems
Used to generate analog signals for regulating valves, pumps, and control loops in industrial processes.

• Variable speed drive control
Provides analog command signals to adjust motor speeds in conveyor systems and machinery.

• Industrial instrumentation
Controls analog devices such as pressure controllers, flow regulators, and temperature controllers.

• Machine automation systems
Delivers precise analog output signals for position control, actuator adjustment, and equipment calibration.

• OEM equipment integration
Commonly used by machine builders for compact automation systems requiring reliable analog signal output.

---

Advantages

• Dual-channel analog output
Provides two independent analog outputs for flexible control of multiple field devices.

• Supports current and voltage signals
Compatible with a wide range of industrial analog instruments and actuators.

• Fast response performance
Conversion rate of 2.5 ms and step response of 2.9 ms ensure responsive control signals.

• Efficient power consumption
Low backplane current draw helps maintain efficient operation within CompactLogix systems.

• Reliable industrial design
Stable analog signal generation supports precise control in demanding industrial environments.

FAQ

1. What type of analog signals can the 1769-OF2 module output?
   The module supports both current and voltage analog signals, allowing it to control a wide range of industrial devices including drives, valves, and actuators.

2. How many analog output channels are available on this module?
   The module provides two independent analog output channels that can be configured for different signal types depending on the application.

3. What is the conversion rate of the analog output signals?
   The module has a conversion rate of 2.5 milliseconds, enabling quick signal updates for responsive process control.

4. What is the step response time of the module?
   The step response time is approximately 2.9 milliseconds, allowing the output signal to stabilize quickly after a change in command value.

5. What types of devices typically use analog output signals from this module?
   Typical devices include variable frequency drives, control valves, actuators, and various process instrumentation devices.

6. How much current does the module draw from the backplane?
   The module requires approximately 120 mA at 5.1 V from the controller backplane during operation.

7. Can this module be used in process automation systems?
   Yes, it is commonly used in process control environments where precise analog signals are needed to regulate equipment and maintain system stability.

8. How does analog output improve control accuracy in automation systems?
   Analog outputs allow continuous signal adjustment rather than simple on/off control, enabling more precise regulation of devices such as drives and valves.

9. Is the module suitable for machine automation applications?
   Yes, it is frequently used in machinery that requires adjustable analog control signals for positioning, speed regulation, or process calibration.

10. Can the module operate with other CompactLogix I/O modules in the same system?
    Yes, it is designed to integrate seamlessly with other 1769 series modules to create flexible and scalable automation architectures.
