Allen Bradley 1771-OC DC Output Driver Module

Product Introduction

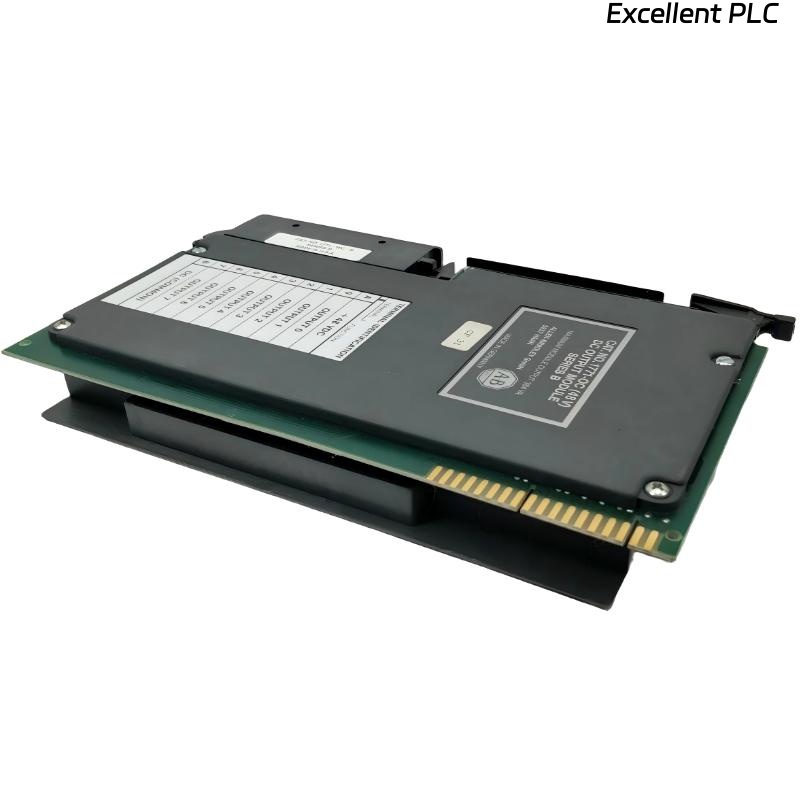

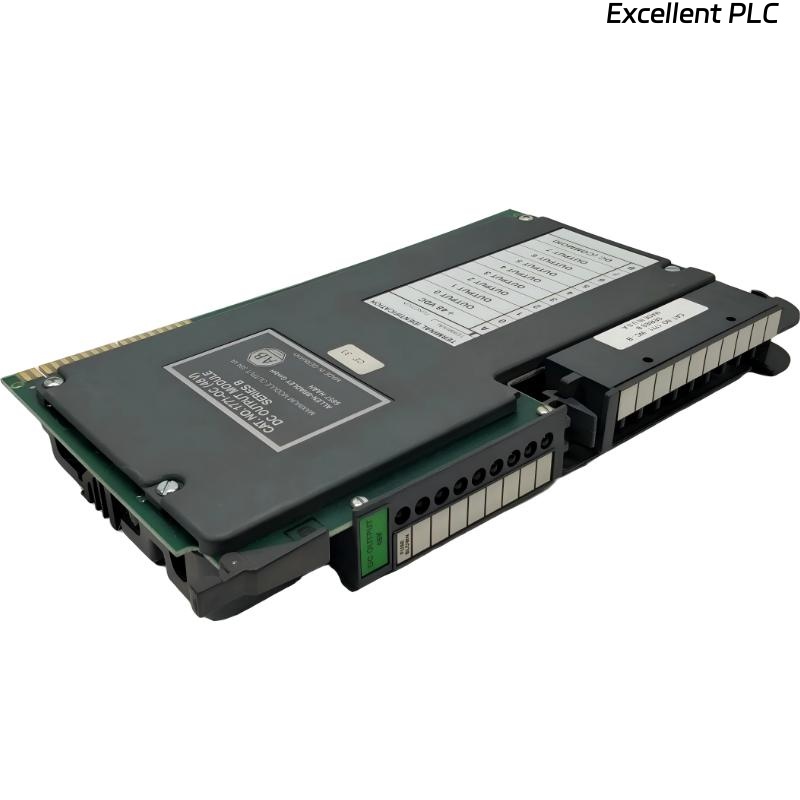

The Allen-Bradley 1771-OC DC Output Driver Module is a compact DC output driver module designed for the PLC-5 1771 I/O system by Allen-Bradley. It provides high-reliability DC output control for industrial automation systems, allowing PLCs to switch and drive external devices efficiently.

This module features 8 DC output points, each operating at 48 VDC, making it suitable for controlling solenoids, relays, small DC motors, and other DC-powered field devices. Its compact design allows easy installation in a 1771 I/O chassis, providing precise digital-to-DC control integration with PLC-5 systems. The 1771-OC ensures stable operation in harsh industrial environments where dependable DC output is critical.

---

Product Specifications

---

Applications

● Industrial DC Load Control
Drives solenoids, relays, and other DC devices in automated processes.

● PLC-5 Automation Systems
Translates digital PLC commands into controlled 48 VDC outputs.

● Manufacturing and Production Lines
Operates DC-powered equipment such as small motors and actuators.

● Energy and Utility Systems
Switches DC-powered field devices for energy distribution and control.

● Instrumentation and Test Systems
Provides reliable DC output for laboratory or industrial measurement setups.

---

Advantages

● Compact and Efficient
8 DC outputs in a small form factor for flexible system design.

● High-Voltage Operation
Supports 48 VDC outputs for a wide range of industrial applications.

● Reliable PLC Integration
Communicates through the 1771 backplane with PLC-5 controllers.

● Stable Performance
Designed for consistent operation in harsh industrial environments.

● Simple Installation
Fits standard 1771 I/O chassis slots for easy integration.

● Versatile Application
Suitable for solenoids, relays, actuators, and small DC motors.

FAQ

1. What is the main function of the 1771-OC module?
   It provides 8 DC output channels to control field devices using 48 VDC.

2. How many output points does the module have?
   It has 8 digital DC outputs.

3. What is the operating voltage for the outputs?
   Each output operates at 48 VDC.

4. What types of devices can it control?
   It can operate solenoids, relays, small DC motors, and actuators.

5. Where is the module installed?
   It is installed in a slot of the 1771 I/O chassis within a PLC-5 system.

6. Can it be used with other 1771 modules?
   Yes, it integrates with other digital and analog 1771 modules.

7. Why is compact design important?
   It allows efficient use of I/O chassis space while supporting multiple outputs.

8. Is it suitable for harsh industrial environments?
   Yes, it is designed for reliable operation under demanding conditions.

9. How does it interface with the PLC?
   It communicates via the 1771 backplane to receive digital control signals.

10. Which industries typically use this module?
    Manufacturing, process automation, utilities, and industrial control applications.
