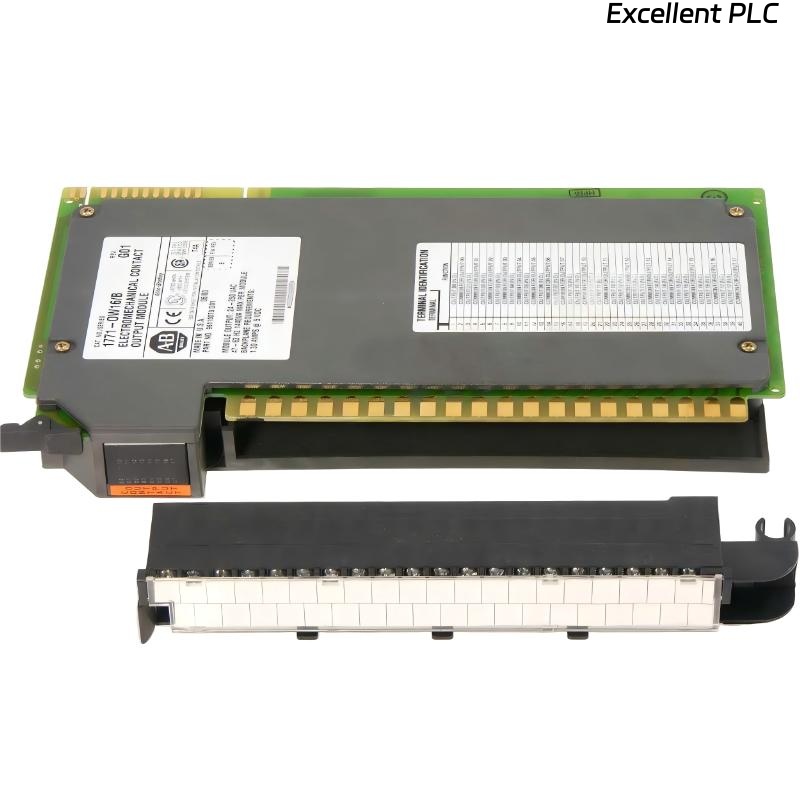

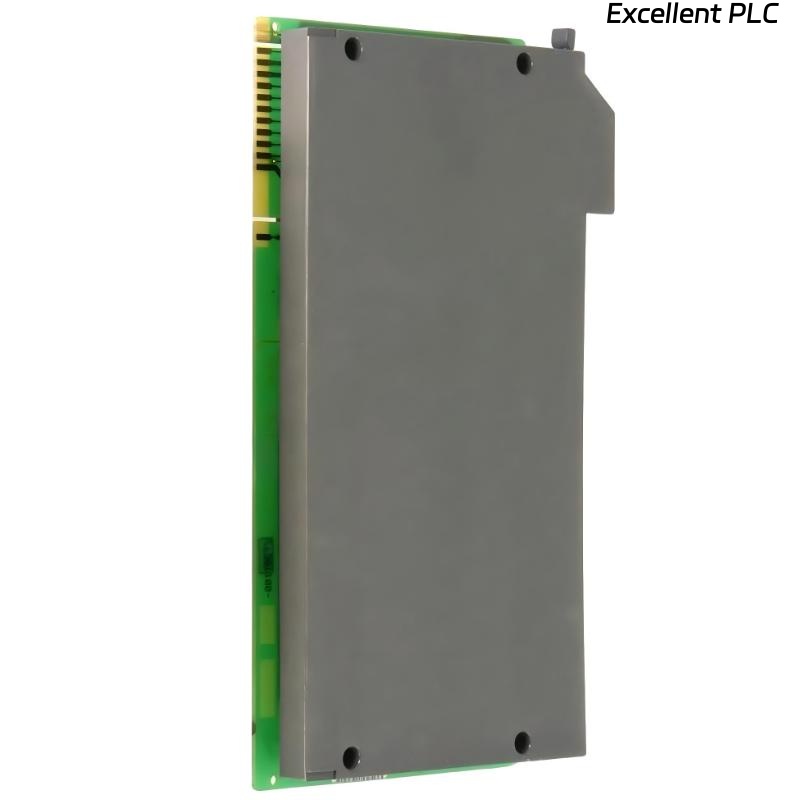

Allen Bradley 1771-OW16 Electromechanical Relay Contact Output Module

Product Introduction

The Allen-Bradley 1771-OW16 Electromechanical Relay Contact Output Module is a digital output interface module designed for use within the Allen-Bradley 1771 PLC-5 I/O System. It provides dependable control of field equipment through electromechanical relay contacts, enabling the programmable logic controller to switch industrial loads safely and reliably.

This module features 16 independent relay output channels, allowing the PLC system to control a variety of devices such as contactors, solenoid valves, alarms, motor starters, and signal indicators. Because the outputs rely on mechanical relay contacts instead of semiconductor switching elements, the module can handle higher voltages and a wider range of electrical loads. This makes it particularly useful in industrial environments where different types of equipment must be controlled within the same automation system.

Another important characteristic of the module is its strong electrical isolation provided by relay contacts. This helps protect the PLC electronics from voltage spikes, electrical noise, or transient disturbances that may originate from field devices such as motors or inductive loads. As a result, the module is well suited for industrial environments where electrical interference is common.

Because of its stable performance and compatibility with PLC-5 systems, the 1771-OW16 module continues to be widely used in manufacturing production lines, energy systems, process industries, and infrastructure automation projects where dependable output control is required.

---

Product Specifications

---

Applications

• Industrial machine control
The module is widely used in automated machinery to control contactors, relays, motor starters, and indicator lamps, allowing the PLC system to operate mechanical equipment through reliable switching signals.

• Process automation systems
In process industries such as chemical processing and oil refining, the module can activate solenoid valves, pumps, and alarm devices, ensuring precise control of process equipment.

• Power generation facilities
Relay output modules are commonly used in power plants to control cooling systems, lubrication pumps, auxiliary motors, and monitoring alarms associated with turbines and generators.

• Water treatment and infrastructure control
Municipal infrastructure systems rely on PLC control to manage pump stations, filtration units, and control valves. The 1771-OW16 module provides dependable switching for these devices.

• Maintenance of legacy PLC-5 installations
Many industrial facilities continue to operate PLC-5 automation systems. This module is frequently used as a replacement or expansion module within existing 1771 I/O racks.

---

Advantages

• Wide voltage compatibility
The relay contacts allow the module to switch loads across a broad AC voltage range, making it suitable for different types of industrial control circuits.

• Strong electrical isolation
Electromechanical relays create a physical separation between PLC electronics and field equipment, reducing the risk of electrical interference affecting the control system.

• Support for AC and DC load control
Relay outputs can operate both alternating and direct current circuits, which provides greater flexibility than many solid-state output modules.

• Reliable switching capability
Each output channel supports up to 2 amperes of current, enabling the module to drive many field devices directly.

• Industrial-grade durability
The module is designed to operate reliably in environments where electrical noise, vibration, and temperature fluctuations are present.

• Compatibility with PLC-5 architecture
The module integrates seamlessly into the 1771 PLC-5 I/O platform, allowing easy installation and long-term system support.

FAQ

1. What type of output technology does the 1771-OW16 module use?
   The module uses electromechanical relay contacts to switch output circuits controlled by the PLC program.

2. Can the module control both AC and DC loads?
   Yes, relay contacts allow the module to switch both AC and DC loads within the rated voltage and current range.

3. Is there electrical isolation between the PLC and field devices?
   Yes, the relay contacts provide electrical isolation between the control circuitry and the external load circuits.

4. What types of devices are typically connected to the outputs?
   Typical devices include solenoid valves, contactors, alarm systems, motor starters, and indicator lights.

5. How does the module receive commands from the PLC processor?
   Control signals are transmitted through the 1771 backplane, which connects the module to the PLC processor.

6. Is surge suppression recommended for inductive loads?
   Yes, protective components such as RC snubbers or suppression diodes are commonly used to reduce voltage spikes.

7. Can the module be used for high-speed switching applications?
   Relay outputs are intended for standard control switching rather than high-speed or high-frequency switching.

8. What happens if the current exceeds the rated output value?
   Exceeding the rated current may cause excessive relay contact wear or damage.

9. Are all output channels independently controlled?
   Yes, each of the 16 relay outputs can be individually controlled by the PLC program.

10. Is the module compatible with all systems that use 1771 I/O racks?
    The module is designed for systems that support the 1771 I/O platform, including PLC-5 based control systems.
