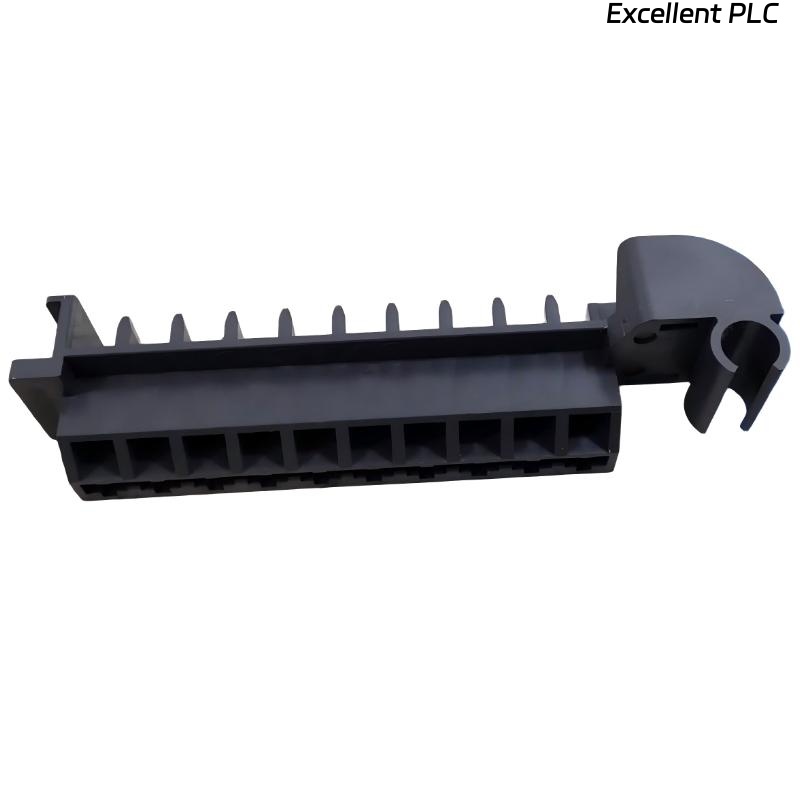

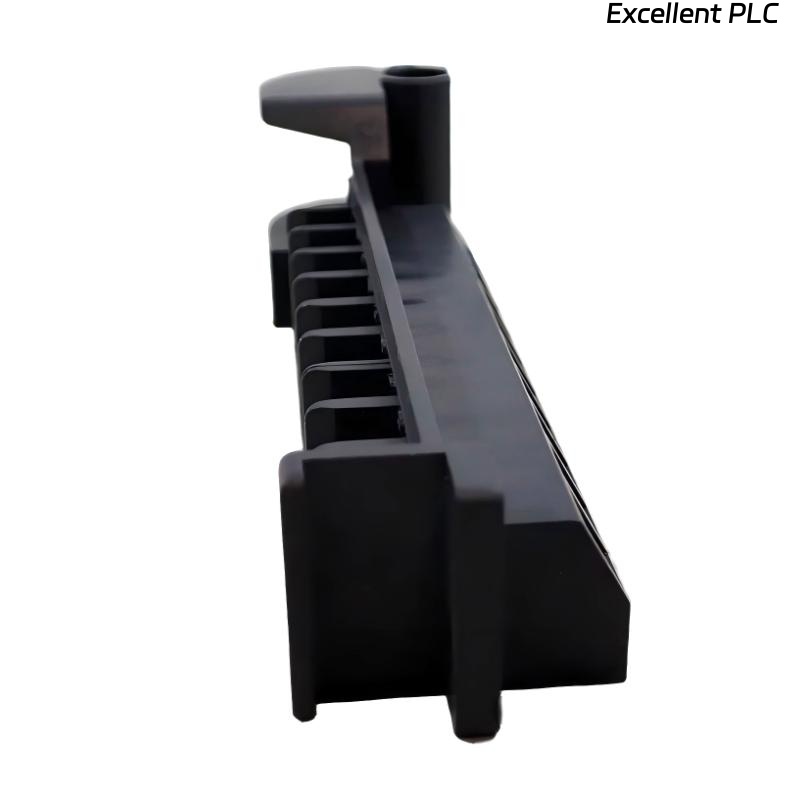

Allen Bradley 1771-WC Field Wiring Arm

Product Introduction

The Allen-Bradley 1771-WC Field Wiring Arm is an accessory for the Allen-Bradley 1771 PLC-5 I/O System. It provides a structured interface for field wiring, simplifying the connection between PLC modules and external devices.

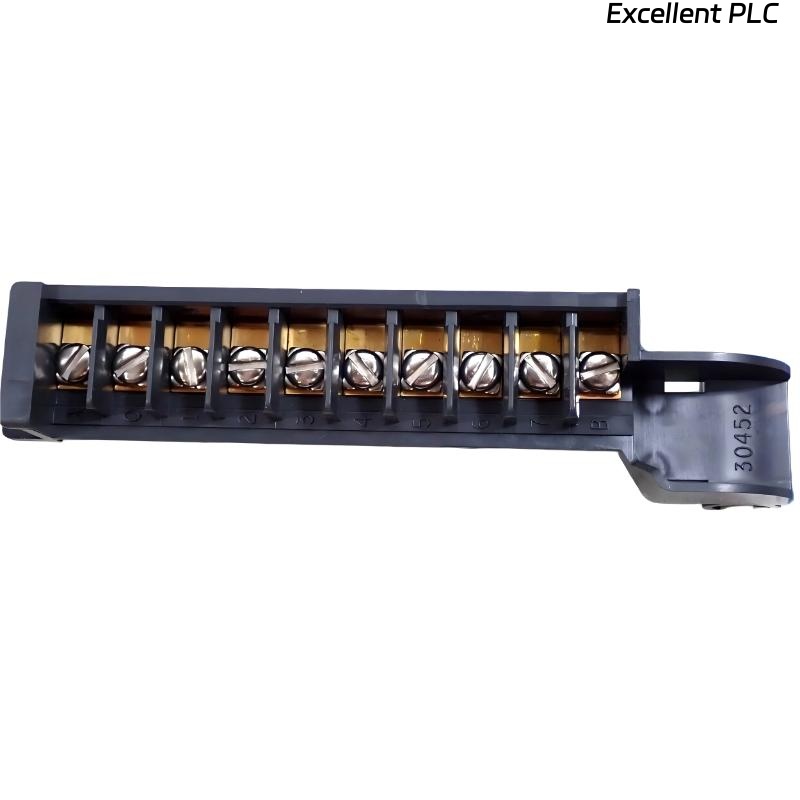

The wiring arm includes 10 terminals with gold-plated contacts to ensure reliable electrical connections and reduce signal degradation or corrosion. It is designed for 8 I/O points, making it suitable for small to medium PLC-5 applications.

The 1771-WC improves wiring organization and system maintenance, making it ideal for industrial automation, process control, and compact control panel installations.

---

Product Specifications

---

Applications

• Field wiring interface
Provides connection points for 8 I/O modules, enabling neat and reliable wiring to external devices.

• Industrial automation systems
Used to connect sensors, actuators, and digital or analog modules to the PLC rack.

• Process control applications
Simplifies wiring for systems managing valves, pumps, and monitoring instruments.

• Compact control panels
Small size allows integration in tight control cabinets or modular setups.

• Maintenance and troubleshooting
Organized layout helps technicians identify and service connections efficiently.

---

Advantages

• Gold-plated contacts
Ensures reliable electrical connections and long-term corrosion resistance.

• Supports 8 I/O modules
Provides terminals for small to medium I/O configurations.

• Compact and lightweight
Facilitates easy installation in restricted control panel spaces.

• Improves wiring organization
Consolidates field connections into a single interface, reducing clutter.

• Compatibility with 1771 PLC-5 modules
Integrates seamlessly into the PLC-5 I/O system.

• Facilitates maintenance
Simplifies troubleshooting, upgrades, and I/O modifications.

FAQ

1. What is the purpose of the 1771-WC wiring arm?
   It organizes field wiring for 8 I/O modules, providing a structured interface to PLC-5 modules.

2. How many terminals are available?
   The module has 10 terminals for wiring connections.

3. What material are the contacts made of?
   The contacts are gold-plated for reliable connections and corrosion resistance.

4. How many I/O points does it support?
   It supports 8 I/O points.

5. Can it be used in compact control panels?
   Yes, its small form factor allows easy installation in tight spaces.

6. Does it improve wiring organization?
   Yes, it consolidates field wiring into a single, neat interface.

7. Is it compatible with all 1771 PLC-5 modules?
   Yes, it installs into standard 1771 I/O chassis modules.

8. Does it provide electrical protection?
   No, it only ensures reliable connectivity; protection must come from other components.

9. Can it support analog and digital signals simultaneously?
   Yes, the terminals can handle both digital and analog I/O wiring.

10. How does it assist maintenance tasks?
    Organized terminals make identification, troubleshooting, and upgrades simpler.
