Allen Bradley 1783-BMS06TL Stratix 5700 Ethernet Managed Switch

Product Introduction

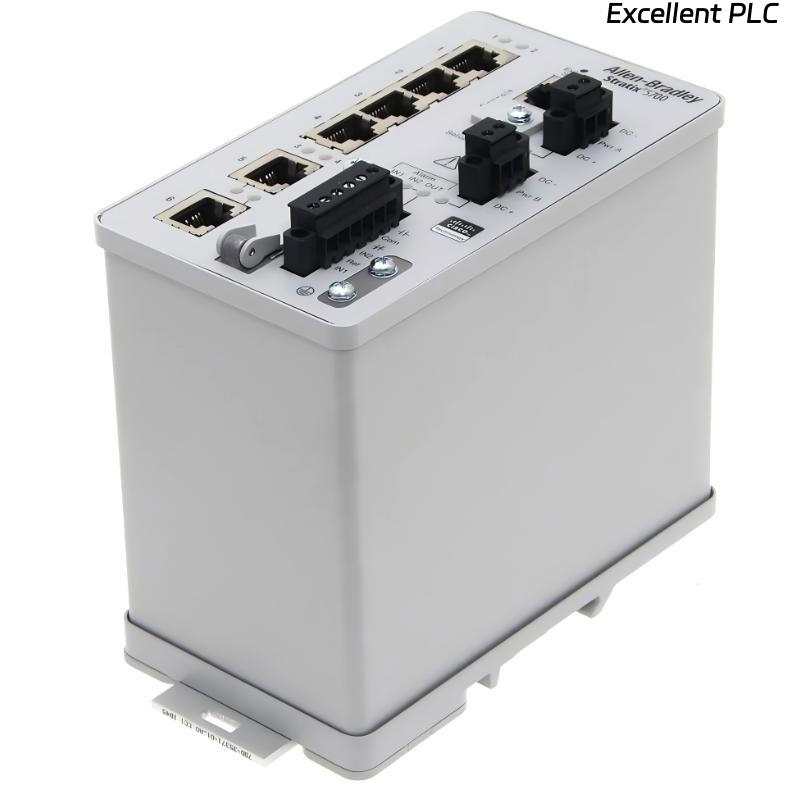

The Allen-Bradley 1783-BMS06TL Stratix 5700 Ethernet Managed Switch is an industrial managed Ethernet switch designed to support reliable network communication in automation systems. Developed under the Allen-Bradley Stratix 5700 Industrial Ethernet Switch Series, the device provides stable connectivity for PLCs, HMIs, drives, and other industrial network devices.

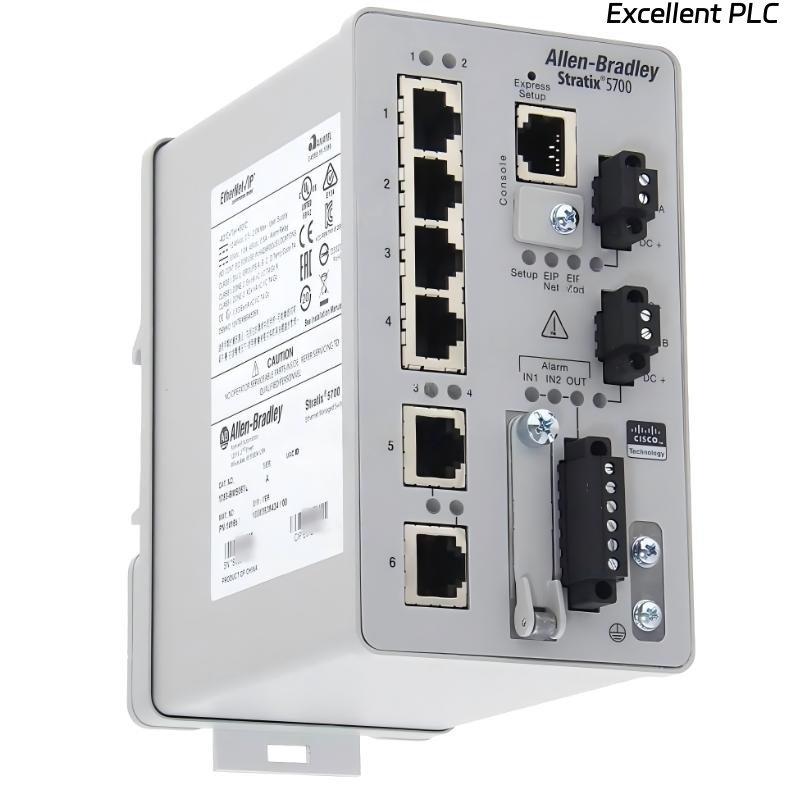

This switch features six Fast Ethernet ports with 10/100 Mbps communication capability, allowing efficient data exchange between multiple automation components. Equipped with Lite firmware, it supports essential network management functions while maintaining a streamlined configuration environment suitable for industrial networks.

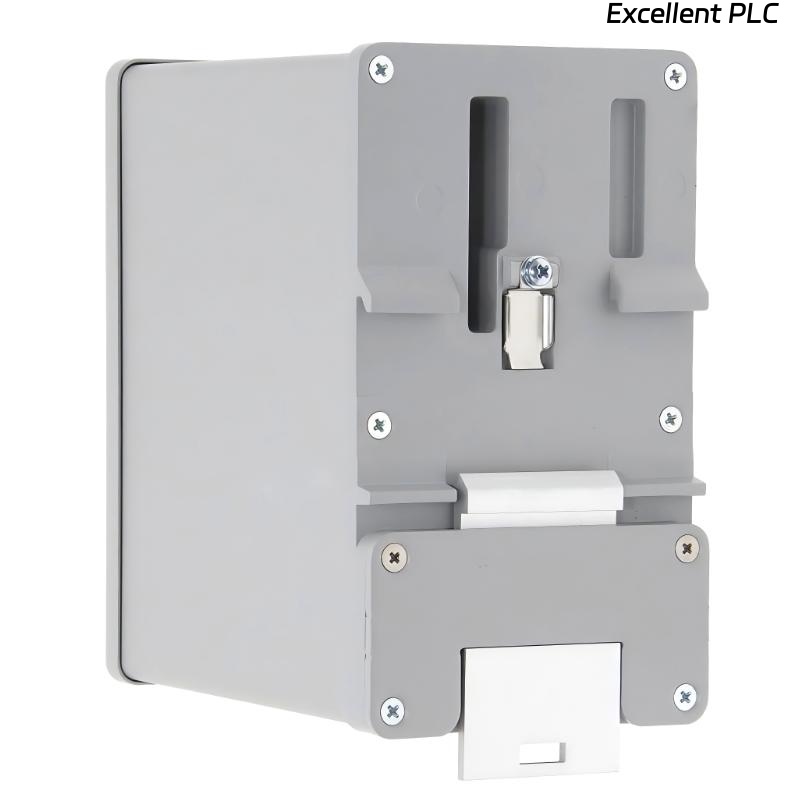

With support for 12–48 VDC power input and DIN rail mounting, the 1783-BMS06TL integrates easily into industrial control cabinets. Its rugged IP30-rated enclosure ensures dependable operation in demanding factory environments, making it suitable for machine-level networks, distributed control systems, and industrial Ethernet infrastructure.

---

Product Specifications

---

Applications

• Industrial Ethernet network infrastructure
Provides reliable network connectivity between PLCs, HMIs, industrial computers, and drives.

• Machine-level automation networks
Supports communication between devices within individual machines or production cells.

• Manufacturing plant communication systems
Used in industrial environments to connect automation controllers and monitoring equipment.

• Distributed control systems
Allows communication between multiple automation nodes across industrial networks.

• Industrial control cabinet networking
Installed in control panels to organize and manage Ethernet connections between automation devices.

---

Advantages

• Industrial-grade managed switching
Designed to provide reliable Ethernet communication in demanding automation environments.

• Six Fast Ethernet ports
Supports connection of multiple industrial devices with 10/100 Mbps data transmission.

• Lite firmware management features
Offers essential network management functions while maintaining simplified configuration.

• Wide DC power input range
Accepts 12–48 VDC, allowing compatibility with typical industrial power systems.

• DIN rail installation
Allows quick installation within industrial control cabinets and network panels.

• Rugged industrial enclosure
IP30-rated design provides protection suitable for factory environments.

FAQ

1. What type of device is the 1783-BMS06TL?
   It is a managed industrial Ethernet switch designed for automation network communication.

2. How many Ethernet ports are available on the switch?
   The device provides six Fast Ethernet ports.

3. What communication speed does the switch support?
   Each port supports Ethernet communication at 10/100 Mbps.

4. What firmware version does this model use?
   The switch operates with Lite firmware designed for simplified network management.

5. What type of power input does the device require?
   The switch operates using a 12–48 VDC power supply.

6. Is the device suitable for industrial control panels?
   Yes, the DIN rail mounting design makes it ideal for installation in control cabinets.

7. Can the switch connect PLCs and HMIs on the same network?
   Yes, it allows multiple automation devices to communicate within the same Ethernet network.

8. What type of protection rating does the enclosure provide?
   The device has an IP30-rated enclosure designed for industrial environments.

9. What type of industrial systems commonly use this switch?
   Machine automation systems, distributed control systems, and plant-level Ethernet networks.

10. Does the switch support managed network functionality?
    Yes, it includes managed switching features through the Lite firmware configuration.
