Product Introduction

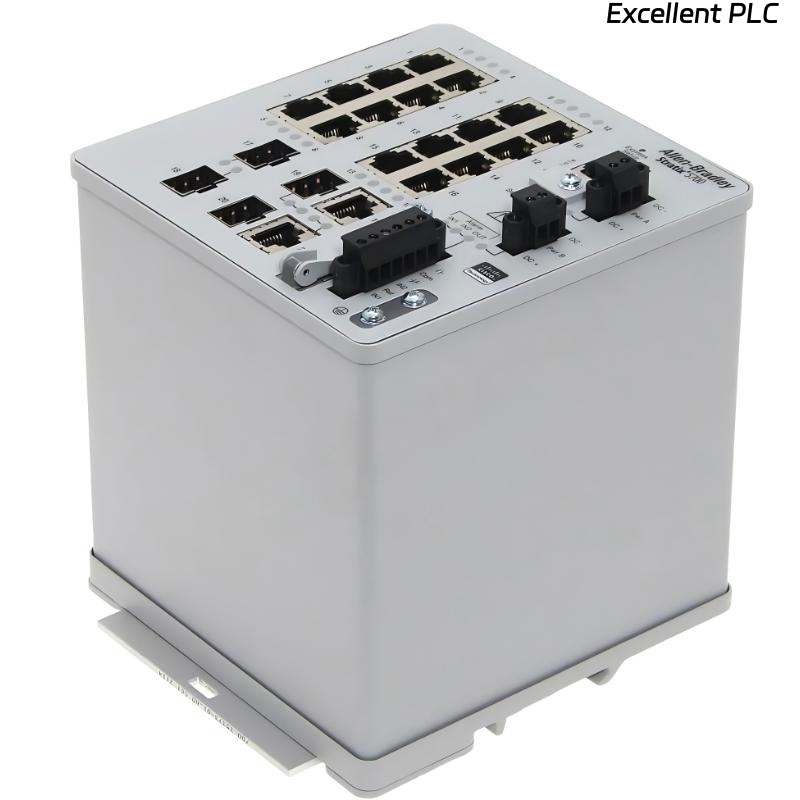

The Allen-Bradley 1783-BMS20CA Stratix 5700 Ethernet Managed Switch is an industrial managed Ethernet switch designed to provide scalable and reliable network connectivity for automation systems. As a member of the Allen-Bradley Stratix 5700 Industrial Ethernet Switch Series, it supports high device density and flexible network architecture in industrial environments.

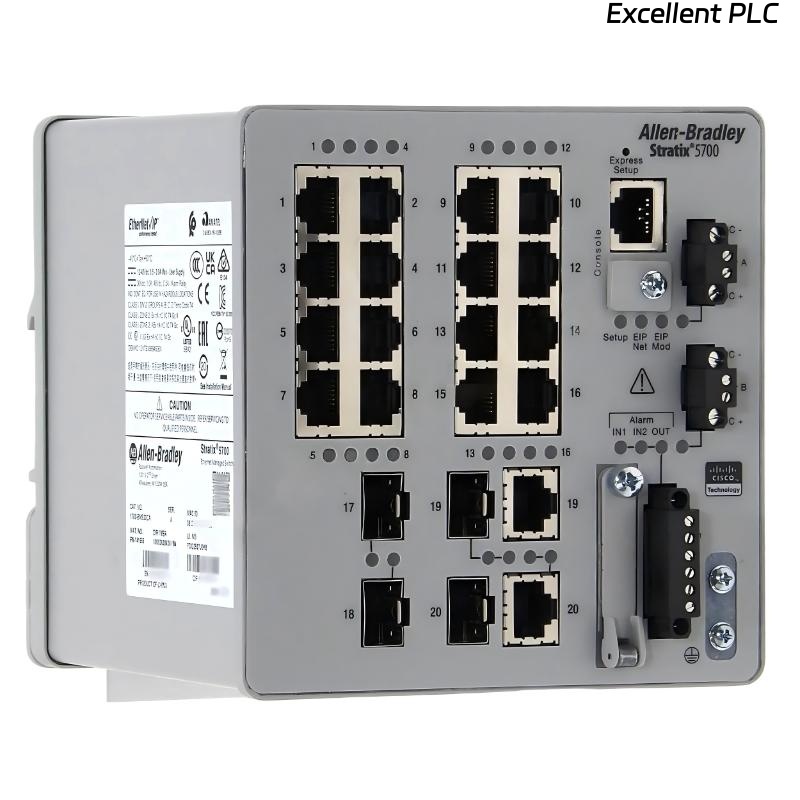

This managed switch provides multiple copper Ethernet ports along with combo and SFP slots, enabling flexible network connections using either copper or fiber communication. The combination of standard Ethernet ports and modular fiber connectivity allows the device to support both short-distance equipment connections and longer-distance network links across plant infrastructure.
The 1783-BMS20CA is commonly used in industrial networks that require stable device communication, centralized network management, and scalable connectivity. It is widely applied in manufacturing systems, machine automation networks, and plant-wide Ethernet infrastructures where dependable industrial networking is essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-BMS20CA |
| Brand | Allen-Bradley |
| Product Type | Managed Industrial Ethernet Switch |
| Series | Stratix 5700 |
| Copper Ethernet Ports | 16 Ports |
| Combo Ports | 2 Combo Ports (Copper or SFP Slot) |
| SFP Slots | 2 SFP Slots |
| Ethernet Speed | 10/100 Mbps |

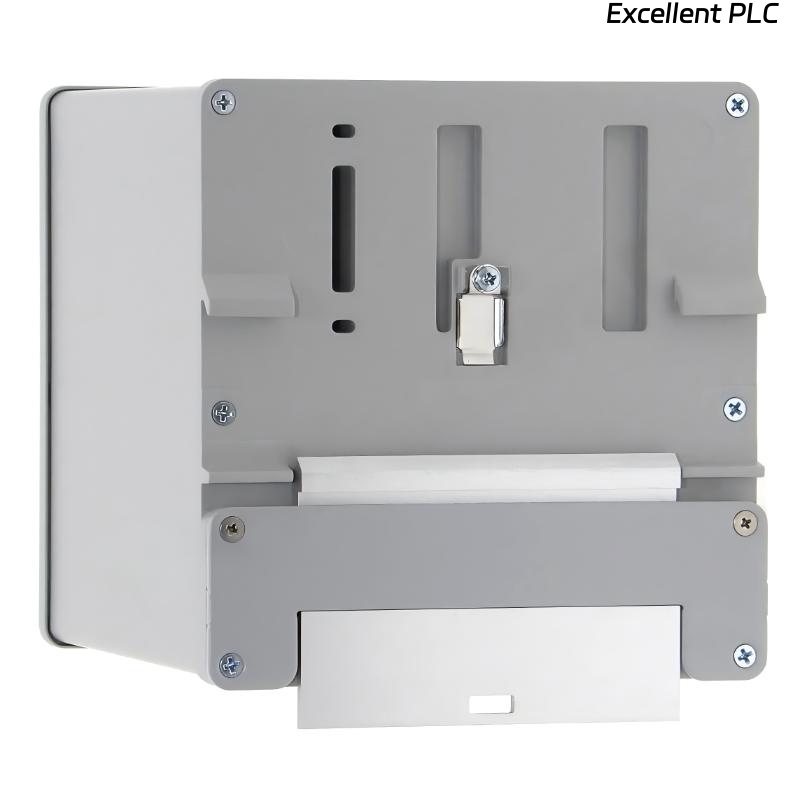

| Mounting Method | DIN Rail Mount |
| Application Type | Industrial Ethernet communication |
| Dimensions | 135.8 x 127 x 129.5 mm |
| Weight | 2.04 kg |
Applications
• Industrial automation network infrastructure
Connects PLCs, drives, HMIs, industrial computers, and I/O devices within automation systems.
• Plant-wide Ethernet networks
Supports communication between multiple production lines and distributed control systems.
• Machine-level networking
Provides reliable connectivity for controllers, sensors, and control devices within industrial machines.
• Fiber and copper hybrid networks
Supports both copper Ethernet connections and fiber network links for extended communication distances.
• Industrial control cabinet networking
Installed in automation panels to manage and organize Ethernet communication between devices.
Advantages
• High port density
Provides 16 copper Ethernet ports to support multiple network devices within a single switch.
• Flexible connectivity options
Combo ports allow either copper or SFP fiber connections, enabling adaptable network configurations.
• Fiber network expansion capability
Dedicated SFP slots support fiber communication for longer-distance industrial networks.
• Industrial-grade reliability
Designed for continuous operation in demanding industrial automation environments.
• Scalable network architecture
Supports expansion of automation systems with multiple connected devices.
• Optimized for industrial Ethernet communication
Ensures stable and efficient communication between controllers and networked industrial equipment.
