Product Introduction

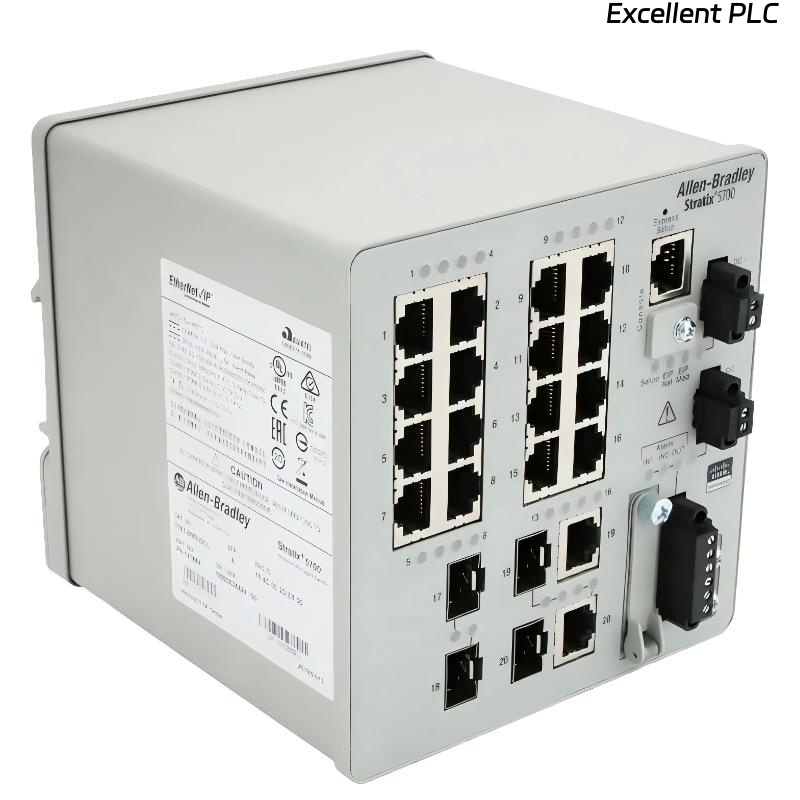

The Allen-Bradley 1783-BMS20CL Stratix 5700 Ethernet Managed Switch is an industrial managed Ethernet switch designed to provide high-capacity connectivity for automation networks. As part of the Allen-Bradley Stratix 5700 Industrial Ethernet Switch Series, it delivers reliable communication between controllers, industrial devices, and network infrastructure within manufacturing environments.
This managed switch offers multiple copper Ethernet ports together with combo and SFP slots, allowing flexible network connections using copper cables or fiber optic modules. Such versatility enables both short-distance device connections and long-distance plant network links, making it suitable for a wide range of industrial networking applications.
The 1783-BMS20CL is commonly deployed in industrial automation systems, machine-level networks, and plant-wide Ethernet infrastructures where dependable data communication and centralized network management are required for efficient operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-BMS20CL |
| Brand | Allen-Bradley |
| Product Type | Managed Industrial Ethernet Switch |
| Series | Stratix 5700 |
| Copper Ethernet Ports | 16 Ports |
| Combo Ports | 2 Combo Ports (Copper or SFP Slot) |
| SFP Slots | 2 SFP Slots |
| Ethernet Speed | 10/100 Mbps |

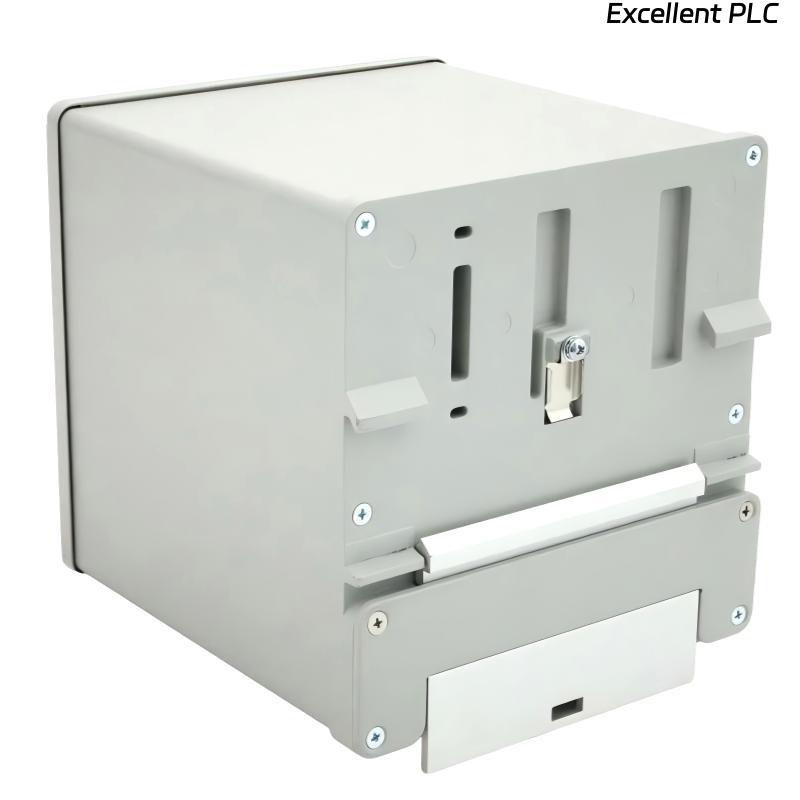

| Mounting Method | DIN Rail Mount |
| Application Type | Industrial Ethernet communication |
| Dimensions | 129.5 × 127 × 135.8 mm |
| Weight | 2.04 kg |
Applications
• Industrial Ethernet infrastructure
Provides reliable connectivity between PLCs, industrial computers, HMIs, drives, and distributed I/O systems.
• Manufacturing production networks
Supports communication across multiple automation devices within production lines and control systems.
• Machine-level networking
Connects controllers, sensors, and monitoring devices inside industrial machines and equipment cells.
• Hybrid copper and fiber networks
Supports both copper Ethernet cables and fiber optic connections for flexible network architecture.
• Control cabinet network management
Installed in automation cabinets to organize and manage Ethernet communication among industrial devices.
Advantages
• High port capacity
Provides 16 copper Ethernet ports, enabling connection of multiple industrial devices within one network switch.
• Flexible network interface options
Combo ports allow either standard copper connections or fiber optic SFP modules.
• Support for fiber communication
Dedicated SFP slots enable long-distance network connections across factory infrastructure.
• Industrial reliability
Built to support continuous operation in demanding automation environments.
• Efficient network expansion
High port density enables scalable network design for growing automation systems.
• Optimized for automation networks
Designed to integrate smoothly with industrial Ethernet communication architectures.
