Product Introduction

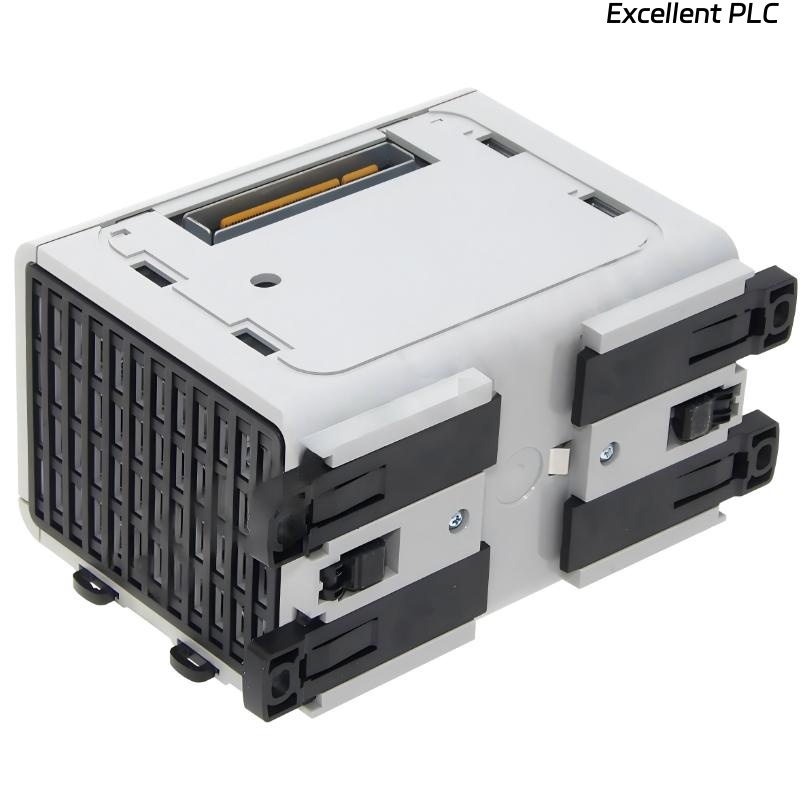

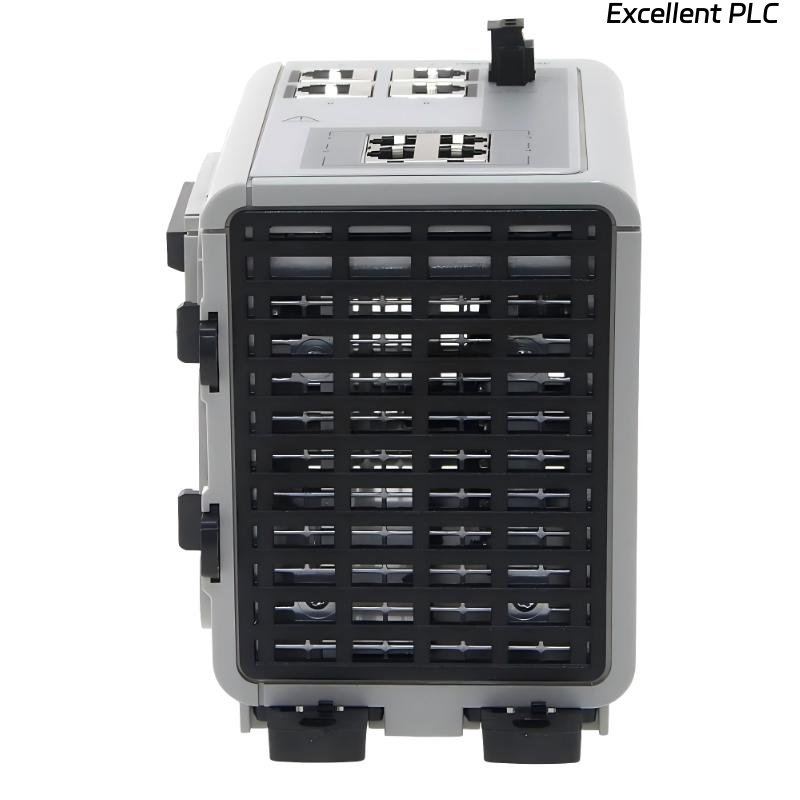

The Allen-Bradley 1783-MX04T04E Stratix 8000 Ethernet Managed Switch is an industrial managed Ethernet switch designed for high-performance networking in machine and plant-level automation environments. As part of the Allen-Bradley Stratix 8000 Industrial Ethernet Switch Series, it provides both standard Ethernet connectivity and Power over Ethernet (PoE) capabilities, enabling network devices to receive power and data over the same cable.

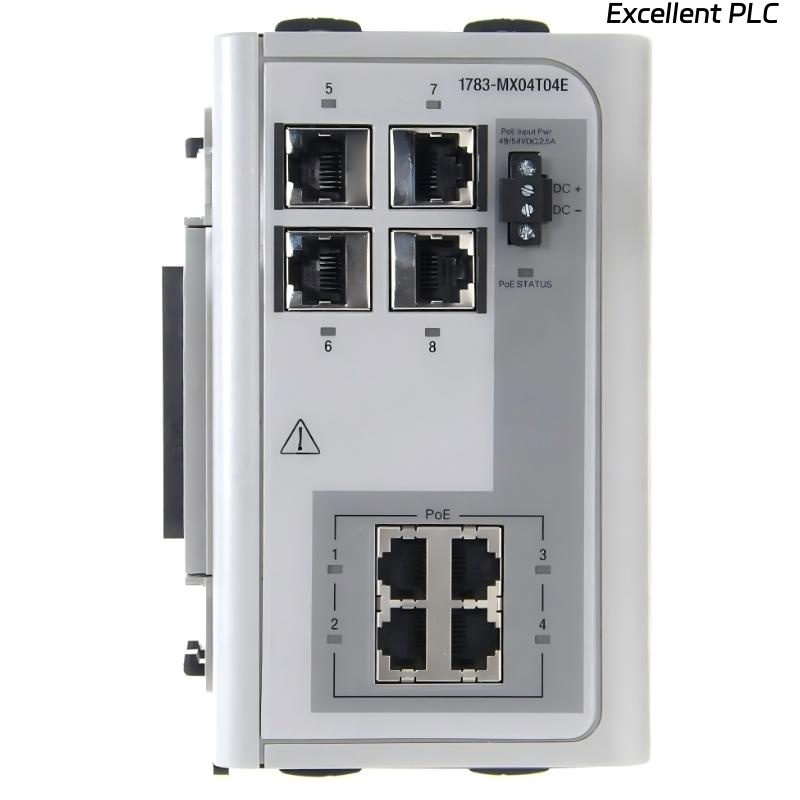

This switch features four 10/100 Mbps Base-T copper Ethernet ports along with four PoE ports, allowing connection of devices such as IP cameras, wireless access points, or industrial sensors directly without separate power supplies. Its expansion module design provides flexibility for growing automation networks while maintaining reliable industrial communication.
The 1783-MX04T04E is widely used in industrial automation systems, manufacturing lines, machine networking, and distributed control systems where robust connectivity, PoE support, and reliable Ethernet communication are essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-MX04T04E |
| Brand | Allen-Bradley |
| Product Type | Managed Industrial Ethernet Switch |
| Series | Stratix 8000 |
| Copper Ethernet Ports | 4 × 10/100 Mbps Base-T |
| PoE Ports | 4 × Power over Ethernet Ports |
| Expansion Module | Yes |
| Mounting Method | DIN Rail Mount |
| Application Type | Industrial Ethernet communication with PoE support |
| Dimensions | 148 × 98.1 × 117.5 mm |
| Weight | 0.9 kg |
Applications
• Machine-level automation networks
Connects PLCs, industrial computers, HMIs, drives, and PoE-enabled devices in automation systems.
• Industrial control cabinets
Installed in DIN rail panels to provide Ethernet and PoE connectivity for networked devices.
• PoE-supported device networking
Supplies power and data over a single cable to IP cameras, wireless access points, or sensors.
• Manufacturing production lines
Supports reliable communication and power distribution for devices along automated production lines.
• Expandable automation networks
Modular expansion allows the integration of additional Ethernet devices and PoE endpoints as networks grow.
Advantages
• Integrated PoE support
Delivers power and data over Ethernet, reducing the need for separate power wiring.
• Flexible network expansion
Supports expansion modules, enabling scalable industrial network architectures.
• Reliable industrial connectivity
Provides stable 10/100 Mbps Base-T communication for industrial automation devices.
• Compact DIN rail mounting
Facilitates installation within control cabinets and automation panels.
• Versatile device compatibility
Connects standard Ethernet devices alongside PoE-enabled industrial equipment.
• Optimized for industrial environments
Designed to operate reliably in factory and plant-level automation systems.
