Product Introduction

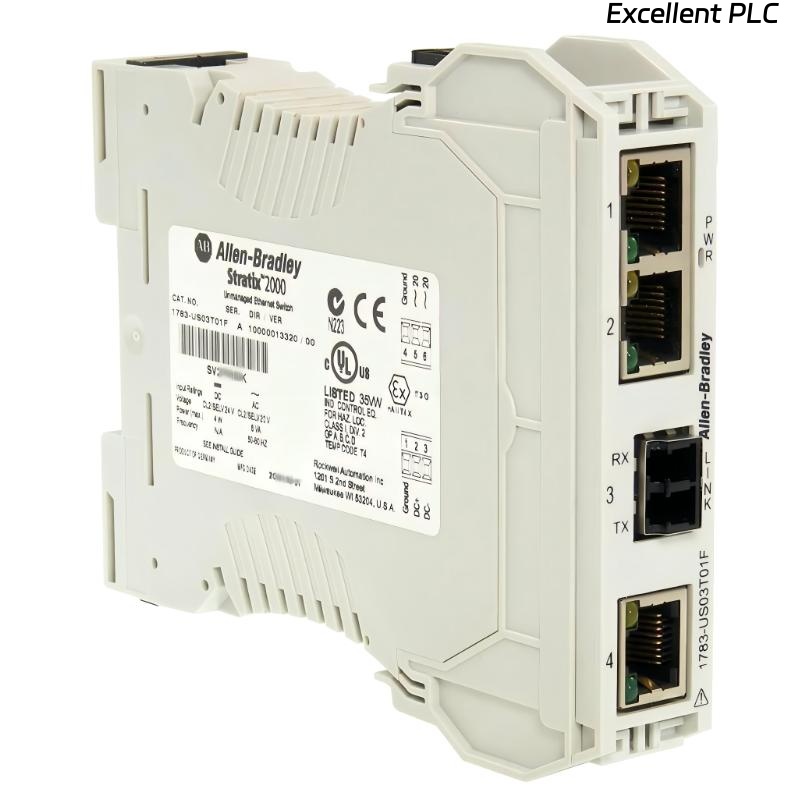

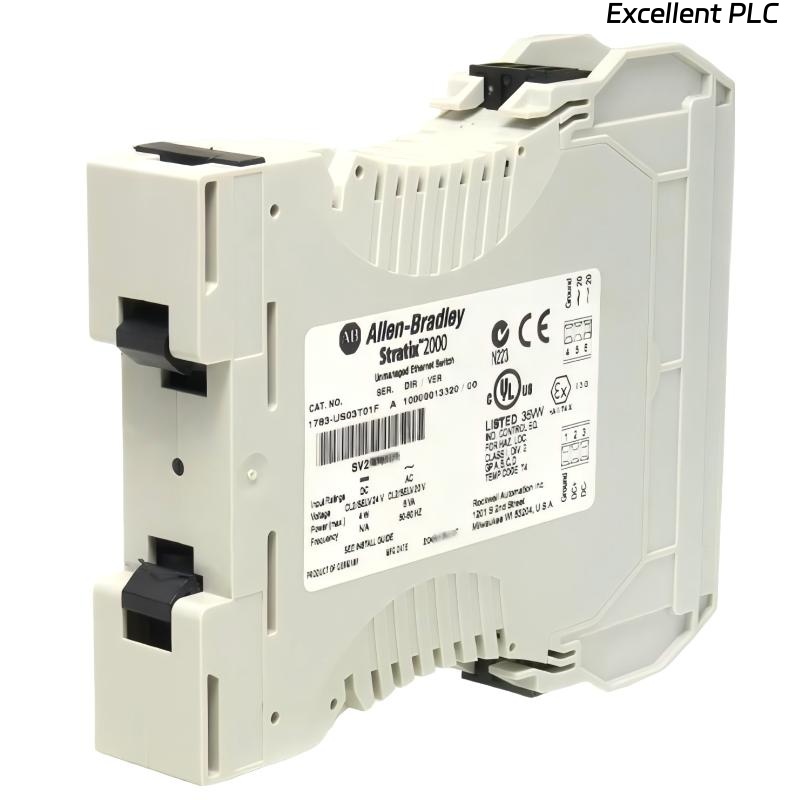

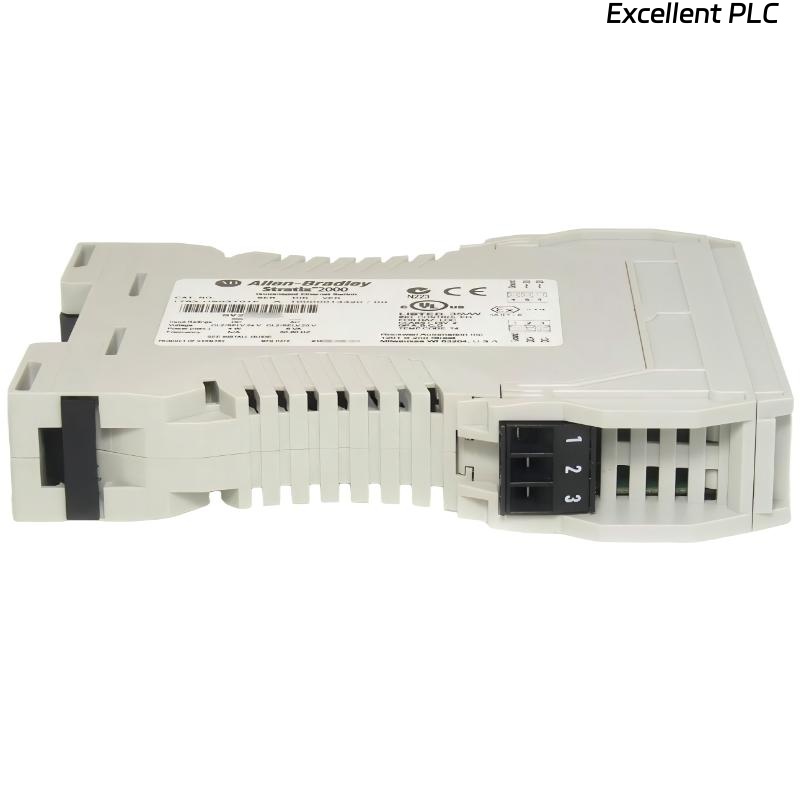

The Allen Bradley 1783-US03T01F Stratix 2000 Unmanaged EtherNet Switch is a small industrial Ethernet switch designed for compact automation networks. Manufactured by Rockwell Automation under the Allen-Bradley family, it belongs to the Stratix 2000 series, known for providing reliable plug-and-play Ethernet connectivity for industrial devices.
This model features three 10/100 Mbps copper Ethernet ports and one 100 Mbps multimode fiber port with an LC connector, enabling both standard Ethernet connections and longer-distance fiber communication. Its unmanaged architecture allows immediate operation without configuration, making it ideal for machine-level networks, small control cabinets, and distributed automation equipment where space is limited.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Unmanaged Ethernet Switch |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Series | Stratix 2000 |
| Copper Ports | 3 × 10/100 Mbps RJ45 Ports |
| Fiber Port | 1 × 100 Mbps Multimode Fiber (LC Connector) |
| Duplex Mode | Full / Half Duplex Supported |
| Switching Type | Layer 2 Unmanaged Switching |
| Power Input (AC) | 20 V AC |
| Power Input (DC) | 24 V DC |
| Mounting Style | DIN Rail |
| Housing Type | Industrial Metal Enclosure |
| Dimensions | 127.8 × 22.5 × 108 mm |
| Weight | 0.46 kg |
Applications
• Compact automation networks connecting PLCs, operator interfaces, and remote I/O modules in small machinery.
• Machine-level control cabinets where limited space requires small form-factor Ethernet switches.
• Industrial fiber uplinks linking devices over longer distances via the multimode fiber port.
• Data acquisition systems that need both copper and fiber connectivity for device monitoring.
• OEM machinery integration for machine builders who require small, reliable networking components.
• Factory floor networking connecting sensors, controllers, and monitoring equipment in tight spaces.
Advantages
• Plug-and-play operation, allowing immediate network connectivity without configuration.
• Mixed copper and fiber ports, providing both local and long-distance communication options.
• Compact form factor, suitable for installation in small control cabinets or machine panels.
• Flexible power input, supporting both 20 V AC and 24 V DC sources.
• Industrial-grade construction, ensuring reliable performance in electrically noisy environments.
• DIN rail mounting, allowing secure and easy installation alongside other automation components.
