Product Introduction

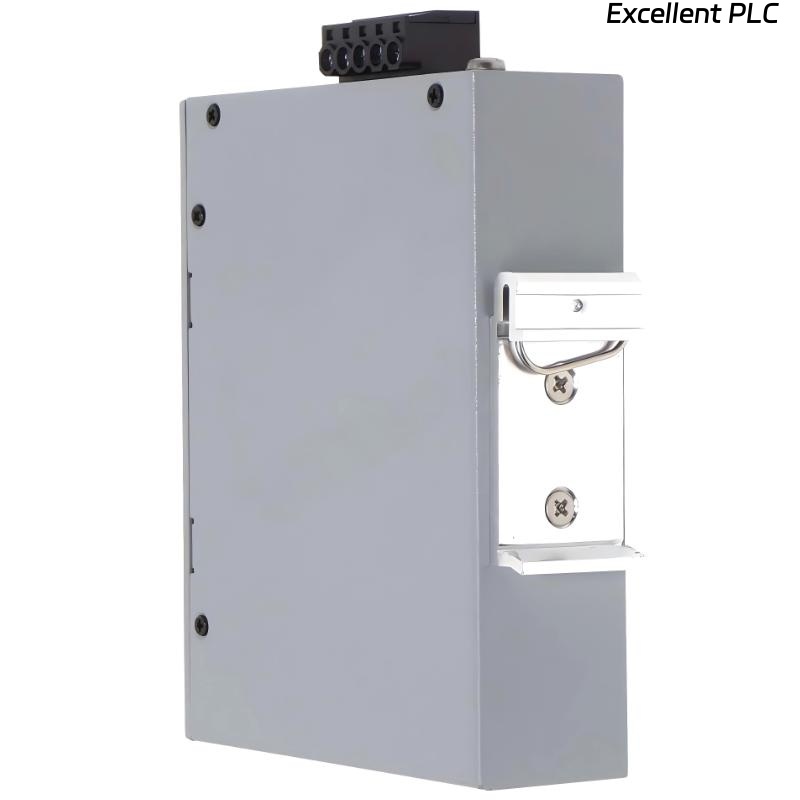

The Allen-Bradley 1783-US4T1F Stratix 2000 Unmanaged EtherNet Switch is a compact, unmanaged industrial Ethernet switch designed for small-scale machine and automation networks. Part of the Allen-Bradley Stratix 2000 Ethernet Switch Series, it provides both copper and fiber connectivity, enabling versatile network integration with minimal configuration requirements.
The device features four 10/100 Mbps copper ports and one 100 Mbps multimode fiber port, supporting full and half-duplex communication. It is powered via a wide input voltage range (10–24 V AC or 10–35 V DC), making it suitable for various industrial power environments. Its compact size and simple, unmanaged design allow quick deployment in control cabinets, machine-level networks, and small automation cells where robust and reliable communication is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-US4T1F |
| Brand | Allen-Bradley |
| Product Type | Unmanaged Industrial Ethernet Switch |
| Series | Stratix 2000 |
| Copper Ports | 4 × 10/100 Mbps (Full/Half Duplex) |
| Fiber Ports | 1 × 100 Mbps Multimode Fiber |
| Input Power Range | 10–24 V AC, 10–35 V DC |
| Mounting Method | DIN Rail or Panel Mount |
| Application Type | Small-scale industrial Ethernet networks |
| Dimensions | 114.5 × 29.6 × 76.8 mm |
| Weight | 0.24 kg |
Applications
• Small machine-level networks
Connects PLCs, HMIs, drives, and industrial devices within compact automation systems.
• Industrial fiber and copper networking
Supports hybrid copper/fiber communication for extended reach and secure data transmission.
• Control cabinet installations
Easily mounted inside automation panels and enclosures.
• Distributed automation cells
Provides reliable communication in localized industrial network segments.
• Plug-and-play industrial Ethernet
Unmanaged design allows immediate operation without configuration.
Advantages
• Hybrid connectivity
Provides four copper ports and one multimode fiber port, offering flexible network design.
• Compact industrial design
Small footprint allows installation in tight control panels.
• Wide input voltage compatibility
Operates on 10–24 V AC or 10–35 V DC, supporting various industrial power sources.
• Full/half duplex support
Copper ports support both full and half-duplex Ethernet communication.
• Plug-and-play operation
Unmanaged design ensures simple and fast deployment.
• Reliable industrial performance
Designed to withstand typical industrial environments and provide stable connectivity.
