Product Introduction

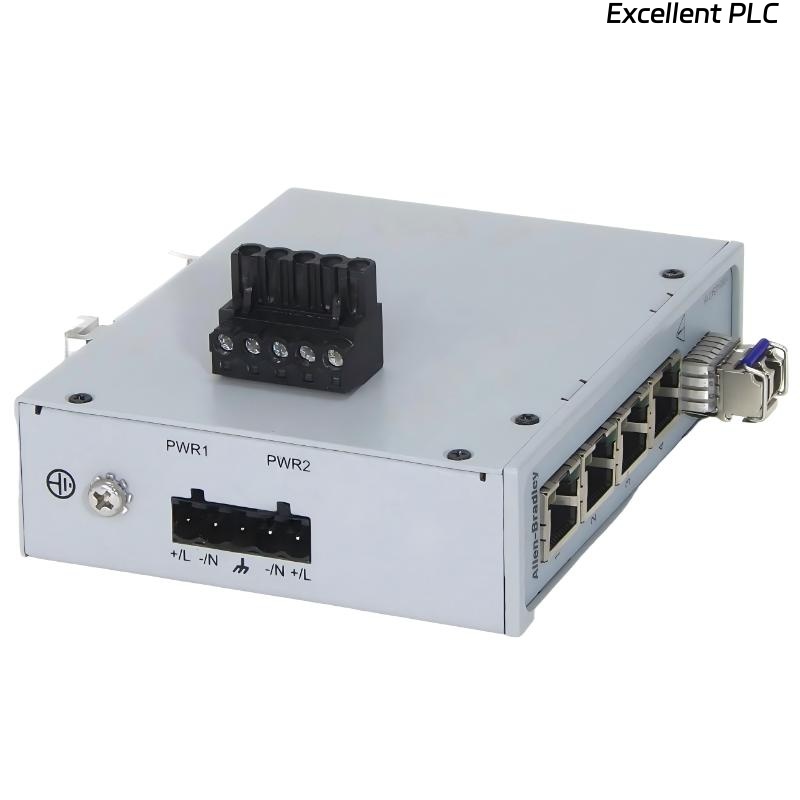

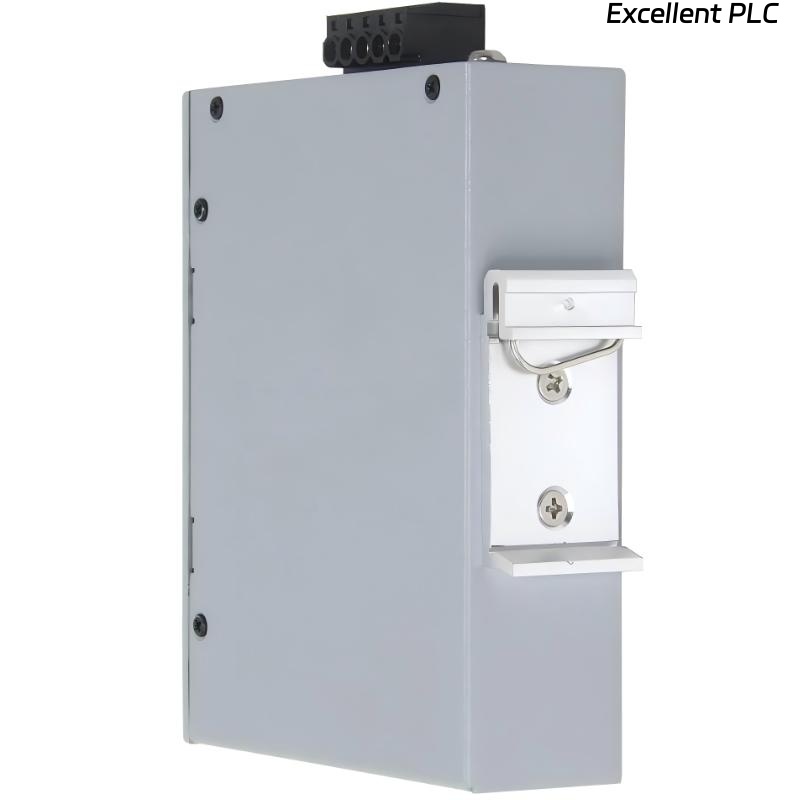

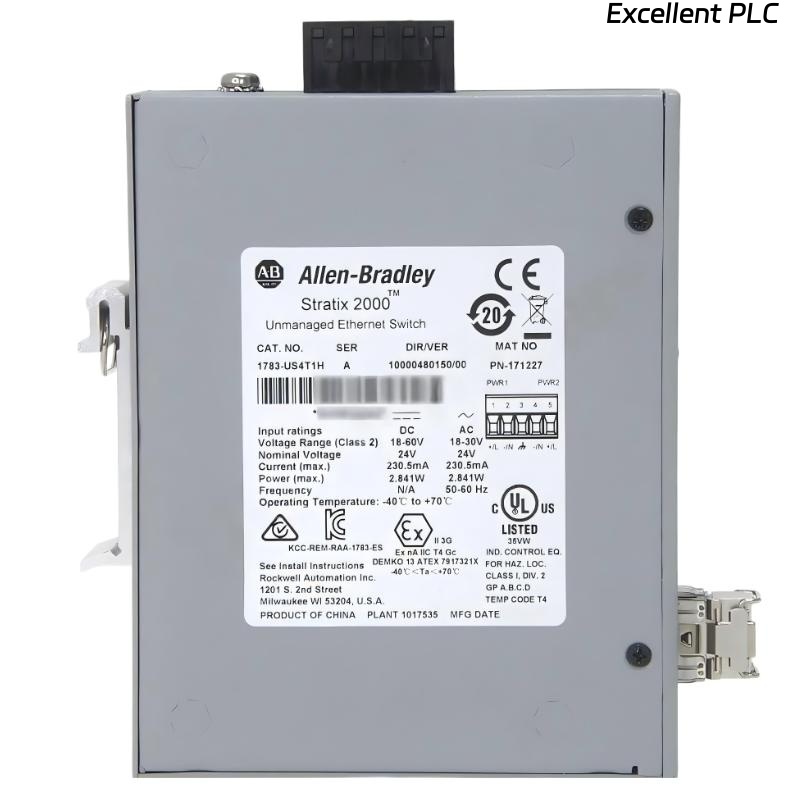

The Allen-Bradley 1783-US4T1H Stratix 2000 Unmanaged EtherNet Switch is an industrial unmanaged Ethernet switch that provides reliable, plug-and-play network connectivity for small-scale automation systems. Part of the Allen-Bradley Stratix 2000 Ethernet Switch Series, it is designed for compact machine-level networks requiring both copper and fiber connections.
This device features four 10/100 Mbps copper ports and one 100 Mbps singlemode fiber port, supporting full and half-duplex communication. The wide input power range of 10–24 V AC or 10–35 V DC ensures compatibility with diverse industrial power sources. The compact design and robust industrial performance make it suitable for control cabinets, machine networks, and distributed automation systems where reliable Ethernet communication is critical.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-US4T1H |
| Brand | Allen-Bradley |
| Product Type | Unmanaged Industrial Ethernet Switch |
| Series | Stratix 2000 |
| Copper Ports | 4 × 10/100 Mbps (Full/Half Duplex) |
| Fiber Ports | 1 × 100 Mbps Singlemode Fiber |
| Input Power Range | 10–24 V AC, 10–35 V DC |
| Mounting Method | DIN Rail or Panel Mount |
| Application Type | Small-scale industrial Ethernet networks |
| Dimensions | 114.5 × 29.6 × 76.8 mm |
| Weight | 1.36 kg |
Applications
• Machine-level automation networks
Connects PLCs, HMIs, drives, and industrial devices in compact automation systems.
• Industrial copper and fiber networking
Supports hybrid copper/fiber communication for extended network reach.
• Control cabinet integration
Designed for DIN rail or panel mounting in automation panels.
• Small distributed automation cells
Provides reliable communication in localized industrial network segments.
• Plug-and-play industrial Ethernet
Unmanaged design allows quick deployment without configuration.
Advantages
• Hybrid connectivity
Includes four copper ports and one singlemode fiber port for versatile networking.
• Compact industrial design
Small form factor allows installation in tight control panels.
• Wide input voltage range
Operates with 10–24 V AC or 10–35 V DC, compatible with varied industrial power.
• Full/Half duplex support
Copper ports support full and half-duplex Ethernet communication.
• Plug-and-play operation
Unmanaged switch ensures instant operation with no configuration needed.
• Reliable performance in industrial environments
Designed to maintain stable connectivity under typical factory conditions.
