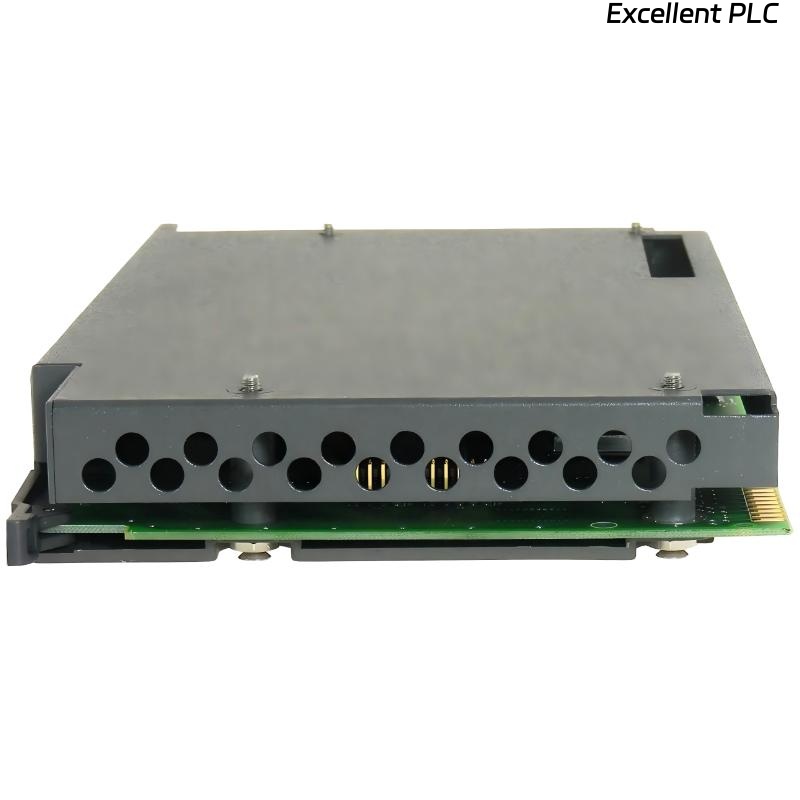

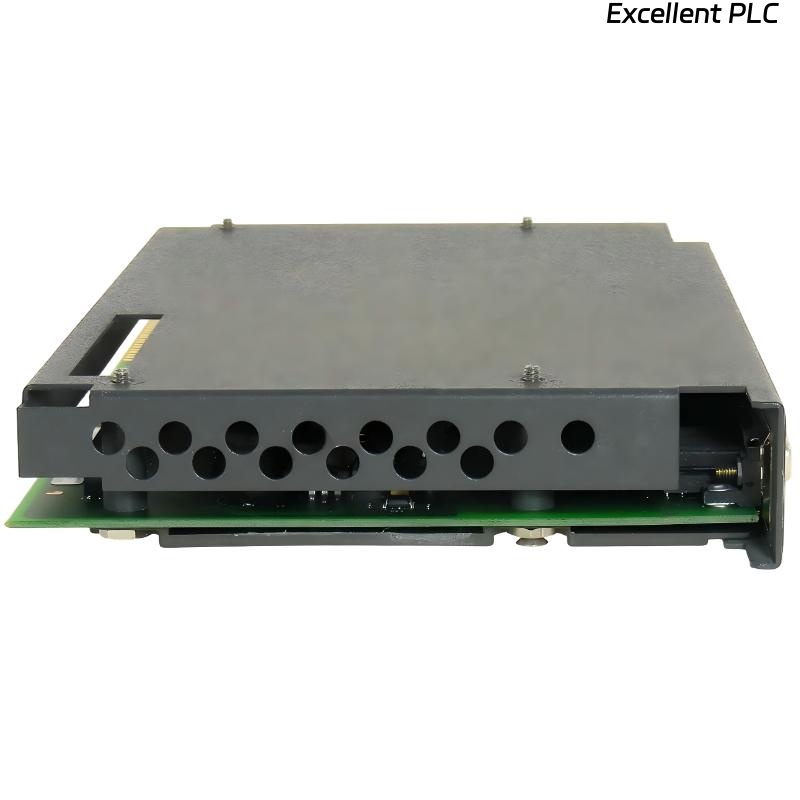

Allen Bradley 1785-ENET Ethernet Interface Module

Product Introduction

The Allen Bradley 1785-ENET Ethernet Interface Module is an industrial communication module designed to enable Ethernet connectivity for PLC-5 controllers. Developed by Rockwell Automation under the Allen-Bradley product family, this module allows PLC-5 processors to communicate with other controllers, supervisory systems, and industrial networks through Ethernet technology.

The 1785-ENET provides 10/100 Mbps Ethernet communication, allowing efficient data exchange between PLC systems and industrial devices such as HMIs, SCADA platforms, and programming workstations. Installed directly into the PLC-5 rack, the module enables reliable integration of legacy PLC-5 systems into Ethernet-based automation networks.

---

Product Specifications

---

Applications

• PLC-5 Ethernet networking, enabling controllers to communicate with plant-wide Ethernet systems.

• SCADA and monitoring systems, connecting PLC-5 processors with supervisory control platforms.

• Industrial automation networks, supporting communication between controllers, HMIs, and engineering workstations.

• Factory information systems, integrating PLC data into production monitoring and reporting systems.

• Control system upgrades, allowing legacy PLC-5 installations to operate on modern Ethernet networks.

• Remote programming and diagnostics, enabling engineers to access PLC-5 systems through Ethernet connections.

---

Advantages

• High-speed Ethernet communication, supporting 10/100 Mbps data transmission.

• Seamless PLC-5 integration, allowing legacy systems to connect to modern Ethernet networks.

• Multiple module support, up to four modules can be installed within a single system.

• Stable rack-mounted installation, ensuring reliable operation within PLC-5 chassis environments.

• Efficient power management, with controlled backplane current consumption.

• Industrial reliability, designed for continuous operation in demanding automation systems.

FAQ

1. What is the main function of the 1785-ENET module?
   It provides Ethernet connectivity for PLC-5 controllers, allowing them to communicate with other networked devices and systems.

2. What transmission speed does the module support?
   The module supports Ethernet communication speeds of 10 Mbps and 100 Mbps.

3. How many 1785-ENET modules can be installed in one system?
   Up to four modules can be installed within a single PLC-5 system.

4. What is the backplane current requirement?
   The module requires 1 Amp at 5 VDC from the PLC backplane.

5. What is the power dissipation of the module?
   The module has a power dissipation rating of approximately 5 watts during normal operation.

6. Which controllers are compatible with this module?
   It is designed specifically for PLC-5 controllers installed in PLC-5 racks.

7. Can it be used for remote programming and diagnostics?
   Yes, engineers can access PLC-5 systems through Ethernet for programming, monitoring, and troubleshooting.

8. Does it support communication with SCADA systems?
   Yes, it allows PLC-5 controllers to exchange data with SCADA and monitoring software.

9. Is it suitable for upgrading legacy control systems?
   Yes, the module allows existing PLC-5 systems to integrate with Ethernet-based industrial networks.

10. What type of installation does the module require?
    It installs directly into a PLC-5 rack slot and connects to the controller through the backplane.
