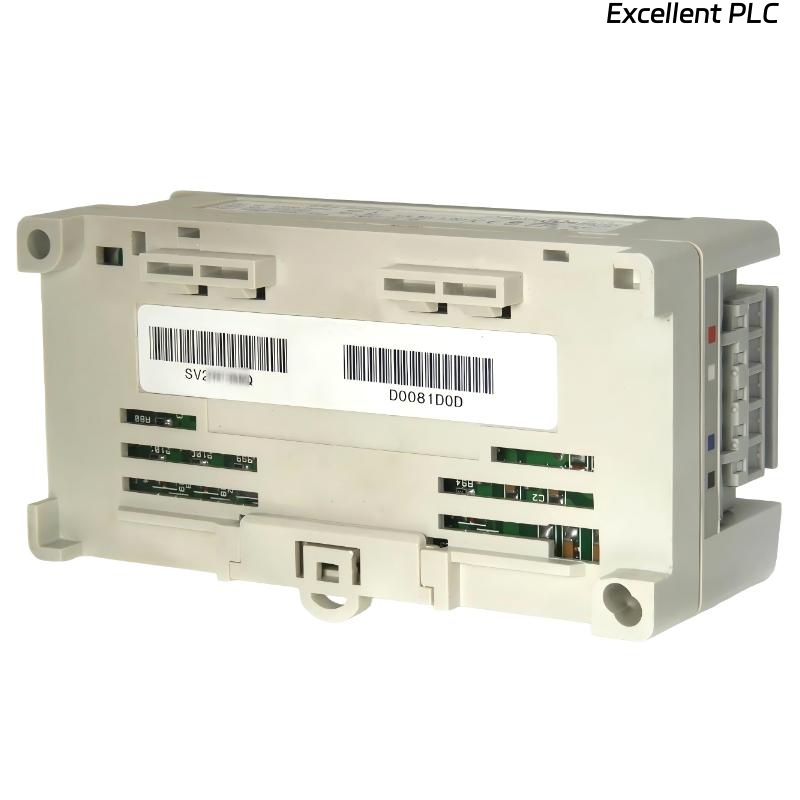

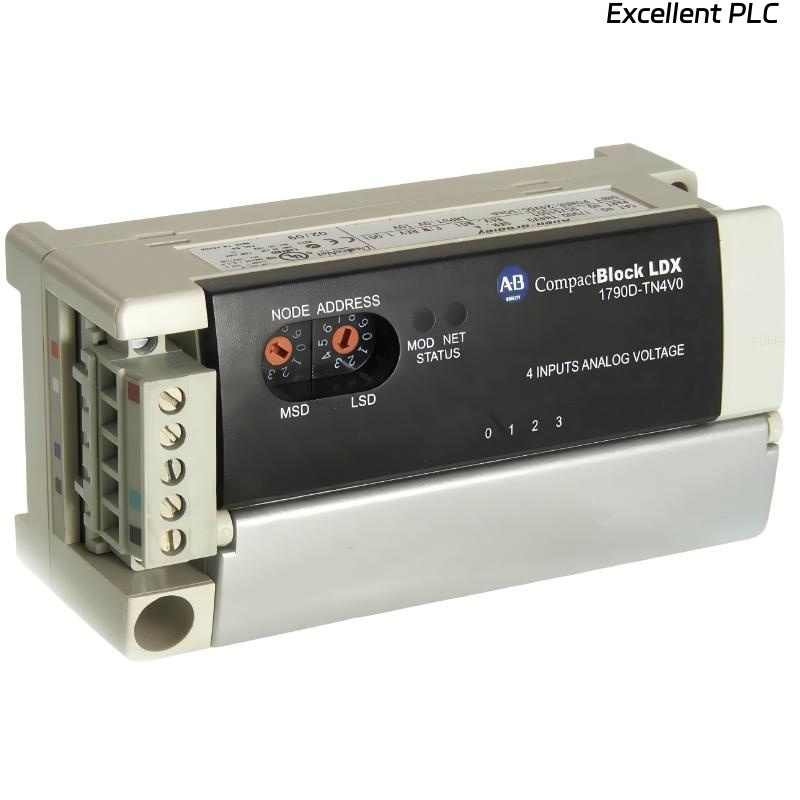

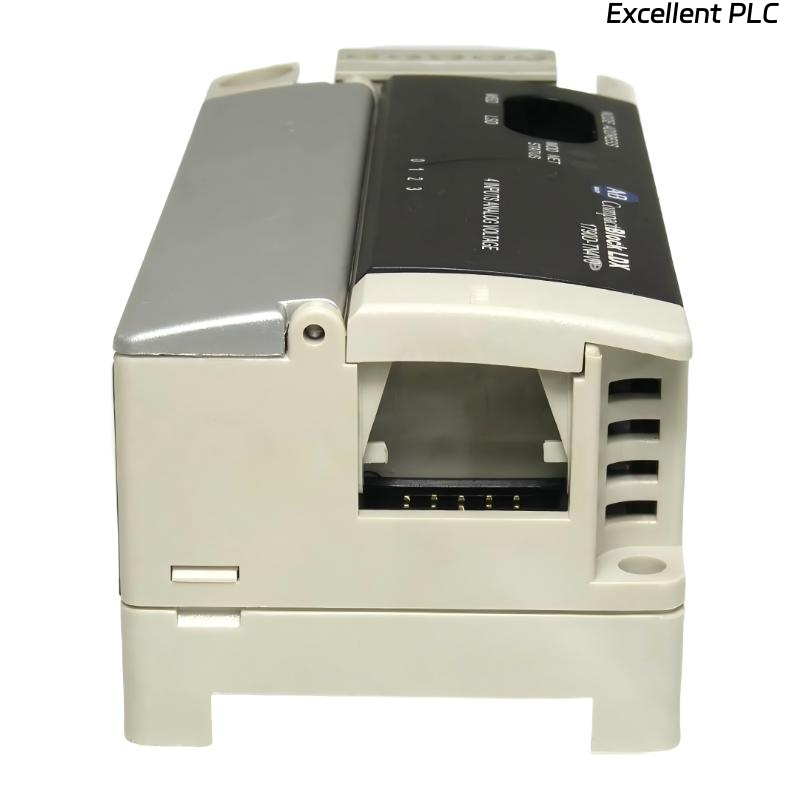

Allen Bradley 1790D-TN4V0 CompactBlock LDX I/O Base Block Module

Product Introduction

The Allen-Bradley 1790D-TN4V0 CompactBlock LDX I/O Base Block Module is a compact analog input module designed for distributed industrial automation systems. Developed by Rockwell Automation under the Allen-Bradley product family, the module belongs to the CompactBlock LDX series and provides reliable analog signal acquisition for machine-level control applications.

The module features 4 single-ended analog input channels capable of receiving 0–10 VDC signals from industrial sensors and measurement devices. These inputs allow the control system to monitor variable process values such as position, pressure, speed, or level signals generated by analog transmitters.

Designed for DeviceNet distributed networks, the 1790D-TN4V0 enables analog data to be collected close to field equipment and transmitted to the control system through the network. This architecture reduces long analog wiring runs and improves overall system installation efficiency.

With its compact size, open-style construction, and IP20 enclosure rating, the module is suitable for installation inside industrial control cabinets. The combination of reliable analog measurement capability and compact mechanical design makes the module suitable for many industrial monitoring and automation applications.

---

Product Specifications

---

Applications

• Industrial Process Monitoring
Used to acquire analog signals from transmitters measuring pressure, temperature, or level values.

• Machine Automation Systems
Collects variable sensor signals such as position feedback or speed reference signals.

• DeviceNet Distributed Control Systems
Provides analog signal acquisition for decentralized automation architectures.

• OEM Equipment Integration
Installed in machine control panels where compact analog input modules are required.

• Manufacturing Process Control
Used to monitor process variables within automated production equipment.

• Factory Automation Monitoring
Captures analog data from sensors used in industrial monitoring and control systems.

---

Advantages

• Compact Mechanical Design
Small form factor allows installation in limited control panel space.

• Reliable Analog Signal Acquisition
Four analog input channels provide accurate monitoring of voltage-based sensor signals.

• DeviceNet Network Integration
Designed for distributed I/O architectures using DeviceNet communication.

• Reduced Wiring Complexity
Analog signals can be collected close to sensors, minimizing long cable runs.

• Flexible Industrial Applications
Compatible with many analog measurement devices used in industrial automation.

• Stable Industrial Performance
Designed for continuous operation in demanding factory environments.

FAQ

1. What types of sensors can be connected to the analog input channels?
   The module can receive signals from industrial sensors and transmitters that provide standard 0–10 V analog output signals.

2. What does single-ended analog input mean in this module?
   Single-ended inputs measure the signal voltage relative to a common reference ground rather than using differential measurement.

3. How does the module transmit analog data to the control system?
   The module sends measured analog values through the DeviceNet network to the connected automation controller.

4. What types of industrial signals are typically measured using this module?
   Typical signals include pressure transmitter outputs, position sensors, speed reference signals, and other analog process measurements.

5. How does the module ensure stable analog signal processing?
   Internal signal conditioning circuits help filter noise and stabilize voltage readings before transmission to the control system.

6. Can multiple analog sensors be connected simultaneously?
   Yes. The module supports four independent analog input channels that can operate at the same time.

7. How are analog sensors wired to the module?
   Sensors are connected to the module through terminal connections using standard industrial wiring practices.

8. Is the module suitable for distributed automation systems?
   Yes. It is designed to collect analog signals locally and transmit them over a DeviceNet network.

9. What kind of automation equipment typically uses this module?
   The module is commonly used in packaging machines, conveyor systems, and automated production equipment that require analog monitoring.

10. How does the module help reduce installation complexity?
    By placing the analog input module close to sensors, long analog cable runs can be minimized, improving signal reliability and installation efficiency.
