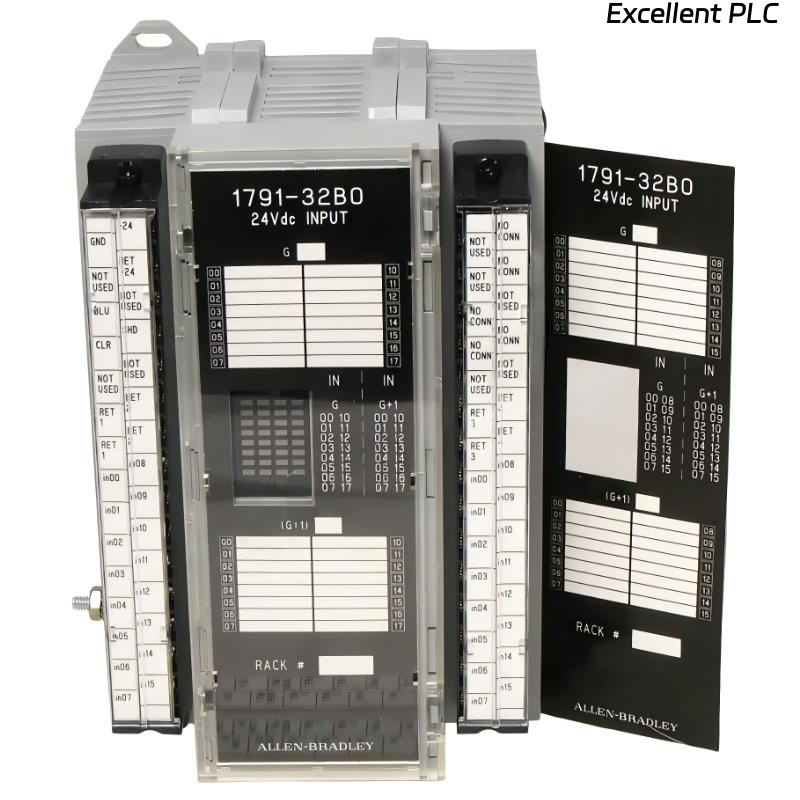

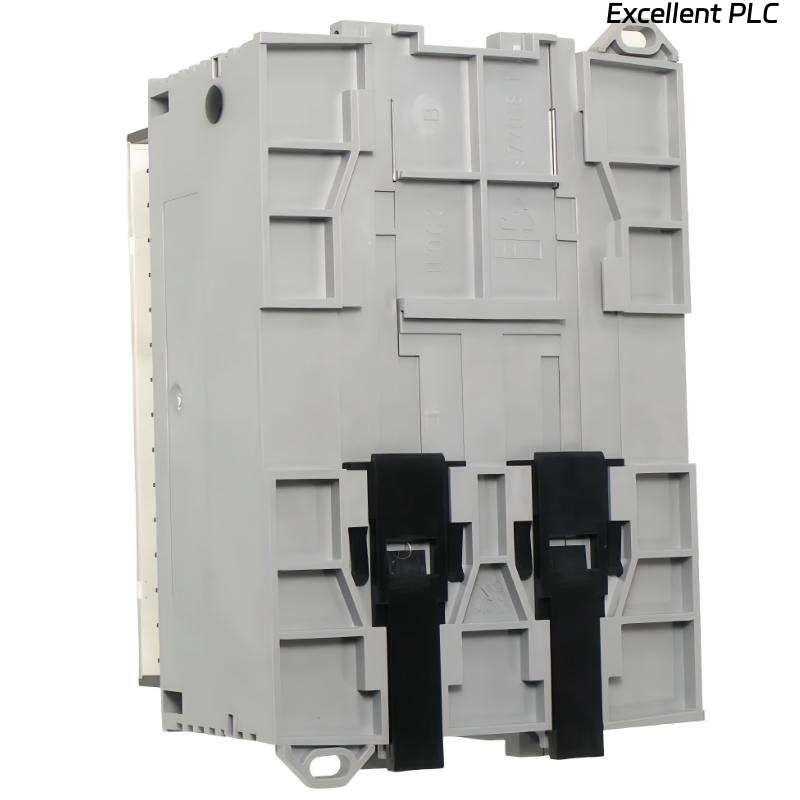

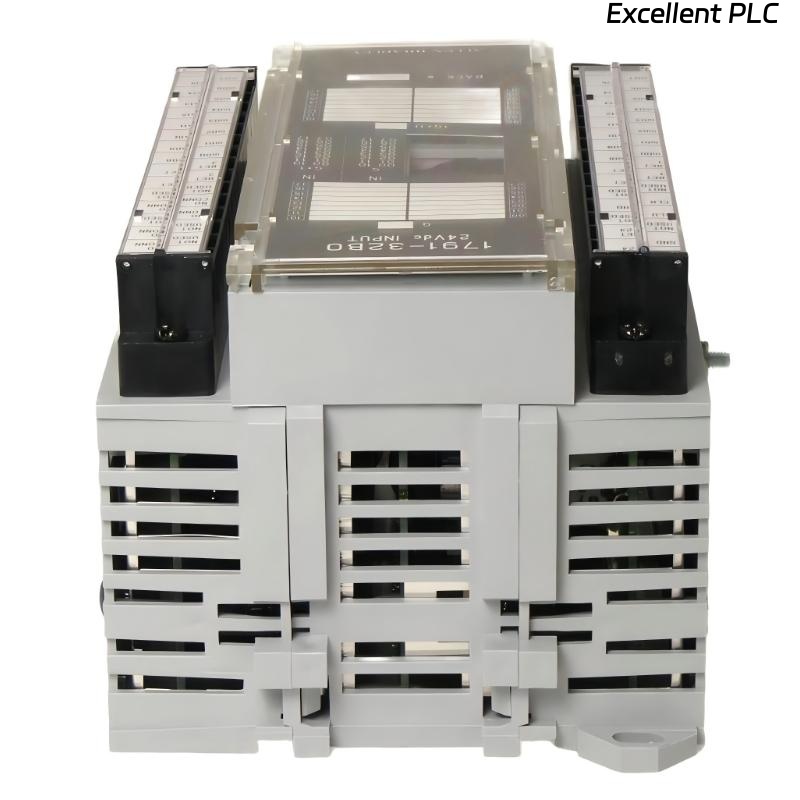

Allen Bradley 1791-32B0 Block I/O Input Module

Product Introduction

The Allen-Bradley 1791-32B0 Block I/O Input Module is a high-density digital input module designed for industrial automation systems that require reliable and large-scale signal acquisition. Manufactured by Rockwell Automation and part of the Allen-Bradley Block I/O series, this module is widely used in machine control and process monitoring applications.

It provides 32 digital input channels, organized into 4 groups of 8, allowing efficient connection and management of multiple field devices such as sensors, switches, and contact inputs. The module operates at a nominal voltage of 24 VDC, with a flexible input voltage range of 10–30 VDC, ensuring compatibility with standard industrial signals.

With its integrated block design and external power support, the 1791-32B0 offers simplified installation, stable performance, and efficient signal processing in demanding industrial environments.

---

Product Specifications

---

Applications

• Large-Scale Machine Automation
Captures multiple input signals from sensors and switches in complex machinery.

• Production and Assembly Lines
Monitors operational status across multiple stations simultaneously.

• Material Handling Systems
Collects signals from conveyors, detectors, and sorting equipment.

• Process Monitoring Systems
Provides real-time input data for industrial process control.

• OEM Equipment Integration
Ideal for machines requiring high input channel density in a compact module.

• Factory Automation Systems
Supports centralized signal acquisition in automated manufacturing environments.

---

Advantages

• High Input Density
Provides 32 input channels in one module, reducing hardware requirements.

• Flexible Voltage Range
Supports a wide 10–30 VDC input range for compatibility with various devices.

• Grouped Channel Structure
Organized into four groups for easier wiring and signal management.

• Reliable Signal Detection
Designed with stable thresholds for accurate input recognition.

• Simplified Installation
Integrated block design reduces wiring complexity and installation time.

• Industrial-Grade Reliability
Ensures consistent operation in demanding industrial conditions.

FAQ

1. What type of signals can this module process?
   This module is designed to process standard DC digital signals from industrial field devices, including proximity sensors, limit switches, and push buttons. It reliably detects ON and OFF states, providing accurate input information to PLCs.

2. How many input channels does the module provide, and how are they organized?
   It provides 32 digital input channels, divided into 4 groups of 8 channels each. This grouping helps organize wiring and allows easier identification of signals in complex systems.

3. What is the nominal operating voltage and acceptable input range?
   The module operates at a nominal voltage of 24 VDC. It accepts input signals ranging from 10–30 VDC, ensuring compatibility with most industrial sensors and switches.

4. What is the input current requirement for each channel?
   Each input channel draws approximately 11 mA at the maximum voltage of 30 VDC, making it energy-efficient while maintaining reliable detection.

5. Why is external power required, and what is its voltage range?
   External power supports stable operation of the input circuitry and ensures consistent signal processing. The external voltage range is 19.2–30 VDC.

6. What types of devices can be connected to this module?
   Common devices include proximity switches, mechanical limit switches, push buttons, and other discrete signal-generating devices suitable for 24 VDC operation.

7. How does the module ensure accurate and reliable signal detection?
   The module is designed with defined ON and OFF voltage thresholds and low current requirements to ensure accurate detection and reduce the risk of false signals in noisy industrial environments.

8. Can this module be used in distributed I/O architectures?
   Yes, it is suitable for decentralized I/O configurations, allowing integration into distributed control networks while maintaining reliable input acquisition.

9. What industries and systems typically use this module?
   It is commonly used in PLC-based automation systems across industries such as manufacturing, material handling, packaging, and process control.

10. How does the module simplify installation and maintenance?
    Its integrated block design consolidates multiple input channels into a single unit, reducing wiring complexity, saving panel space, and facilitating easier troubleshooting and maintenance.
