Allen Bradley 1791-8BC Block I/O Module

Product Introduction

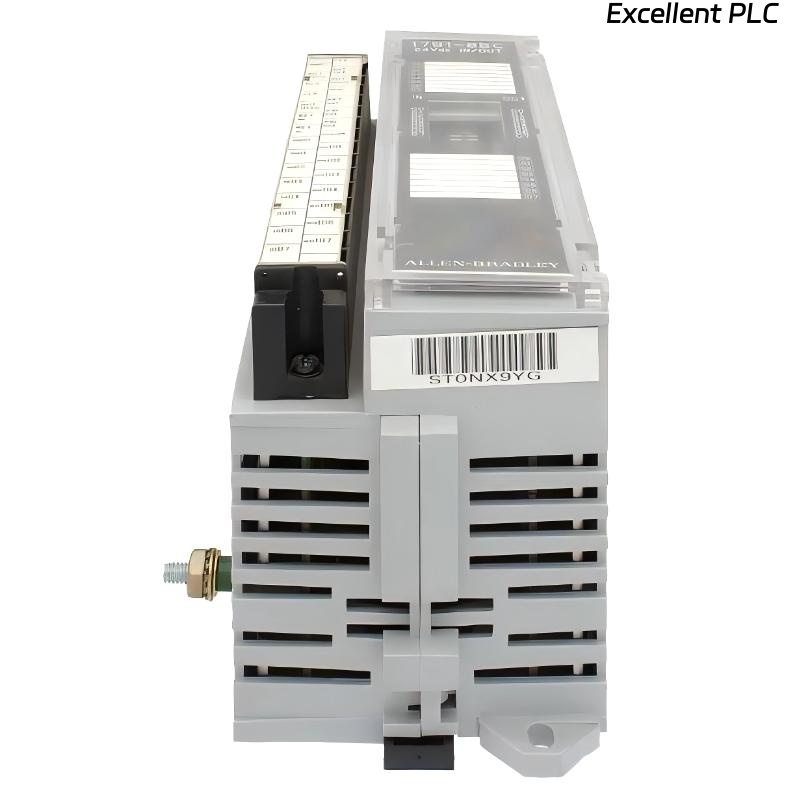

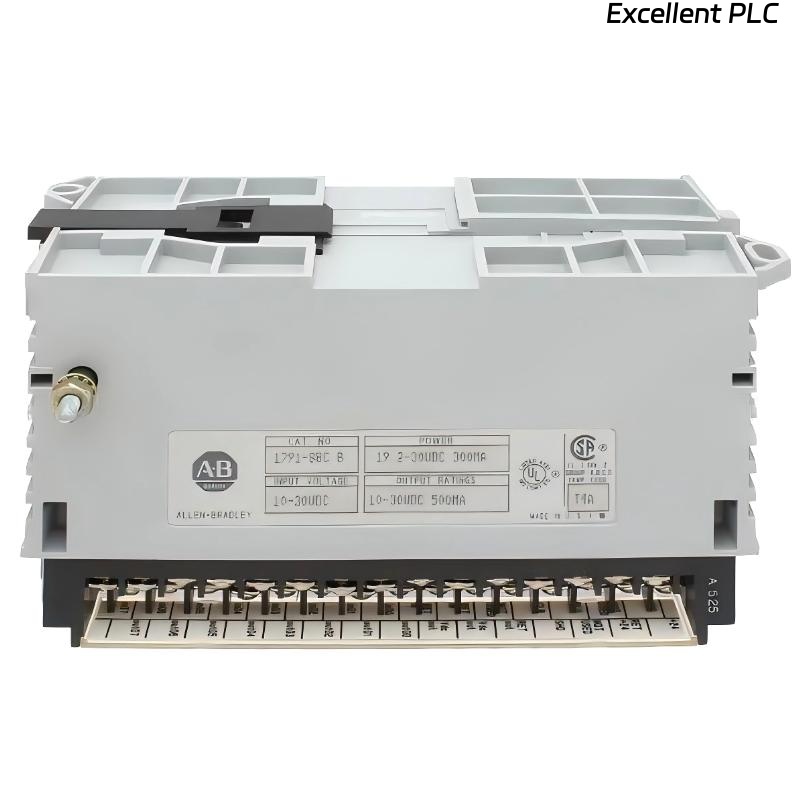

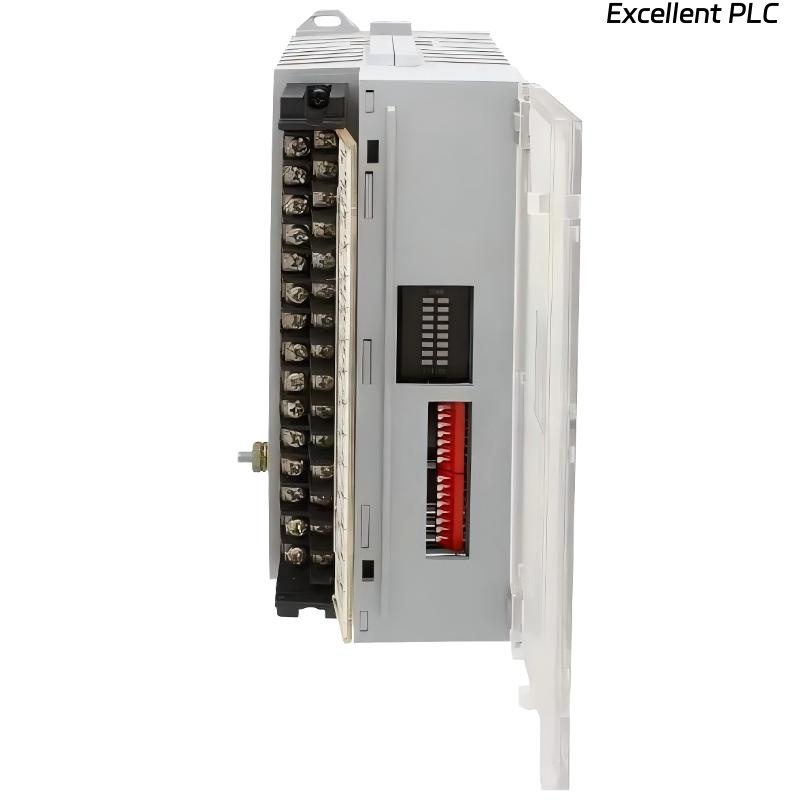

The Allen-Bradley 1791-8BC Block I/O Module is a compact mixed digital input/output module designed for industrial automation applications requiring both monitoring and control in a single unit. Manufactured by Rockwell Automation and part of the Allen-Bradley Block I/O series, this module is widely used in machine-level control and distributed automation systems.

It provides 8 digital inputs and 8 digital outputs, operating within a 10–30 VDC voltage range, with stable operation supported by an external 19.2–30 VDC power supply. The 1791-8BC is designed to simplify installation while delivering reliable performance in demanding industrial environments, making it ideal for compact panels and systems requiring combined I/O functionality.

---

Product Specifications

---

Applications

• Machine-Level Automation
Collects sensor input signals and controls actuators such as relays and solenoids in compact machinery.

• Production and Assembly Lines
Monitors equipment status while controlling output devices across multiple stations.

• Material Handling Systems
Manages inputs from sensors and drives outputs for conveyors and signaling devices.

• Process Automation Applications
Provides reliable control and monitoring for small to medium industrial processes.

• OEM Equipment Integration
Ideal for compact machines needing combined input/output capability.

• Factory Automation Systems
Supports centralized and reliable I/O management in automated production environments.

---

Advantages

• Integrated Input/Output
Combines 8 inputs and 8 outputs into a single module, minimizing additional hardware requirements.

• Wide DC Voltage Compatibility
Supports 10–30 VDC operation for both inputs and outputs, ensuring compatibility with most industrial devices.

• Simplified Wiring and Installation
Block I/O design reduces complexity and installation time.

• External Power Support
Ensures stable operation and reliable performance for connected field devices.

• Compact Module Design
Optimizes panel space while providing full I/O functionality.

• Industrial-Grade Reliability
Engineered for continuous operation in demanding environments.

FAQ

1. What type of signals can this module handle?
   It handles standard DC digital signals from sensors, switches, and other discrete devices, providing both input detection and output control.

2. How many input and output channels are available?
   The module provides 8 inputs and 8 outputs, allowing mixed signal control in a compact form factor.

3. What is the voltage range for inputs and outputs?
   Both inputs and outputs operate within 10–30 VDC, ensuring compatibility with industrial devices.

4. What is the function of the external power supply?
   The external supply provides stable voltage to ensure reliable operation of both input and output circuits.

5. What is the maximum current draw of the module?
   The maximum current draw is 300 mA under full load conditions.

6. What devices can be connected to the outputs?
   Outputs can drive relays, solenoids, indicator lamps, and other 10–30 VDC field devices.

7. How does the module simplify installation in control panels?
   Its integrated block design combines multiple I/O channels in one unit, reducing wiring complexity and saving panel space.

8. Is this module suitable for small or medium industrial automation systems?
   Yes, it is ideal for compact machinery and distributed control applications.

9. How does the module ensure accurate signal detection and output control?
   It uses stable input thresholds and reliable output circuitry to maintain consistent operation.

10. Can this module be used in OEM machine designs?
    Yes, its compact design and combined I/O functionality make it suitable for OEM integration.
