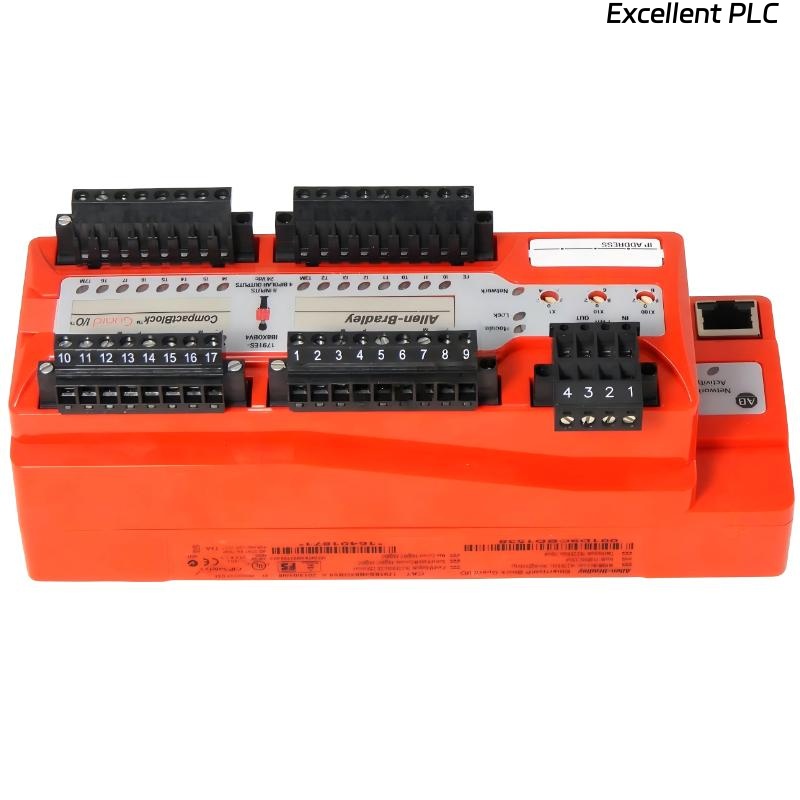

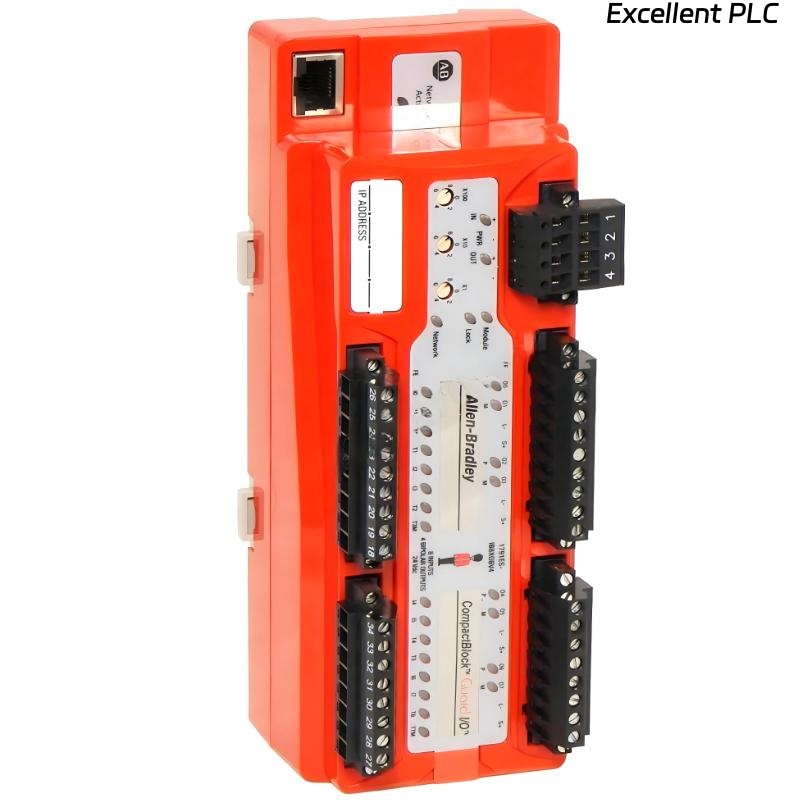

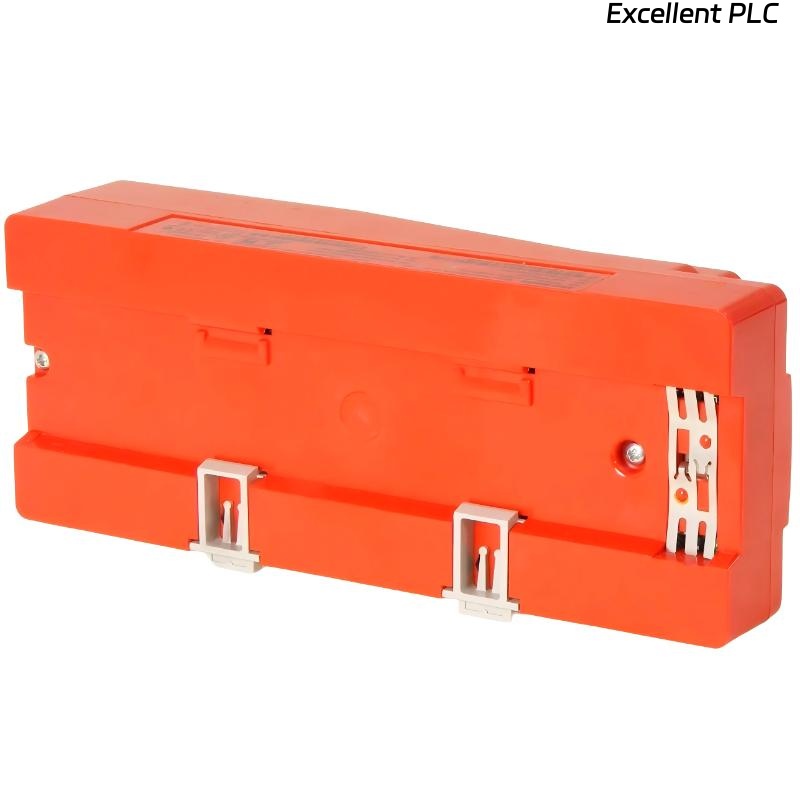

Allen Bradley 1791ES-IB8XOBV4 EtherNet/IP Safety CompactBlock Input Module

Product Introduction

The Allen-Bradley 1791ES-IB8XOBV4 EtherNet/IP Safety CompactBlock I/O Module is a compact, safety-rated distributed I/O solution designed for modern industrial automation systems that require both safety input monitoring and safe output control. As part of the CompactBlock Guard I/O family, this module integrates input and output functionality into a single device, reducing system complexity and improving installation efficiency.

It provides 8 isolated safety inputs and 4 dual-channel solid-state outputs, designed to meet the requirements of functional safety applications. The dual-channel output structure enhances reliability by supporting redundancy and monitoring, which is essential in safety-critical control systems. With a rated output current of 250 mA per channel and 24 VDC operation, it is suitable for driving safety relays and interfacing with control elements.

Featuring built-in EtherNet/IP Safety communication, the module enables high-speed, secure data exchange with safety controllers, making it ideal for distributed safety architectures where performance, diagnostics, and flexibility are critical.

---

Product Specifications

---

Applications

• Machine safety systems – Used for emergency stop circuits, safety interlocks, and protective guarding systems

• Automated production lines – Enables distributed safety monitoring and control across multiple stations

• Robotic cells – Supports safe control of actuators and monitoring of safety devices in robotic applications

• Packaging and material handling – Ensures safe operation in systems with human-machine interaction

• Process control environments – Provides reliable safety signal handling in industrial processes

---

Advantages

• Integrated safety I/O design – Combines isolated inputs and dual-channel outputs in one compact module

• Dual-channel output structure – Provides enhanced safety redundancy and fault detection capability

• EtherNet/IP Safety communication – Enables fast, secure, and reliable safety data transmission

• Compact and space-saving design – Ideal for installations where panel space is limited

• Improved system diagnostics – Supports monitoring and fault detection through network communication

• Reduced wiring and installation effort – Distributed I/O architecture simplifies system layout

FAQ

1. What is the purpose of isolated safety inputs?
   They provide electrical isolation to improve noise immunity and ensure reliable signal detection in industrial environments.

2. What does dual-channel output mean?
   It means each output uses two independent channels for redundancy, improving safety integrity.

3. What types of devices can be connected to the outputs?
   Outputs can control safety relays, contactors, and other safety-rated actuators within current limits.

4. Is this module suitable for safety-critical applications?
   Yes, it is specifically designed for functional safety systems.

5. What network protocol does this module use?
   It uses EtherNet/IP Safety for communication with safety controllers.

6. What is the maximum output current?
   Each output channel can provide up to 250 mA.

7. Can the module be used in distributed control systems?
   Yes, it is designed for distributed safety architectures.

8. Does the module support diagnostics?
   Yes, it provides status monitoring and fault diagnostics through the network.

9. What type of power supply is required?
   A 24 VDC industrial power supply is required.

10. How does this module improve system safety?
    It enhances reliability through isolated inputs, dual-channel outputs, and integrated diagnostics.
