Allen Bradley 1794-APBDPV1 Flex I/O Profibus DPV1 Adapter Module

Product Introduction

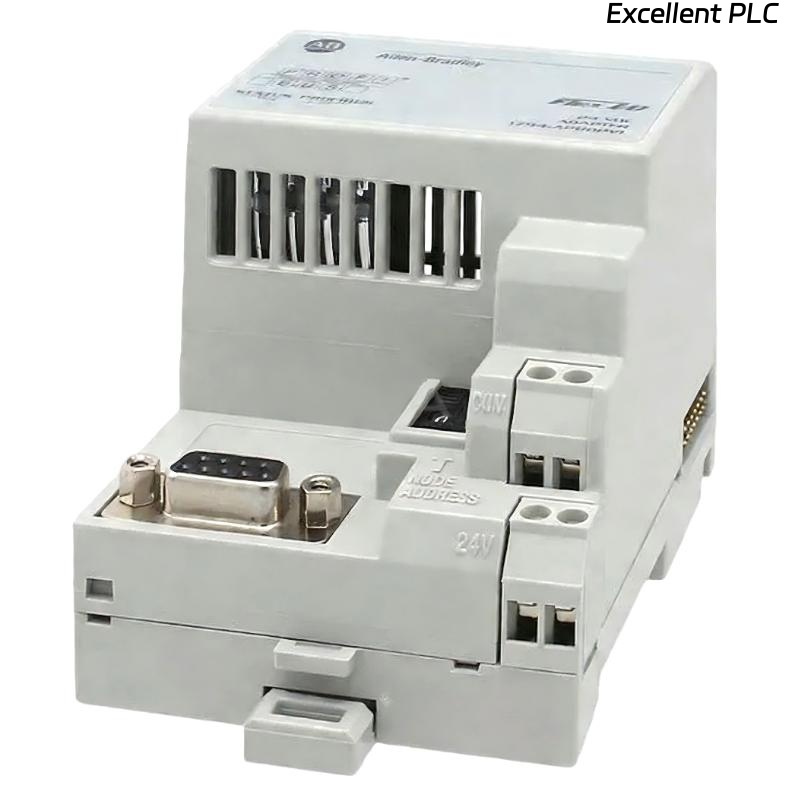

The Allen-Bradley 1794-APBDPV1 Flex I/O PROFIBUS DPV1 Adapter Module is an advanced communication interface designed to integrate Flex I/O systems into a PROFIBUS DPV1 network. It provides seamless connectivity between distributed I/O modules and PROFIBUS DP/DPV1 master controllers, enabling both cyclic and acyclic data exchange required in modern automation systems.

Unlike standard DP adapters, the DPV1 version supports enhanced diagnostics and parameterization, making it suitable for more complex control environments. The module interacts directly with the Flex I/O backplane, managing communication between field devices and higher-level control systems with high reliability.

Powered by a 24 VDC supply, and designed with an IP20 open-style enclosure, the 1794-APBDPV1 supports DIN rail mounting for easy installation. Its compact form factor and compatibility with PROFIBUS infrastructure make it ideal for systems requiring advanced communication, flexibility, and scalable I/O integration.

---

Product Specifications

---

Applications

• Advanced PROFIBUS systems – Enables integration with PROFIBUS DPV1 networks requiring both cyclic and acyclic communication

• Process automation – Supports parameterization, diagnostics, and monitoring in complex industrial processes

• Manufacturing systems – Provides reliable communication between controllers and distributed I/O modules

• OEM machine building – Offers flexible and scalable communication solutions for modern machinery

• Distributed control architectures – Connects remote I/O modules efficiently across PROFIBUS networks

---

Advantages

• DPV1 functionality – Supports advanced diagnostics and acyclic data exchange beyond standard PROFIBUS DP

• Seamless integration – Interfaces directly with PROFIBUS DP/DPV1 masters and Flex I/O backplane

• Flexible system expansion – Enables modular addition of I/O without major system redesign

• Compact and easy installation – DIN rail mounting and small footprint simplify panel integration

• Reliable industrial design – Suitable for continuous operation in automation environments

• Wide compatibility – Works with standard PROFIBUS DP and DPV1 controllers

FAQ

1. What is the difference between DP and DPV1 in this module?
   DPV1 adds support for acyclic communication, allowing advanced diagnostics, parameterization, and configuration in addition to standard cyclic data exchange.

2. What type of network does this adapter support?
   It supports PROFIBUS DP and DPV1 networks, making it suitable for both standard and advanced communication requirements.

3. How does the module interact with Flex I/O modules?
   It communicates directly with the Flex I/O backplane, acting as a bridge between the PROFIBUS network and connected I/O modules.

4. What is the required power supply for operation?
   The module operates on a 24 VDC power supply, which is standard in most industrial control systems.

5. Is the module compatible with standard PROFIBUS masters?
   Yes, it is compatible with both standard PROFIBUS DP masters and DPV1-enabled controllers.

6. What installation method does the module use?
   It is designed for DIN rail mounting, making installation straightforward in control cabinets.

7. What type of enclosure does the module have?
   It features an IP20 open-style enclosure, suitable for protected environments inside panels.

8. Can it be used in distributed I/O systems?
   Yes, it is specifically designed for distributed I/O architectures using PROFIBUS networks.

9. What are typical use cases for this adapter?
   It is commonly used in process automation, manufacturing systems, and applications requiring detailed diagnostics.

10. Does the module support system scalability?
    Yes, it allows additional Flex I/O modules to be integrated easily, supporting flexible and scalable system design.
