Product Introduction

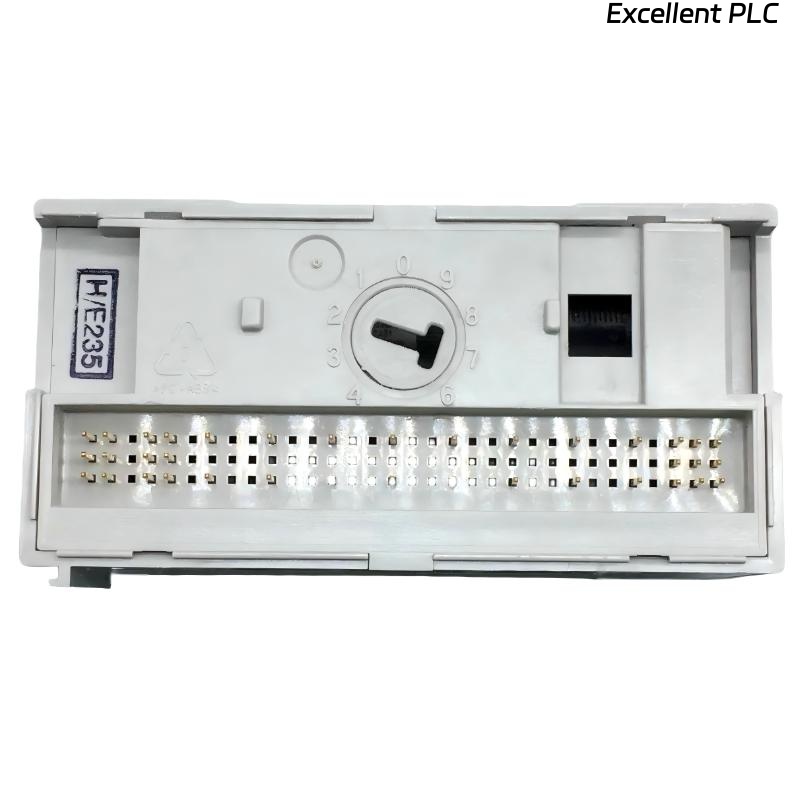

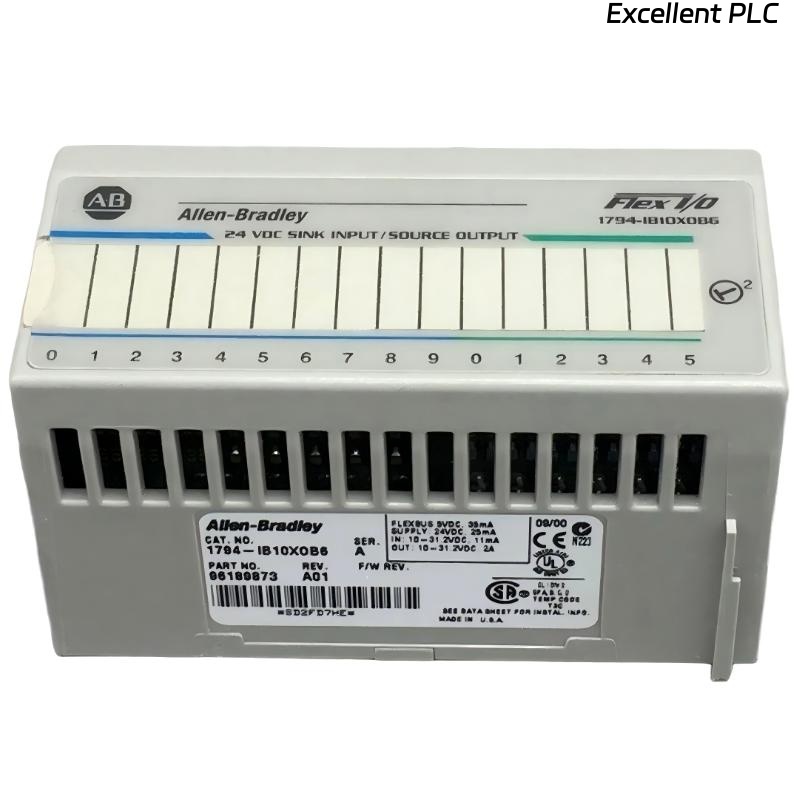

The Allen-Bradley 1794-IB10XOB6 Flex I/O Digital DC Combination Module is a compact and versatile I/O module designed to provide both digital input and output capabilities within a single unit. With 10 DC inputs and 6 DC outputs, this module is well suited for applications where space optimization and mixed I/O functionality are required.
Designed for 24 VDC systems, the module supports sinking input signals and sourcing output signals, enabling direct connection to a wide range of industrial field devices such as sensors, pushbuttons, solenoids, and actuators. This dual functionality significantly reduces the need for multiple modules, simplifying system architecture and lowering installation costs.
The module is compatible with TB3 and TB3S terminal bases and uses screw-type connections for secure wiring. Its IP20 open-style enclosure and DIN rail mounting make it ideal for installation in control cabinets. The 1794-IB10XOB6 integrates seamlessly into Flex I/O distributed systems, offering flexibility, reliability, and efficient control performance.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Flex I/O Digital DC Combination Module |
| Model Number | 1794-IB10XOB6 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Input Channels | 10 points |
| Output Channels | 6 points |
| Input Type | 24 VDC sinking input |
| Output Type | 24 VDC sourcing output |
| Rated Voltage | 24 VDC |
| Terminal Base Compatibility | TB3 / TB3S |
| Wiring Method | Screw connection |
| Mounting Type | DIN Rail |
| Enclosure Rating | IP20, open style |
| Dimensions | 94 x 94 x 69 mm |
| Weight | 0.2 kg |
Applications
• Machine automation systems – Combines input monitoring and output control in compact control panels
• Packaging and assembly lines – Interfaces with sensors and actuators within limited panel space
• Material handling systems – Controls conveyors, motors, and detection devices efficiently
• Process control applications – Handles both signal acquisition and control outputs in distributed systems
• OEM equipment design – Ideal for compact machines requiring integrated I/O functionality
Advantages
• Integrated I/O design – Combines 10 inputs and 6 outputs in one module, reducing hardware requirements
• 24 VDC compatibility – Supports standard industrial DC control systems
• Sinking inputs and sourcing outputs – Provides flexible interfacing with various field devices
• Space-saving structure – Minimizes panel space usage and simplifies system layout
• Secure wiring – Screw terminal connections ensure stable and reliable electrical connections
• Flexible installation – Compatible with TB3/TB3S bases and easy DIN rail mounting
