Product Introduction

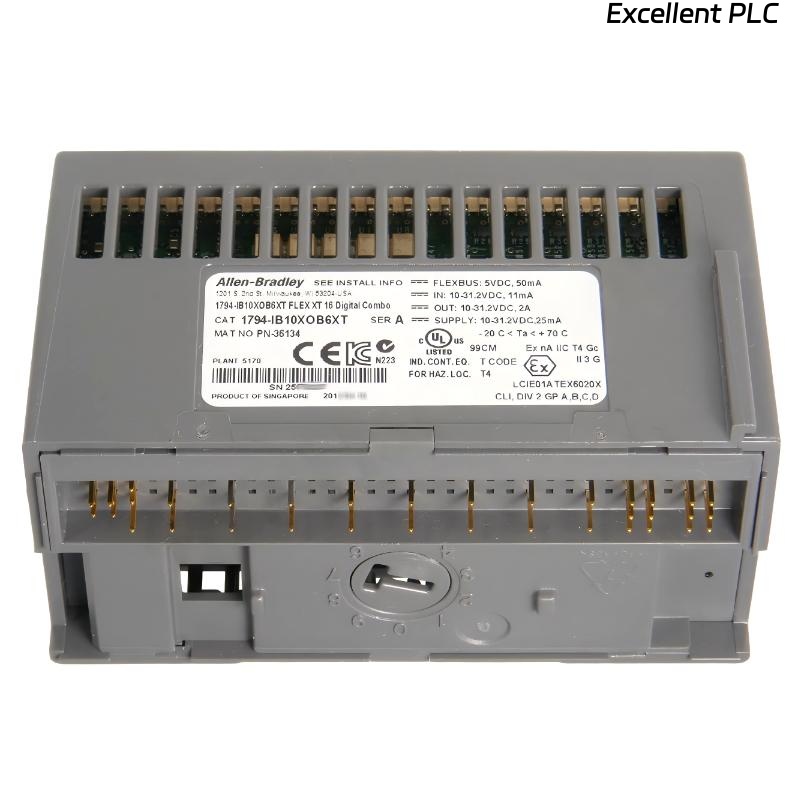

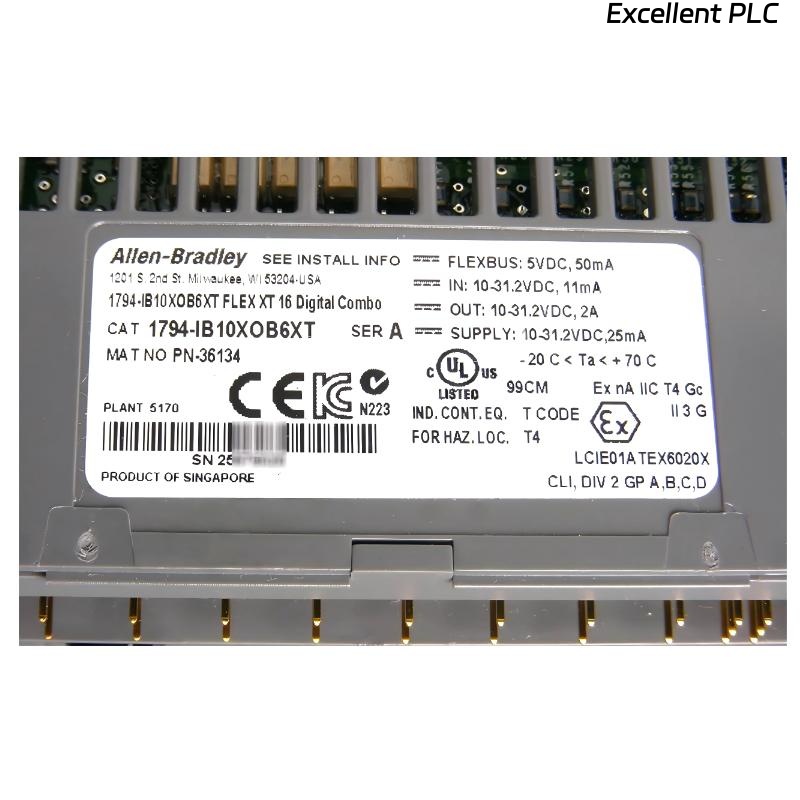

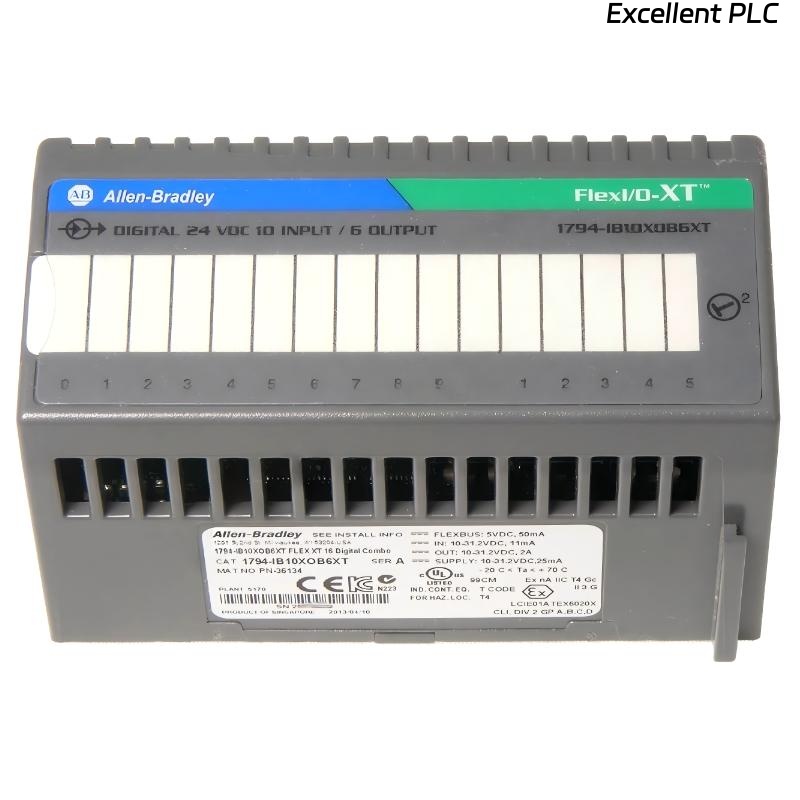

The Allen-Bradley 1794-IB10XOB6XT Flex I/O-XT Combination Module is an industrial-grade extended temperature digital I/O module that combines both input and output functionality in a single unit. It provides 10 DC sinking inputs and 6 DC sourcing outputs, making it ideal for applications requiring compact integration of multiple I/O points while operating in harsh environments.
Designed for 24 VDC systems, the module is capable of stable operation over an extended temperature range of −20 to +70 °C, ensuring reliability in demanding industrial settings. The 1794-IB10XOB6XT is compatible with standard DIN rail mounting and features an IP20 open-style enclosure, facilitating easy installation in control cabinets.
This XT (Extended Temperature) version is specifically engineered to deliver robust performance in environments with temperature fluctuations, maintaining signal integrity and system stability. Its combination of input/output channels supports efficient control and monitoring within Flex I/O distributed systems.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Flex I/O-XT Digital Combination Module |
| Model Number | 1794-IB10XOB6XT |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Input Channels | 10 points |
| Output Channels | 6 points |
| Input Type | 24 VDC sinking |
| Output Type | 24 VDC sourcing |
| Voltage Rating | 24 VDC |
| Operating Temperature | −20 to +70 °C (extended) |
| Mounting Type | DIN Rail |
| Enclosure Rating | IP20, open style |
| Dimensions | 94 x 94 x 69 mm |
| Weight | 0.2 kg |
Applications
• Harsh industrial environments – Suitable for extended temperature operations in factories and outdoor installations
• Machine automation – Monitors inputs and controls actuators or indicators efficiently
• Process control systems – Provides reliable input/output functionality for distributed I/O architectures
• Packaging and material handling – Interfaces with sensors, switches, and control devices in challenging environments
• OEM machinery – Integrates multiple I/O points in compact control panels
Advantages
• Extended temperature operation – Functions reliably from −20 to +70 °C, suitable for harsh conditions
• Combined input/output module – Reduces panel space and hardware requirements with 10 inputs and 6 outputs in one module
• 24 VDC compatibility – Works directly with standard DC industrial systems
• Flexible installation – DIN rail mounting and IP20 open-style enclosure simplify deployment
• Robust industrial design – Ensures reliable operation under extended temperature conditions
• Seamless integration – Fully compatible with Flex I/O distributed systems
