Product Introduction

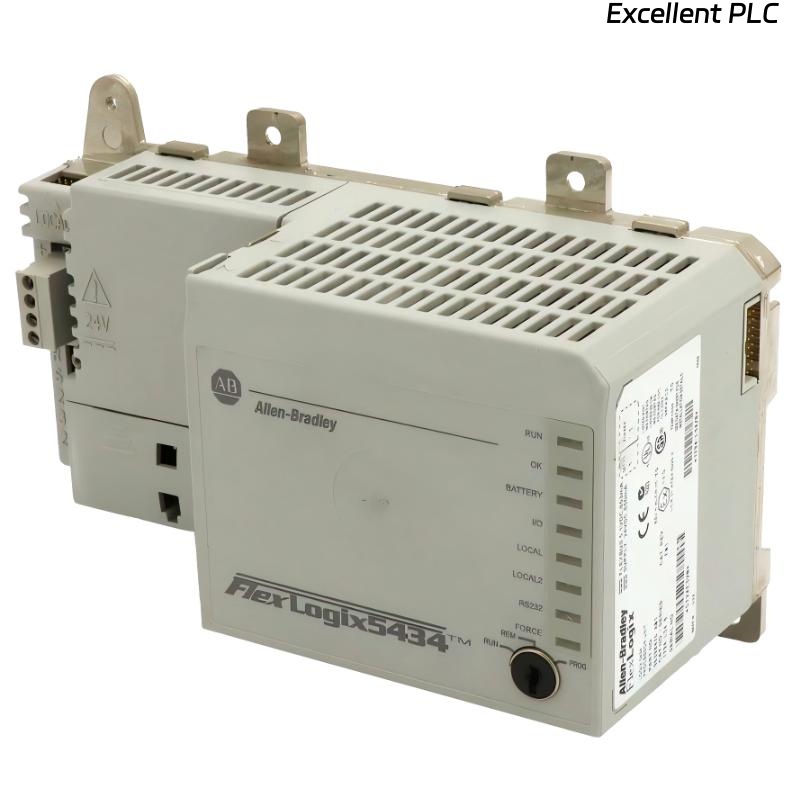

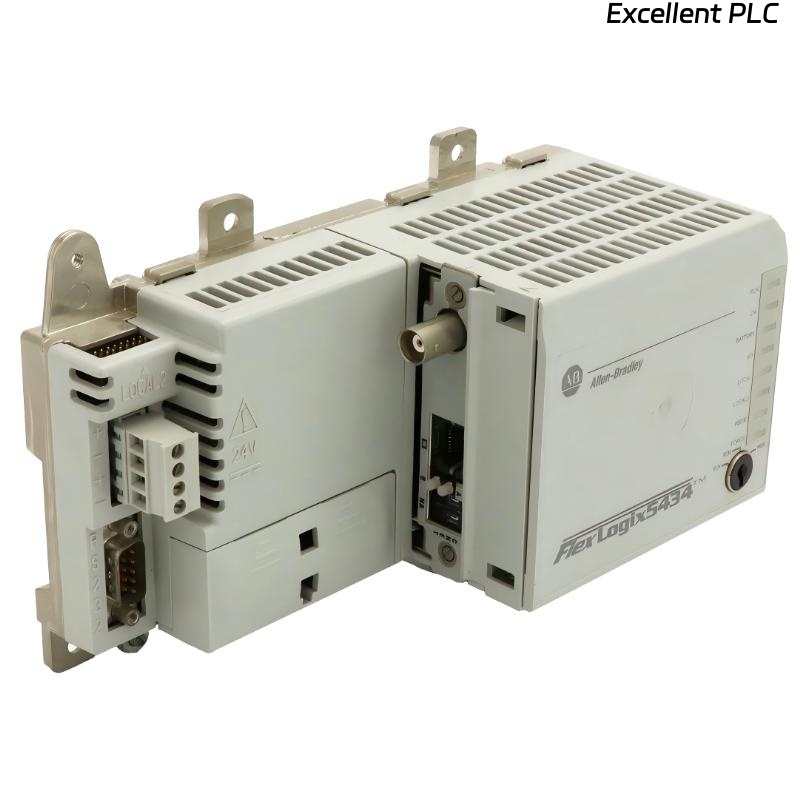

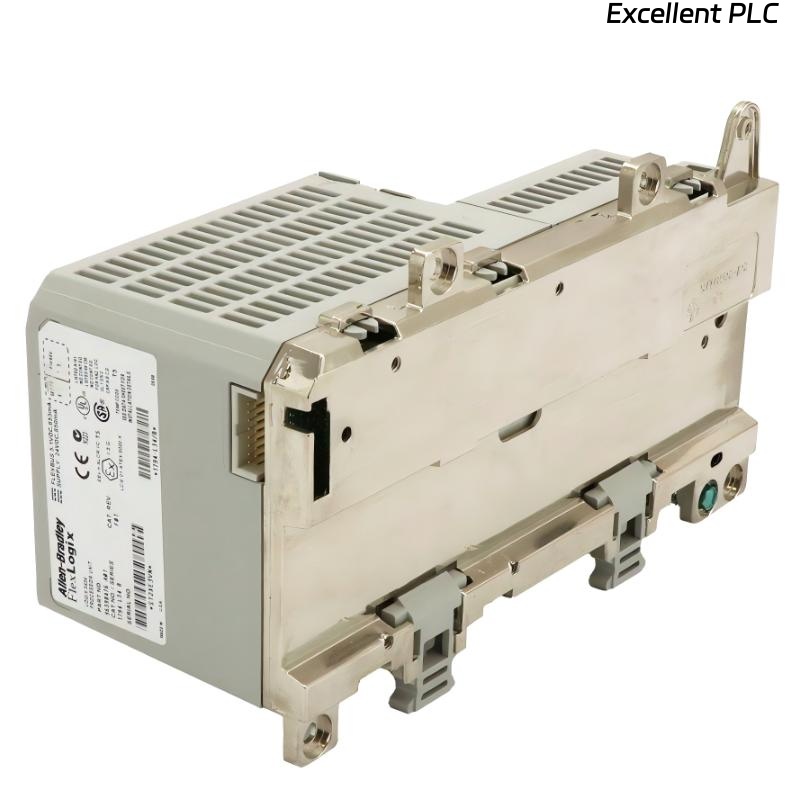

The Allen-Bradley 1794-L34 FlexLogix Processor is a powerful and flexible controller designed for distributed automation systems that require higher memory capacity and expanded communication capabilities. As part of the FlexLogix platform from Rockwell Automation, this processor combines the performance of Logix architecture with the modular flexibility of FLEX I/O systems.
With 512 KB of user memory, the 1794-L34 is well-suited for medium-scale automation applications involving complex control logic, analog processing, and coordinated system operations. It features one RS-232 serial port for communication and supports two slots for 1788 communication cards, enabling integration with various industrial networks such as Ethernet/IP, ControlNet, and DeviceNet.
Designed for 24 VDC operation, the processor offers reliable performance in industrial environments while maintaining a compact footprint for control panel installations.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1794-L34 |
| Brand | Allen-Bradley |
| Series | FlexLogix |
| Module Type | Processor / Controller |
| User Memory | 512 KB |
| Power Supply | 24 VDC |
| Communication Port | 1 × RS-232 Serial Port |
| Expansion Slots | 2 Slots for 1788 Communication Cards |
| Supported Networks | Ethernet/IP, ControlNet, DeviceNet (via 1788 modules) |
| Architecture | Logix-based control platform |
| I/O Compatibility | FLEX I/O modules |
| Mounting Type | DIN Rail / Panel Mount |
| Construction | Industrial-grade design |
| Protection Rating | Typically IP20 |
| Application Scope | Distributed and modular automation systems |
| Dimensions | 199.49 × 87.24 × 121.97 mm |
| Weight | 0.75 kg |
Applications
• Distributed Control Systems – Provides centralized control with expanded communication options for FLEX I/O networks.
• Manufacturing Automation – Enables complex control logic and process coordination in production environments.
• Process Control Systems – Suitable for handling analog and discrete control tasks in industries such as chemical and energy.
• Material Handling Systems – Supports multi-device communication and coordinated control in logistics systems.
• Machine Automation – Ideal for medium-scale machines requiring flexible networking and control capabilities.
Advantages
• Large Memory Capacity – 512 KB user memory supports more complex programs and data handling.
• Flexible Communication Options – Supports multiple industrial networks via 1788 communication modules.
• Integrated Serial Port – RS-232 port enables direct communication with external devices.
• Modular Expansion – Two communication slots allow customized network configuration.
• Reliable Industrial Performance – Designed for stable operation in demanding environments.
• Seamless Integration – Fully compatible with FLEX I/O systems for distributed automation solutions.
