Product Introduction

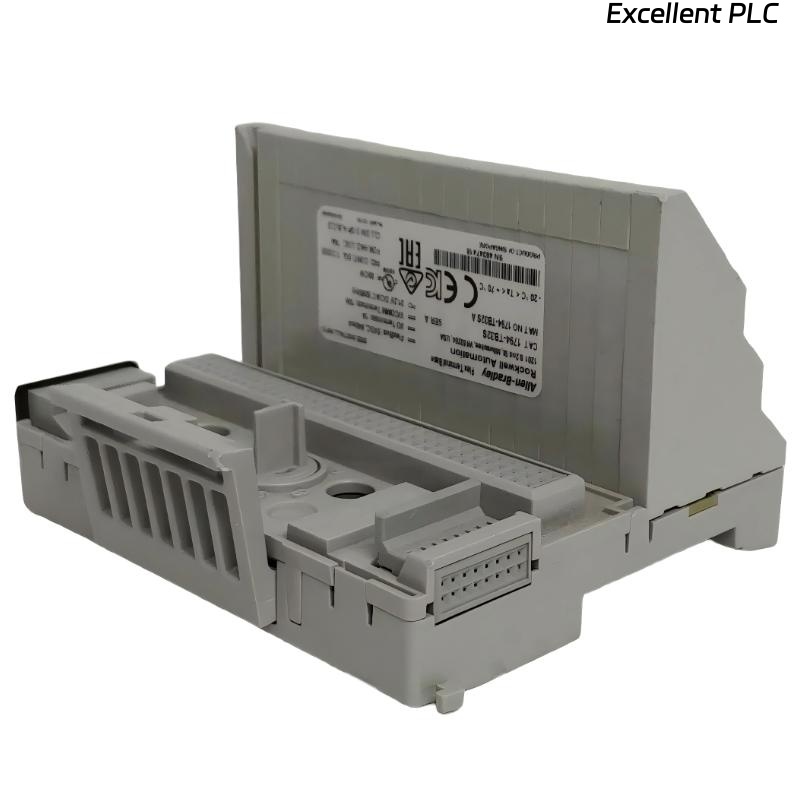

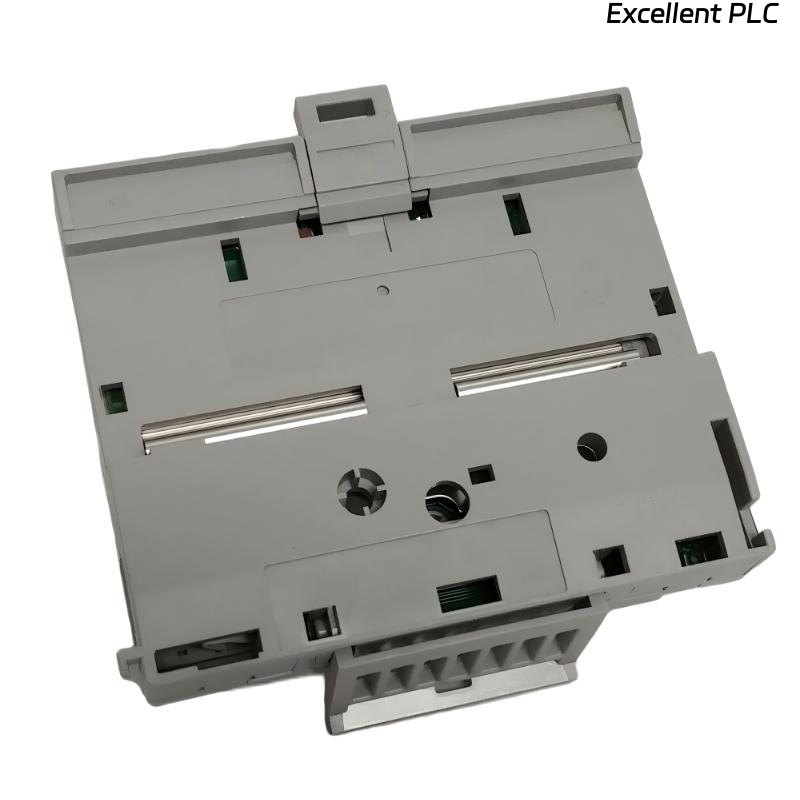

The Allen Bradley 1794-TB32S Flex I/O Terminal Base Unit is a high-density wiring base designed for FLEX I/O systems, offering efficient and reliable connectivity for industrial automation applications. It provides a structured interface between I/O modules and field devices, ensuring stable signal transmission and organized wiring in control panels.

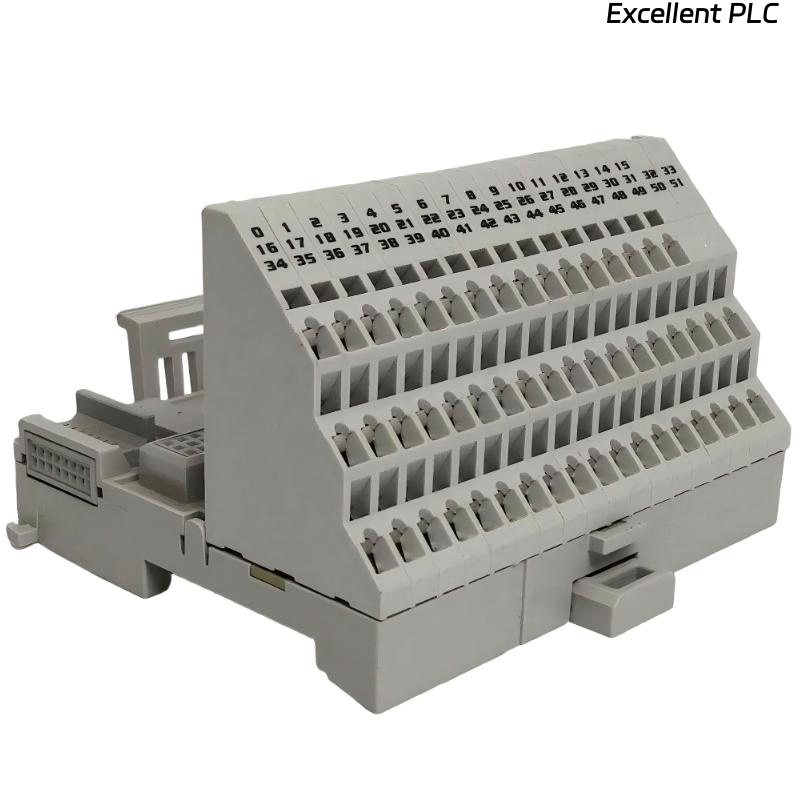

This model features 32 I/O terminals along with 8 common terminals and 8 dedicated voltage terminals, allowing flexible and high-capacity connections. The use of spring-clamp terminals enhances installation efficiency by enabling quick wiring without the need for screw tightening, while maintaining strong and vibration-resistant connections.
With its open-style construction and DIN rail mounting capability, the 1794-TB32S is ideal for applications where space optimization, ease of maintenance, and fast installation are essential. It is widely used in distributed I/O systems across industries such as manufacturing, process control, and energy.
Product Specifications
| Parameter |
Value |
| Product Type |
Flex I/O Terminal Base Unit |
| System Compatibility |
Allen Bradley FLEX I/O System |
| Total I/O Terminals |
32 |
| Common Terminals |
8 |
| +Voltage Terminals |
8 |
| Terminal Type |
Spring-Clamp |
| Mounting Type |
DIN Rail Mount |
| Style |
Open Style |
| Ingress Protection |
IP20 |
| Dimensions |
94 × 94 × 69 mm |
| Weight |
0.16 kg |
Applications
• High-density I/O wiring for FLEX I/O modules in automation systems
• Distributed control systems requiring flexible and scalable I/O connections
• Factory automation and process control environments
• Sensor and actuator integration in complex industrial setups
• Control panel installations with DIN rail mounting requirements
• Suitable for manufacturing, energy, and process industries needing efficient wiring solutions
Advantages
• Spring-clamp terminals allow fast and tool-free wiring while maintaining strong connections
• High-density 32-point configuration reduces space usage and increases efficiency
• Reliable electrical contact even in vibration-prone environments
• Open-style design enables quick inspection and easier maintenance
• DIN rail mounting simplifies installation and panel layout
• Lightweight design (0.16 kg) improves handling and installation efficiency
FAQ
1. What is the main difference between 1794-TB32 and 1794-TB32S?
The 1794-TB32S uses spring-clamp terminals, while the TB32 uses cage clamp terminals, making the TB32S faster to install.
2. How do spring-clamp terminals improve installation?
They allow quick wire insertion without tightening screws, reducing installation time and ensuring consistent connection quality.
3. How many devices can be connected to this unit?
It supports up to 32 I/O connections along with shared common and voltage terminals.
4. Is it suitable for vibration-heavy environments?
Yes, spring-clamp terminals maintain reliable connections even under continuous vibration conditions.
5. What type of wiring is supported?
It supports standard industrial wiring suitable for FLEX I/O systems, typically within common control cable ranges.
6. Can it be used with all FLEX I/O modules?
It is compatible with most FLEX I/O modules, but specific module compatibility should always be verified.
7. How is the unit mounted in a panel?
It is designed for DIN rail mounting, allowing easy and standardized installation.
8. What maintenance is required for this unit?
Minimal maintenance is needed; periodic inspection of connections is generally sufficient.
9. Does the open-style design affect safety?
No, it meets IP20 standards, providing protection against accidental contact while allowing accessibility.
10. What are the main benefits of using this terminal base?
It offers fast installation, high-density connectivity, reliable performance, and easy maintenance in industrial automation systems.
Related Models
| Model |
Description |
| 1794-TB32 |
Flex I/O Terminal Base, Cage Clamp |
| 1794-TB2 |
Flex I/O Terminal Base, 16 Points |
| 1794-TB3 |
Extended Terminal Base Unit |
| 1794-TB4 |
Terminal Base with integrated power |
| 1794-TB5 |
Specialized I/O Terminal Base |
| 1794-TB6 |
High-density FLEX I/O Terminal Base |
