Allen Bradley 1794-TB3S Flex I/O Terminal Base Unit

Product Introduction

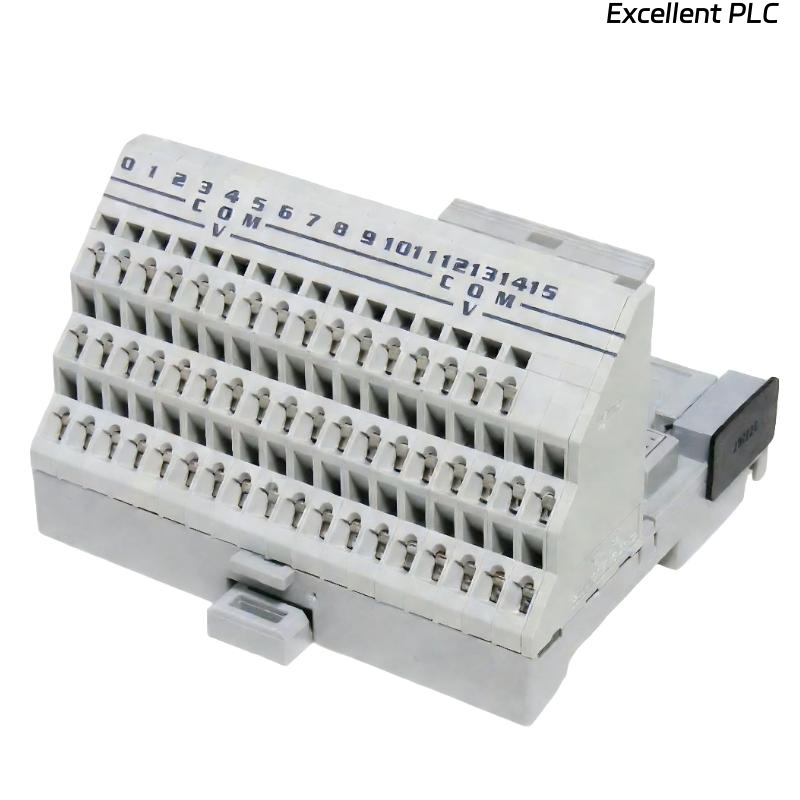

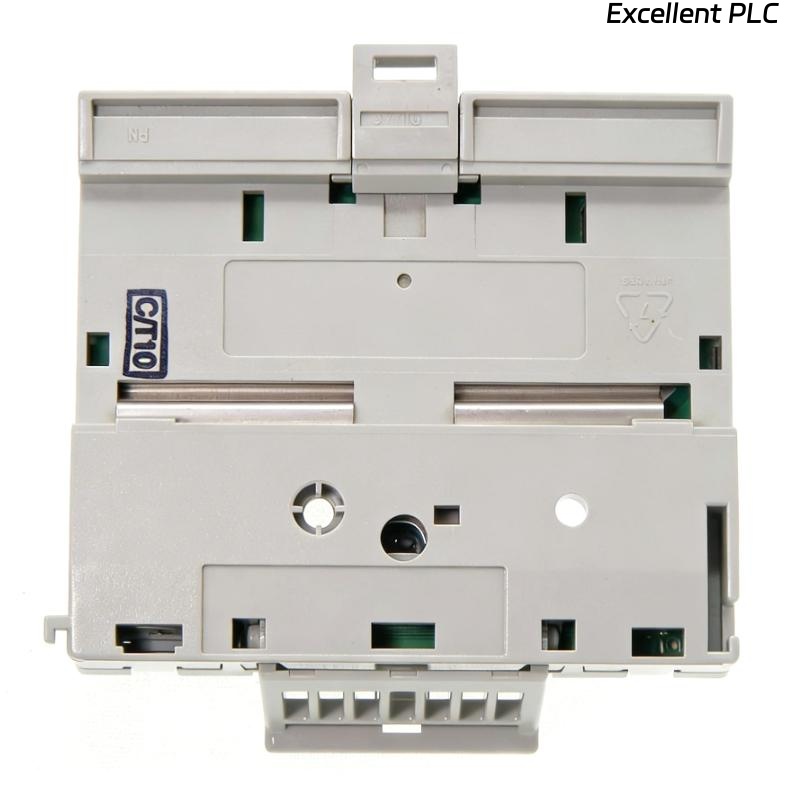

The Allen Bradley 1794-TB3S Flex I/O Terminal Base Unit is a spring-clamp type terminal base designed for FLEX I/O systems, offering reliable and efficient wiring for industrial automation applications. It serves as the connection platform between I/O modules and field devices, ensuring stable signal transmission and organized wiring within control systems.

This model provides 16 I/O terminals along with 18 common terminals and 18 voltage terminals, making it particularly suitable for applications requiring extensive common and power distribution. The spring-clamp connection technology allows fast and secure wiring without the need for tightening screws, improving installation efficiency and consistency.

With a current rating of 10 A and support for 125 VAC/DC at 50/60 Hz, the 1794-TB3S is well-suited for various industrial control scenarios. Its open-style design and DIN rail mounting capability make it easy to install, inspect, and maintain in modern control panels.

---

Product Specifications

---

Applications

• Distributed I/O systems requiring extensive common and power distribution

• Industrial automation panels with flexible wiring and quick installation needs

• Process control systems where stable and organized wiring is essential

• Machine control applications requiring reliable signal and power connections

• DIN rail-based control cabinets for efficient space utilization

• Suitable for manufacturing, energy, and process industries

---

Advantages

• Spring-clamp terminals enable fast, tool-free wiring and consistent connection quality

• High common and voltage terminal count supports flexible power distribution

• Reliable electrical contact even under vibration and industrial conditions

• Open-style design allows easy inspection and quick maintenance

• DIN rail mounting simplifies installation and system integration

• Strong compatibility with FLEX I/O modules for scalable automation systems

FAQ

1. What is the main function of the 1794-TB3S terminal base?
It provides a connection interface between FLEX I/O modules and field devices, supporting both signal and power distribution.

2. Why does this model have more common and voltage terminals?
It is designed for applications that require shared power and common wiring across multiple I/O points.

3. What are the advantages of spring-clamp terminals?
They allow fast installation, reduce wiring errors, and maintain secure connections without the need for screw tightening.

4. What is the current and voltage rating of this unit?
It supports up to 10 A and operates at 125 VAC/DC with 50/60 Hz frequency compatibility.

5. Is it suitable for vibration-prone environments?
Yes, spring-clamp terminals maintain stable connections even under continuous vibration.

6. How is the unit mounted in a control system?
It is designed for DIN rail mounting, making installation simple and standardized.

7. Can it be used with all FLEX I/O modules?
It is compatible with most FLEX I/O modules, but specific compatibility should be verified based on application requirements.

8. Does the open-style design affect safety?
No, it meets IP20 standards, providing protection against accidental contact while allowing accessibility.

9. What maintenance is required?
Minimal maintenance is needed; periodic inspection of wiring connections is recommended.

10. What makes this model suitable for complex wiring systems?
Its high number of common and voltage terminals allows efficient distribution of power and signals, reducing wiring complexity.
