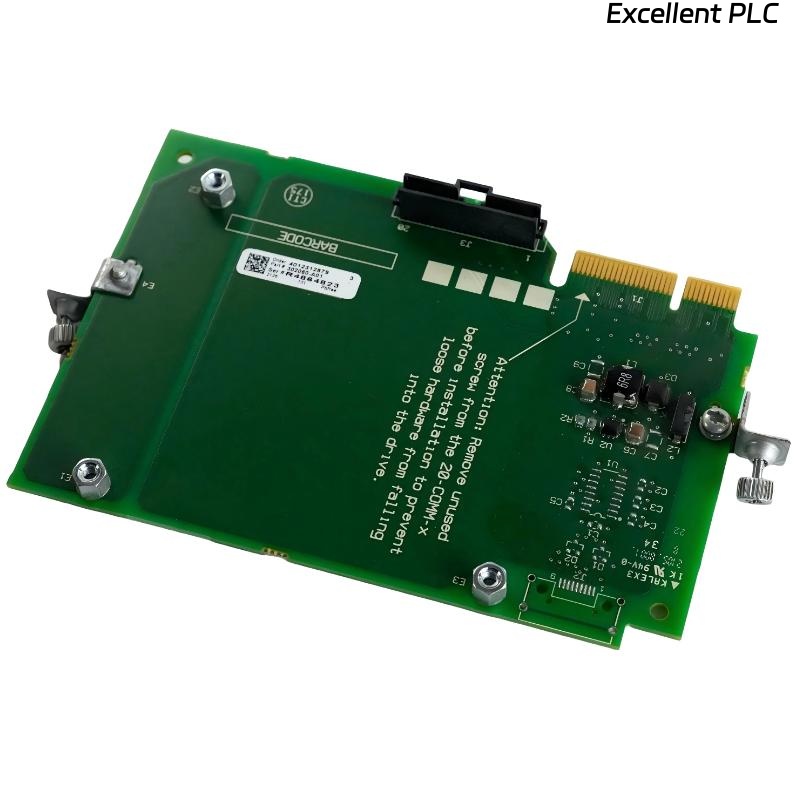

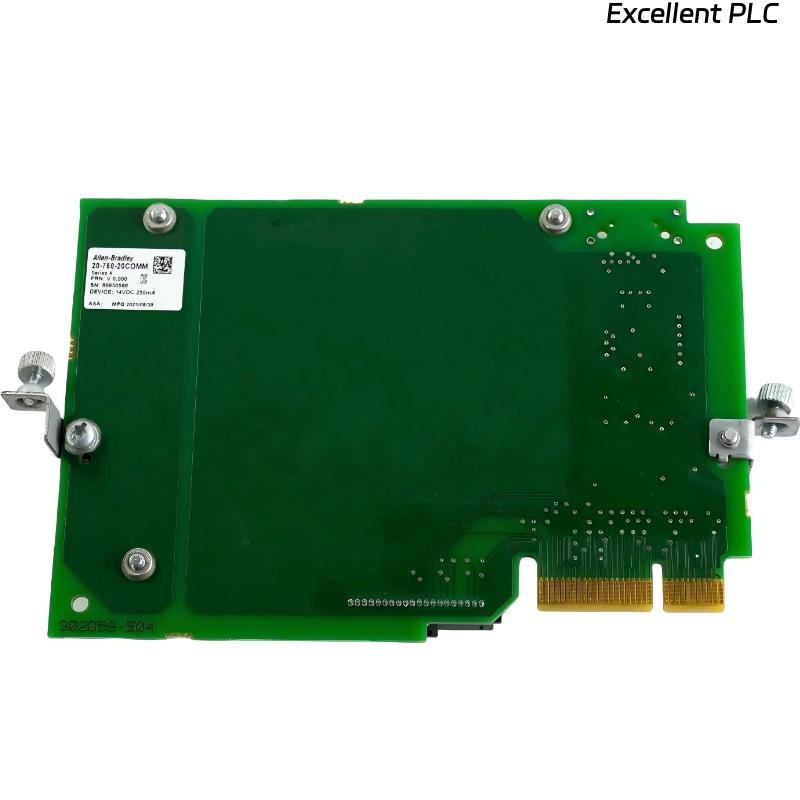

Allen Bradley 20-750-20COMM PowerFlex 750 Series Communication Carrier Card

Product Introduction

The Allen-Bradley 20-750-20COMM communication carrier card is a dedicated interface module designed for the PowerFlex 750 Series drives. It serves as a flexible communication platform that enables the integration of multiple communication adapters within a single drive system, significantly improving connectivity and system scalability.

This carrier card is engineered to be mounted directly on the drive control pod, providing a compact and reliable solution for communication expansion. It allows users to install optional communication modules such as EtherNet/IP, DeviceNet, or ControlNet adapters, depending on the specific industrial network requirements.

Built with industrial-grade components, the 20-750-20COMM ensures stable signal transmission and consistent performance even in demanding environments. It is specifically intended for use in PowerFlex 750 Series drives, starting from Frame 2 and above, making it a standard choice for medium to large-scale drive systems.

---

Product Specifications

---

Applications

• Industrial Automation Systems – Enables seamless communication between drives and PLC systems, improving automation efficiency.

• Motor Control Centers (MCC) – Provides communication expansion for centralized motor control architectures.

• Process Control Industries – Widely used in oil & gas, chemical, and water treatment facilities for reliable drive communication.

• Manufacturing Lines – Supports real-time data exchange between drives and supervisory control systems.

• Material Handling Systems – Ensures stable communication in conveyor and logistics systems.

• Energy and Power Systems – Facilitates integration of drives into energy monitoring and control networks.

---

Advantages

• Flexible Communication Expansion – Allows users to select and install communication modules based on network requirements.

• Compact and Lightweight Design – Minimal space requirement while maintaining high functionality.

• High Compatibility – Fully aligned with PowerFlex 750 Series drives, ensuring seamless integration.

• Reliable Performance – Designed for harsh industrial environments with strong anti-interference capability.

• Modular Architecture – Simplifies maintenance and upgrades without replacing the entire system.

• Easy Installation – Plug-and-play design reduces installation time and engineering effort.

• Scalable System Integration – Supports future expansion of communication networks.

FAQ

1. What is the primary function of the 20-750-20COMM module?
   It acts as a communication carrier that enables the installation of optional communication adapters for PowerFlex 750 drives.
2. Can this module work independently without a communication adapter?
   No, it requires a compatible communication adapter to provide actual network connectivity.
3. Which communication protocols are supported?
   The supported protocols depend on the installed adapter, such as EtherNet/IP, DeviceNet, or ControlNet.
4. Is the module hot-swappable?
   It is recommended to power down the drive before installation or removal to avoid communication errors or hardware damage.
5. What drives are compatible with this carrier card?
   It is designed for PowerFlex 750 Series drives, specifically Frame 2 and above.
6. Does the module require additional configuration?
   Yes, configuration is typically required through the drive parameters or connected control system.
7. How does it improve system communication?
   It enables flexible integration of multiple industrial networks, improving data exchange and system responsiveness.
8. Can multiple communication modules be used simultaneously?
   Yes, depending on system design, multiple adapters can be installed using carrier options.
9. What type of installation does it support?
   It supports direct mounting on the drive control pod for secure and stable installation.
10. Is firmware updating required for operation?
    Firmware updates may be required depending on the communication adapter and system compatibility.
