Product Introduction

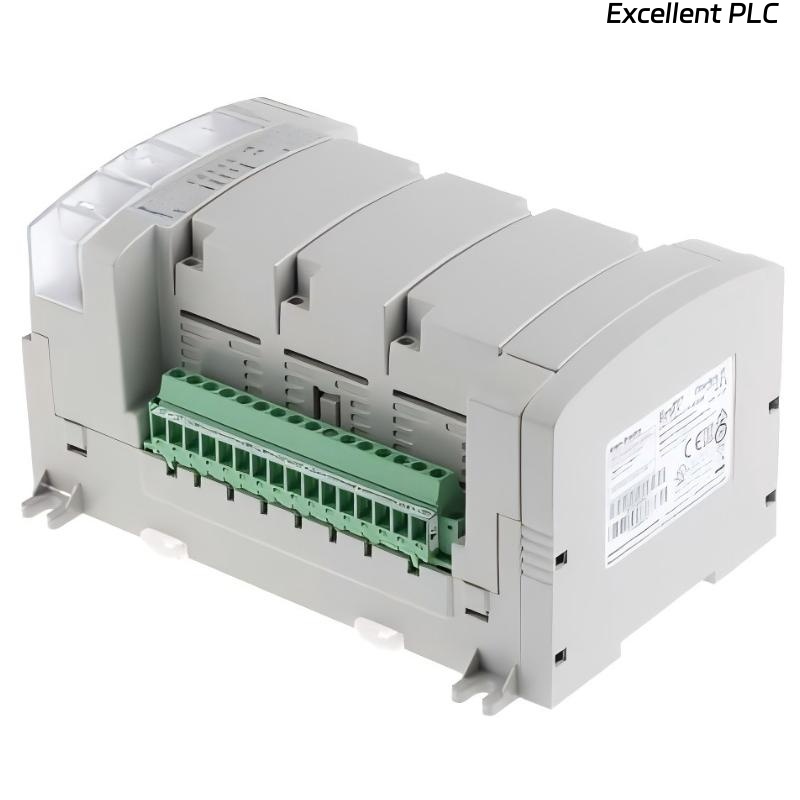

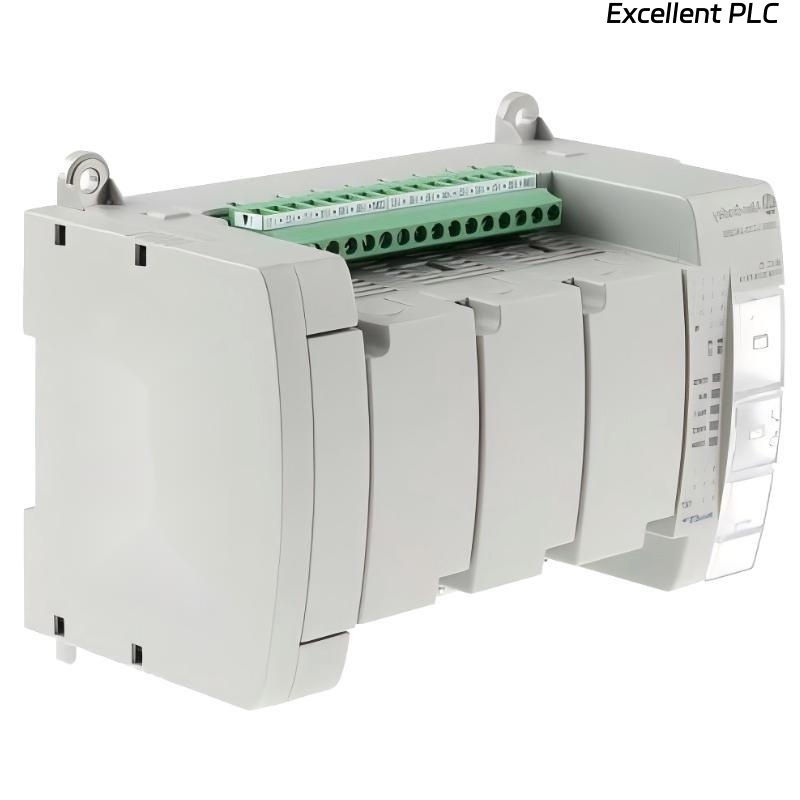

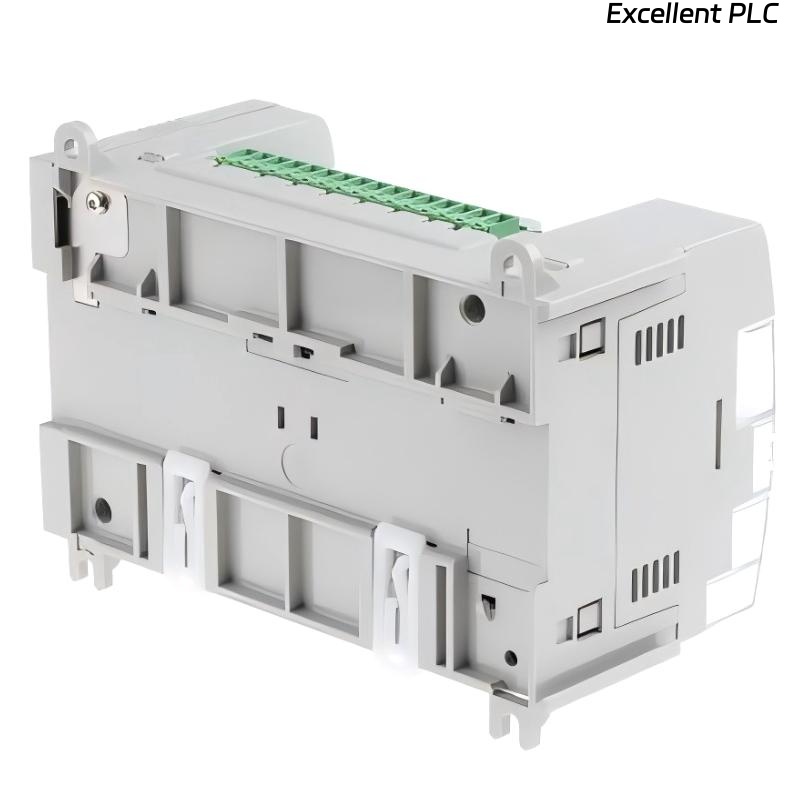

The Allen-Bradley 2080-LC70-24QWB Micro870 programmable controller is a high-performance controller within the Micro800 family, designed for more demanding standalone machines and mid-to-large scale automation systems. Compared to Micro830 and Micro850 models, the Micro870 offers enhanced processing capability, greater expansion capacity, and improved communication flexibility, making it suitable for complex control applications.
This controller is equipped with 14 digital inputs (24 V DC/VAC) and 10 relay outputs, allowing reliable switching of both AC and DC loads. It supports up to 6 high-speed counters (HSC), enabling precise pulse counting, motion tracking, and event monitoring. The embedded USB programming port simplifies configuration and commissioning, while the integrated Ethernet port and non-isolated RS232/485 serial port provide seamless communication with HMI systems, SCADA platforms, and other controllers.
With 3 plug-in ports and support for up to 8 expansion I/O modules, the 2080-LC70-24QWB provides strong scalability. Its compact design and panel-mount capability make it well-suited for industrial control cabinets where space efficiency and performance are equally important.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 2080-LC70-24QWB |
| Product Type | Programmable Controller (PLC) |
| Series | Micro870 (Micro800 Family) |
| Power Supply | 24 V DC |
| Digital Inputs | 14 channels (24 V DC/VAC) |
| Digital Outputs | 10 channels (relay) |
| High-Speed Counters | Up to 6 channels |
| Communication Ports | Ethernet/IP, embedded USB, non-isolated RS232/485 |
| Expansion Capability | Up to 8 expansion I/O modules |
| Plug-in Ports | 3 ports |
| Mounting Type | Panel mountable |
| Control Capability | Advanced automation and network control |
| Programming Method | USB or Ethernet using Micro800 software |
| Application Environment | Industrial automation systems |
| Design Type | Compact high-performance controller |
| Dimensions | 157 x 80 x 90 mm |
| Weight | 0.47 kg |
Applications
• Advanced Standalone Machines – Handles complex logic, sequencing, and multi-device coordination.
• Packaging and Assembly Systems – Provides precise control and synchronization across multiple stations.
• Material Handling and Conveying – Supports high-speed counting and device coordination for efficient operation.
• Industrial Communication Systems – Ethernet and serial ports enable integration with SCADA, HMI, and other PLCs.
• Process Control Systems – Controls pumps, valves, and sensors in water treatment, HVAC, and manufacturing processes.
• OEM Equipment Solutions – Offers scalable architecture with expansion modules and flexible I/O configuration.
Advantages
• Enhanced Processing Capability – More powerful than lower Micro800 models, suitable for complex automation tasks.
• Flexible Relay Outputs – 10 relay outputs allow control of both AC and DC loads.
• High-Speed Counter Support – Up to 6 HSC channels for accurate motion and pulse applications.
• Strong Expansion Capability – Supports up to 8 expansion I/O modules, enabling scalable system design.
• Integrated Communication Ports – Ethernet/IP and RS232/485 ensure seamless system integration.
• Convenient Programming Interface – Embedded USB port simplifies configuration and maintenance.
• Compact and Reliable Design – Panel-mountable structure optimized for industrial environments.
