Product Introduction

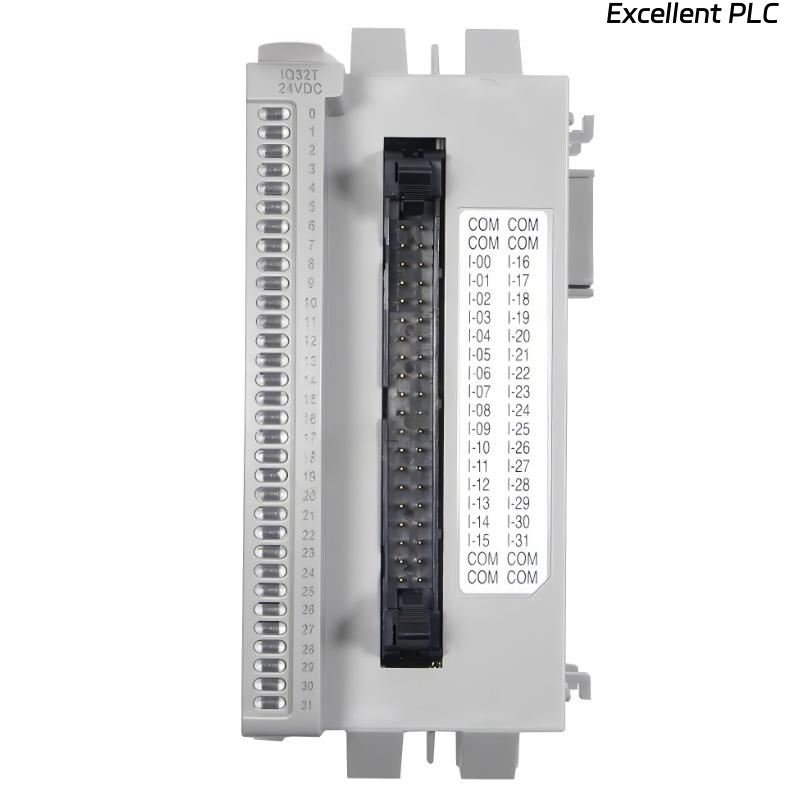

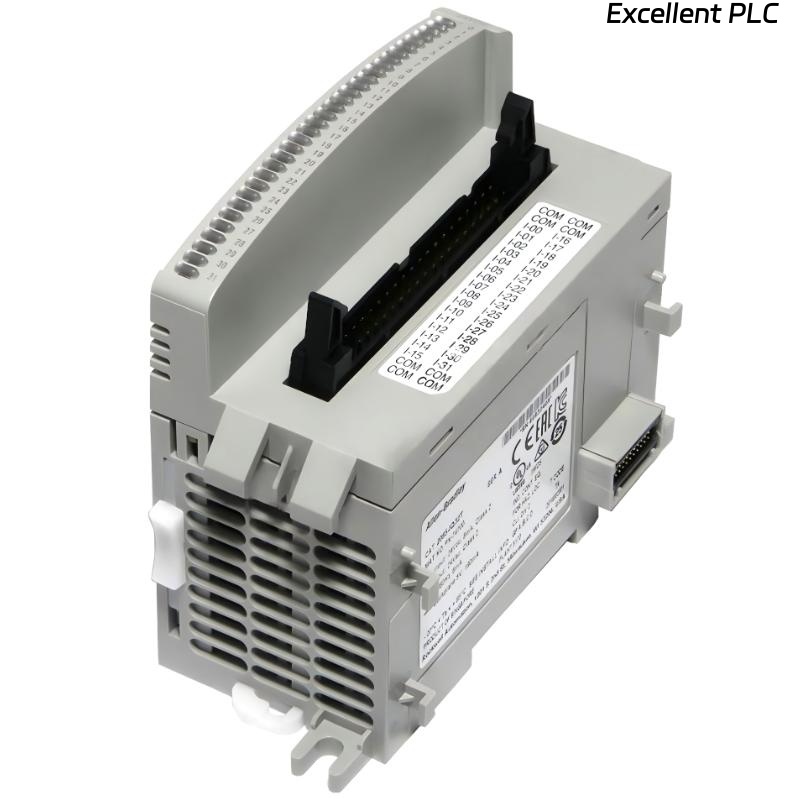

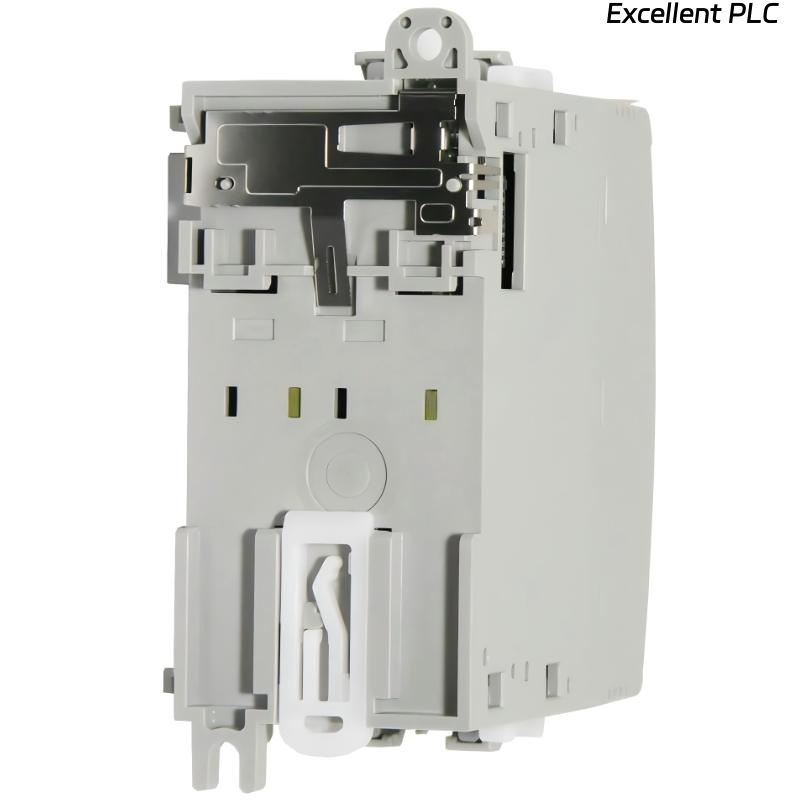

The Allen-Bradley 2085-IQ32T Micro800 digital input module is a high-density expansion module designed to increase the input capacity of Micro800 series programmable controllers. It is suitable for industrial automation systems where a large number of digital input signals need to be monitored and processed efficiently.
This module provides 32 digital input channels operating at 12/24 V DC, supporting both sinking and sourcing wiring configurations. This flexibility allows it to interface with a wide range of field devices such as sensors, push buttons, limit switches, and proximity detectors. The IEC-compliant design ensures compatibility with international standards and enhances system reliability.
With its compact size and robust construction, the 2085-IQ32T is ideal for control panels requiring high input density without increasing footprint. It integrates seamlessly with Micro850 and Micro870 controllers, offering scalable system expansion for complex automation applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 2085-IQ32T |
| Product Type | Digital Input Module |
| Series | Micro800 Series |
| Input Type | Digital (Sink/Source compatible) |
| Number of Inputs | 32 channels |
| Input Voltage | 12/24 V DC |
| Standard Compliance | IEC |
| Signal Type | DC digital input |
| Mounting Type | Panel mountable |
| Compatibility | Micro800 controllers (Micro850 / Micro870) |
| Application Type | Digital input expansion |
| Installation Method | Expansion I/O mounting |
| Design Type | Compact high-density module |
| Dimensions | 90 x 44.5 x 87 mm |
| Weight | 0.26 kg |
Applications
• Machine Automation Systems – Monitors sensors, switches, and control signals in automated equipment.
• Packaging and Assembly Lines – Captures input signals from multiple stations and devices.
• Material Handling Systems – Tracks position, status, and movement signals from conveyors and sorters.
• Industrial Control Panels – Expands input capacity for PLC-based automation systems.
• Process Monitoring Systems – Receives signals from field instruments such as limit switches and alarms.
• OEM Equipment Integration – Provides scalable input expansion for customized machinery solutions.
Advantages
• High Input Density – 32 digital inputs in a compact module maximize panel efficiency.
• Sink/Source Compatibility – Supports flexible wiring configurations, simplifying installation.
• Wide Voltage Range – Operates at 12/24 V DC, suitable for various industrial devices.
• IEC Compliance – Meets international standards, ensuring reliable and consistent performance.
• Seamless Integration – Fully compatible with Micro800 controllers, enabling easy system expansion.
• Compact and Mountable Design – Reduces panel space requirements while maintaining performance.
• Reliable Signal Acquisition – Stable and accurate input detection in industrial environments.
