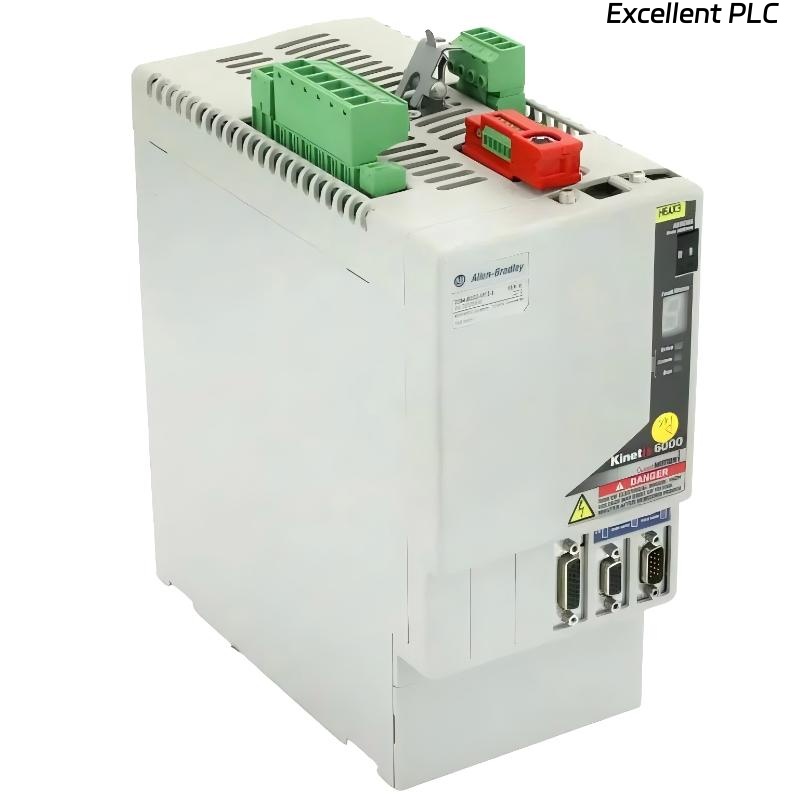

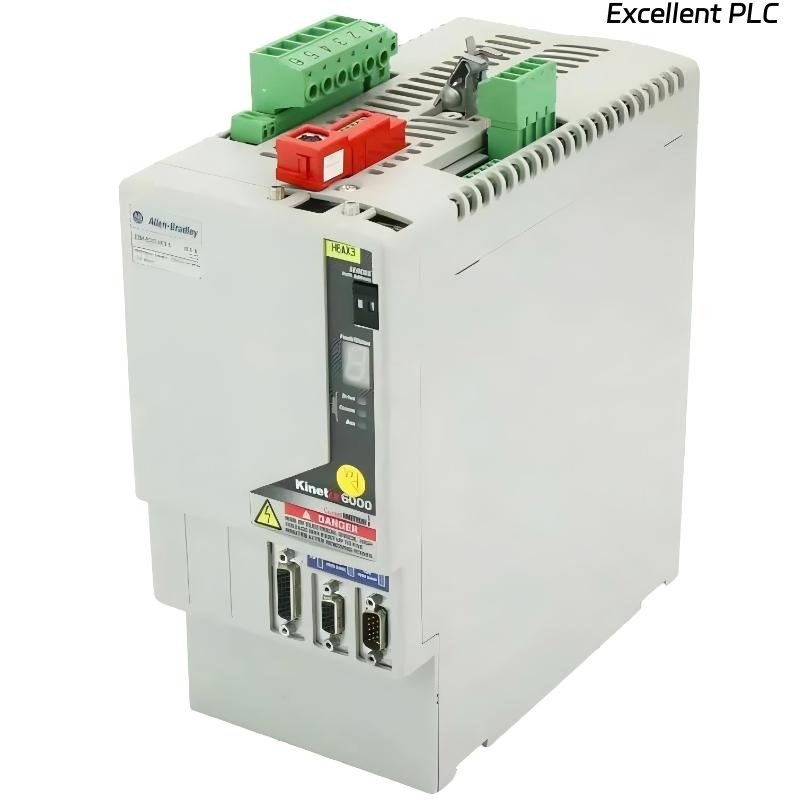

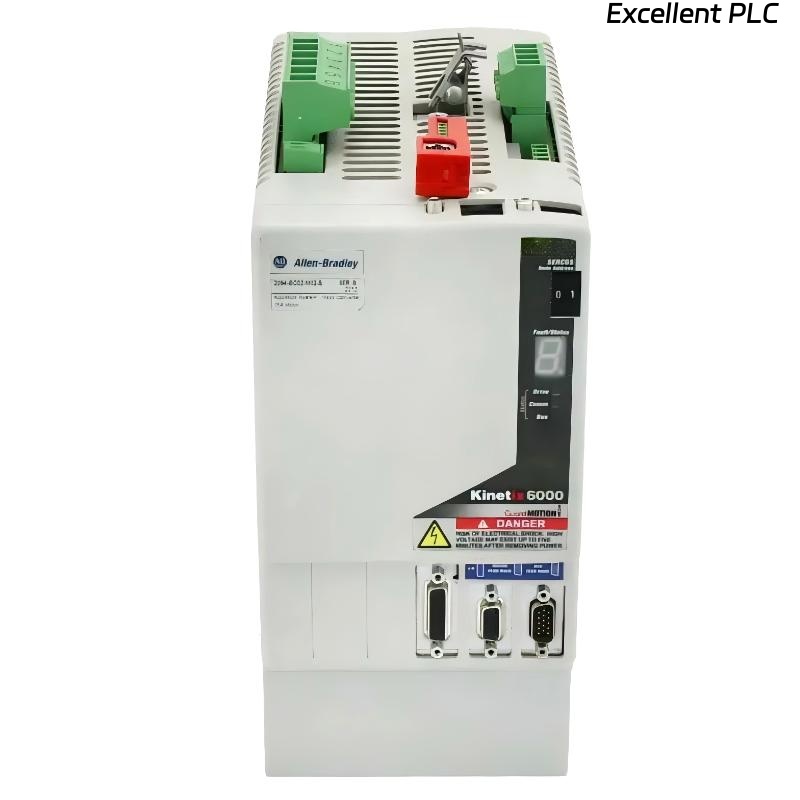

The Allen-Bradley 2094-BC02-M02-S Kinetix integrated axis module is a high-capacity motion control component designed for Kinetix 6000 servo drive systems. It integrates both converter and inverter functionalities into a single unit, providing a streamlined solution for controlling servo motors in medium to high power applications.
Operating at 380/460 VAC, this module delivers a powerful 15 kW converter output and a 6.6 kW inverter output, making it suitable for applications requiring higher torque and dynamic performance. The integrated architecture reduces system complexity and enhances overall efficiency by minimizing the need for separate components.
The module is equipped with a Safe Torque-Off (STO) feature, allowing safe shutdown of motor torque without removing power. This is essential for modern industrial systems that demand both high performance and compliance with safety standards. Its robust design ensures reliable operation in demanding environments while maintaining precise motion control.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 2094-BC02-M02-S |
| Product Type | Integrated Axis Module |
| Series | Kinetix 6000 |
| Input Voltage | 380 / 460 VAC |
| Converter Power | 15 kW |
| Converter Current | 23 A |
| Inverter Power | 6.6 kW |
| Inverter Current | 15 A |
| Safety Feature | Safe Torque-Off (STO) |
| Function | Integrated converter and inverter |
| Application Type | Servo motion control |
| Control Capability | Multi-axis coordinated control |
| Installation Type | Panel-mounted |
| Design Type | Integrated compact module |
| Cooling Method | Air cooling |
| Dimensions | 287 x 125 x 249 mm |
| Weight | 5.08 kg |
Applications
• High-Power Motion Systems – Handles demanding loads requiring stable and high-output performance.
• Packaging and Processing Lines – Supports high-speed and synchronized operations.
• Material Handling Systems – Controls conveyors and lifting mechanisms with precision.
• CNC Machinery – Ensures accurate and repeatable motion control.
• Industrial Automation Lines – Enables coordinated multi-axis movement across complex systems.
• Robotics and Servo Applications – Provides responsive and smooth motor control.
Advantages
• High Power Capacity – Supports larger motors and heavier loads with stable output.
• Integrated Design – Combines converter and inverter, reducing system footprint and wiring.
• Safe Torque-Off Function – Improves safety compliance without interrupting power supply.
• Efficient Performance – Optimizes energy usage and reduces system losses.
• Compact Structure – Saves panel space while maintaining high functionality.
• Reliable Operation – Designed for continuous industrial use under demanding conditions.
• Seamless Integration – Fully compatible with Kinetix 6000 systems.
