Product Introduction

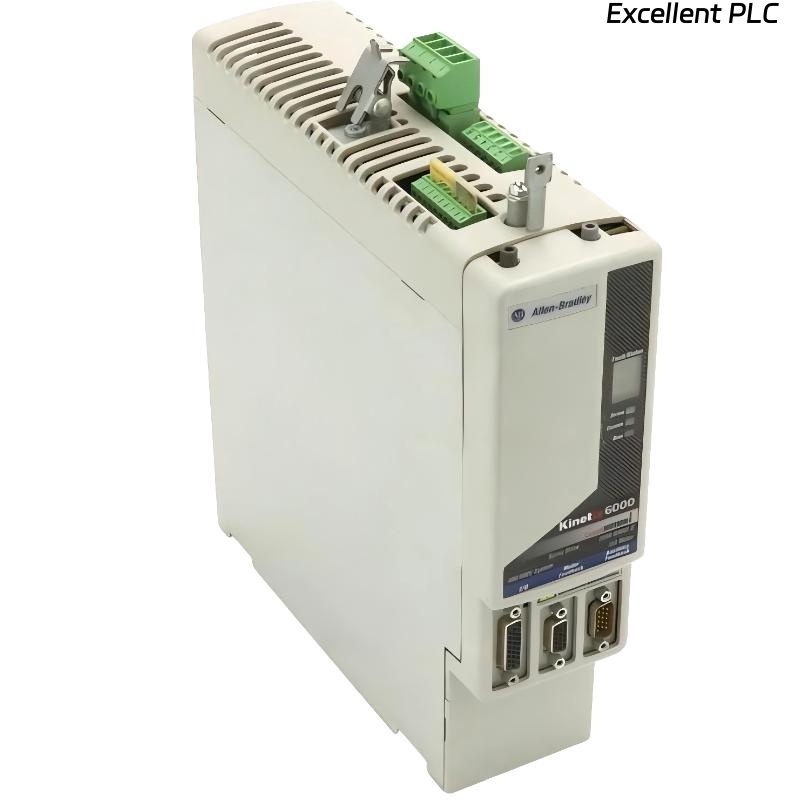

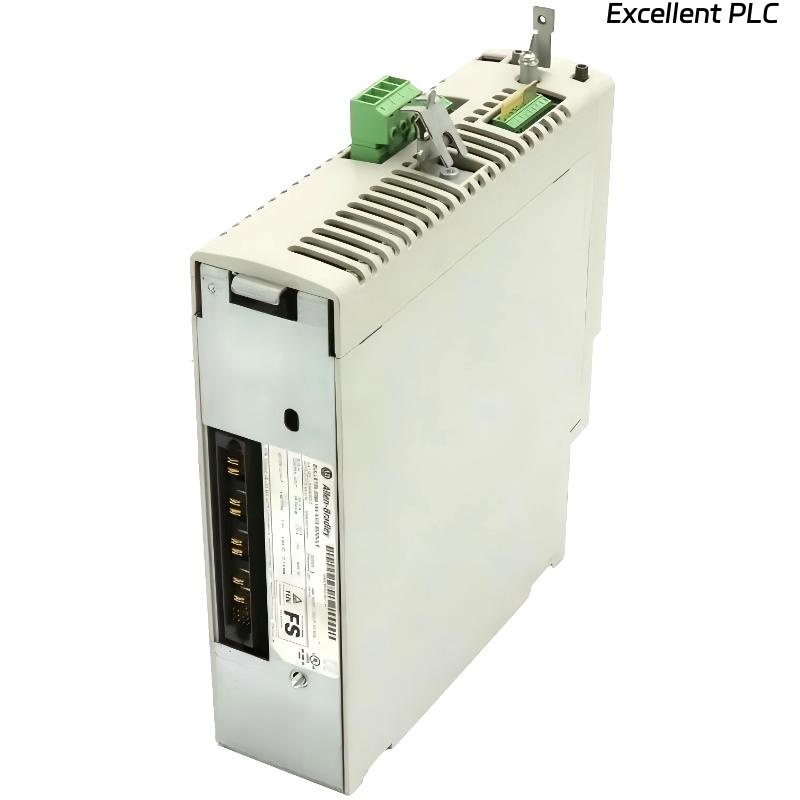

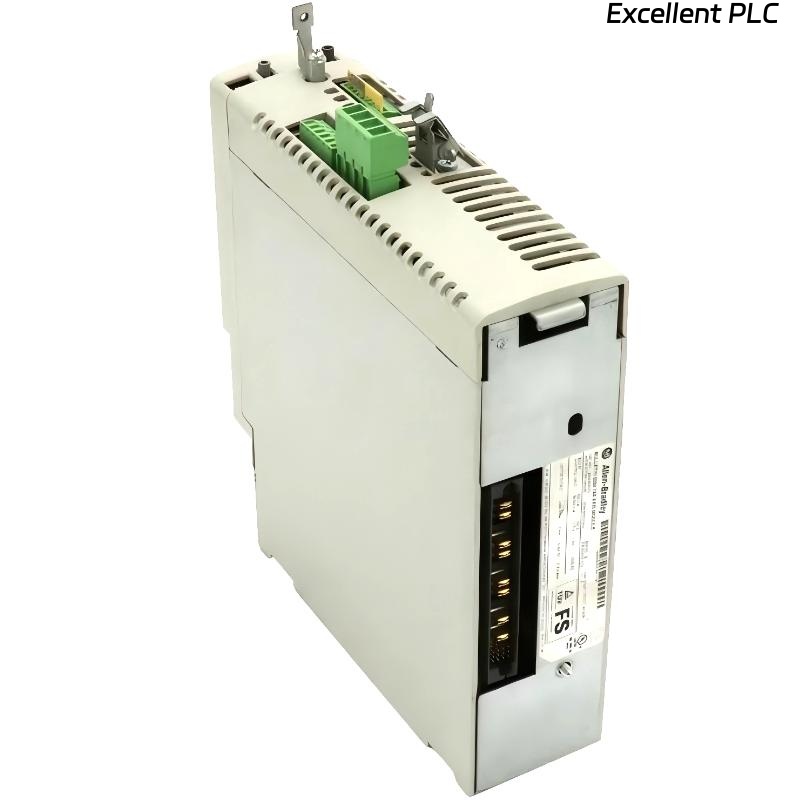

The Allen-Bradley 2094-BM02-S Kinetix 6000 axis module is a compact and high-performance servo drive component designed to deliver precise motion control in industrial automation systems. As part of the Kinetix 6000 platform, this module functions as an inverter-only axis module, working in conjunction with a separate power supply module to provide efficient and scalable motion control solutions.
Operating on a 400/460 VAC system, the 2094-BM02-S delivers a continuous output power of 6.6 kW with a rated current of 15 A. Its single-wide design makes it suitable for installations where panel space is limited, while still maintaining strong performance for medium-duty motion applications.
This model includes an integrated Safe Torque-Off (STO) feature, enabling safe removal of motor torque without disconnecting the power supply. This enhances machine safety and allows for compliance with modern industrial safety standards. The module is widely used in applications requiring reliable, precise, and safe servo motor control.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 2094-BM02-S |
| Product Type | Axis Module (Inverter) |
| Series | Kinetix 6000 |
| Input Voltage | 400 / 460 VAC |
| Inverter Power | 6.6 kW |
| Inverter Current | 15 A |
| Module Type | Inverter-only axis module |
| Safety Feature | Safe Torque-Off (STO) |
| Design Type | Single-wide module |
| Control Type | Servo motor control |
| Application Type | Multi-axis motion systems |
| Installation Type | Panel-mounted |
| Cooling Method | Air cooling |
| System Requirement | Requires external power supply module |
| Dimensions | 287 x 70 x 249 mm |
| Weight | 2.54 kg |
Applications
• Servo Motion Systems – Provides precise inverter control for individual axes.
• Packaging Equipment – Supports accurate positioning and repeatability in high-speed lines.
• Material Handling Systems – Controls conveyors and actuators with stable performance.
• Automated Assembly Lines – Ensures synchronized motion between multiple axes.
• CNC and Machine Tools – Delivers consistent and accurate motor control.
• Industrial Robotics – Enables smooth and responsive servo movement.
Advantages
• Compact Single-Wide Design – Saves cabinet space and allows flexible system layout.
• Integrated Safe Torque-Off – Enhances safety without removing system power.
• Stable 6.6 kW Output – Supports medium-duty motion applications reliably.
• Flexible System Integration – Works seamlessly with Kinetix 6000 power modules.
• High Precision Control – Ensures accurate and repeatable motion performance.
• Reduced Wiring Complexity – Simplifies installation and maintenance.
• Industrial Reliability – Designed for continuous operation in automation environments.
