Product Introduction

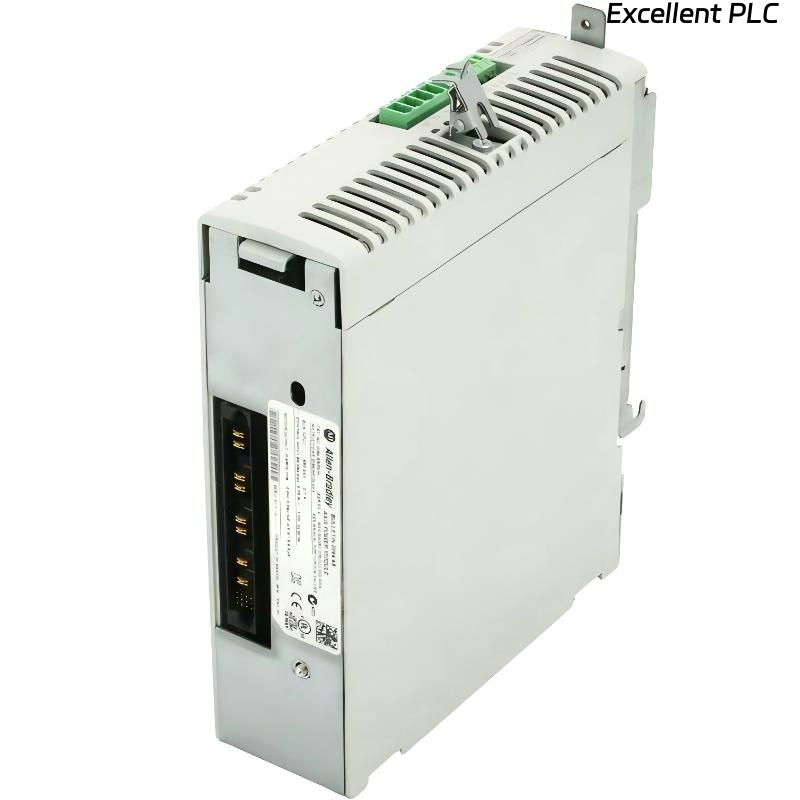

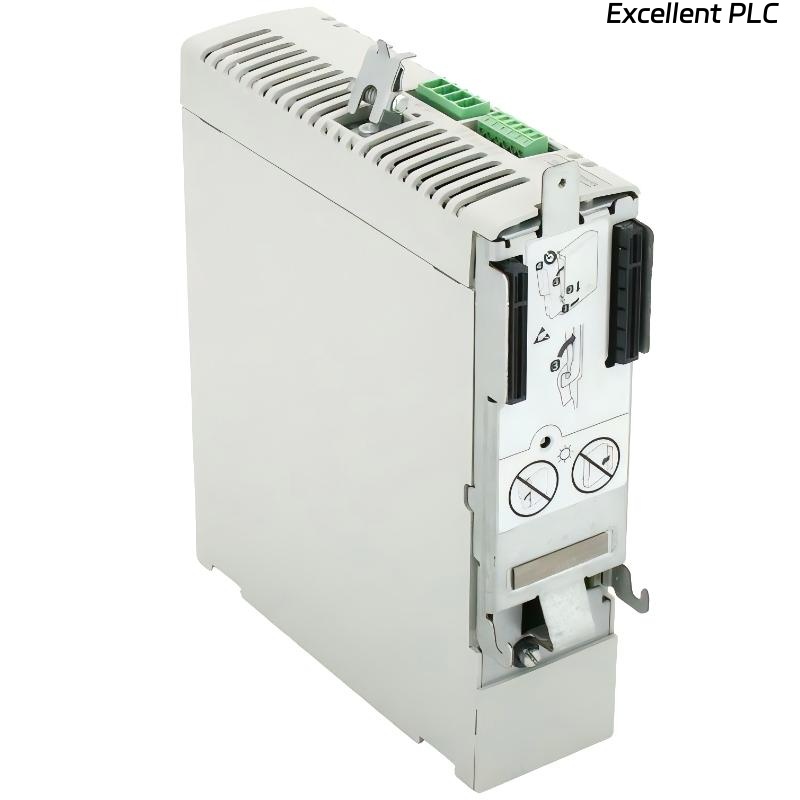

The Allen-Bradley 2094-BMP5-M Kinetix 6000 Axis Module is a modular servo drive designed for precise and scalable motion control in industrial automation applications. It is part of the Kinetix 6000 platform and functions as a compact inverter module capable of controlling single or multiple servo axes with high reliability.
Operating on 360–480 VAC at 50/60 Hz, the module delivers 1.8 kW of continuous power with a rated current of 4 A. Its modular design allows flexible integration into existing systems, enabling easy expansion of multi-axis configurations. The 2094-BMP5-M provides robust performance for small- to medium-duty servo applications where space optimization and precise control are critical.
The module’s industrial-grade design ensures stable operation in automation systems and supports efficient system installation and maintenance. Its compact footprint makes it well-suited for panel-mounted setups where space is limited.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 2094-BMP5-M |
| Product Type | Axis Module (Inverter) |
| Series | Kinetix 6000 |
| Input Voltage | 360–480 VAC, 50/60 Hz |
| Inverter Power | 1.8 kW |
| Inverter Current | 4 A |
| Module Type | Modular inverter axis module |
| Function | Single-axis servo control |
| Design Type | Compact modular module |
| Application Type | Industrial automation motion control |
| Control Capability | Single or multi-axis coordination |
| Installation Type | Panel-mounted |
| Cooling Method | Air cooling |
| Dimensions | 290 x 70 x 285 mm |
| Weight | 3.18 kg |
Applications
• Small- to Medium-Duty Servo Systems – Provides precise motion control for individual axes.
• Packaging Machinery – Supports high repeatability and accurate positioning.
• Material Handling Equipment – Controls conveyors and actuators efficiently.
• Automated Assembly Lines – Coordinates multiple axes for synchronized operation.
• CNC Machines – Enables consistent and accurate servo movement.
• Industrial Robotics – Delivers responsive and controlled motion for robotic arms.
Advantages
• Compact Modular Design – Facilitates flexible system integration and space-efficient installation.
• Reliable Performance – Delivers stable 1.8 kW output for small- to medium-duty applications.
• High Precision Control – Ensures accurate and repeatable motion.
• Flexible Multi-Axis Integration – Works with other Kinetix modules for scalable systems.
• Air-Cooled Design – Maintains stable performance under continuous operation.
• Industrial Reliability – Built for demanding automation environments.
• Simplified Installation and Maintenance – Reduces wiring complexity and enables easy modular expansion.
