Product Introduction

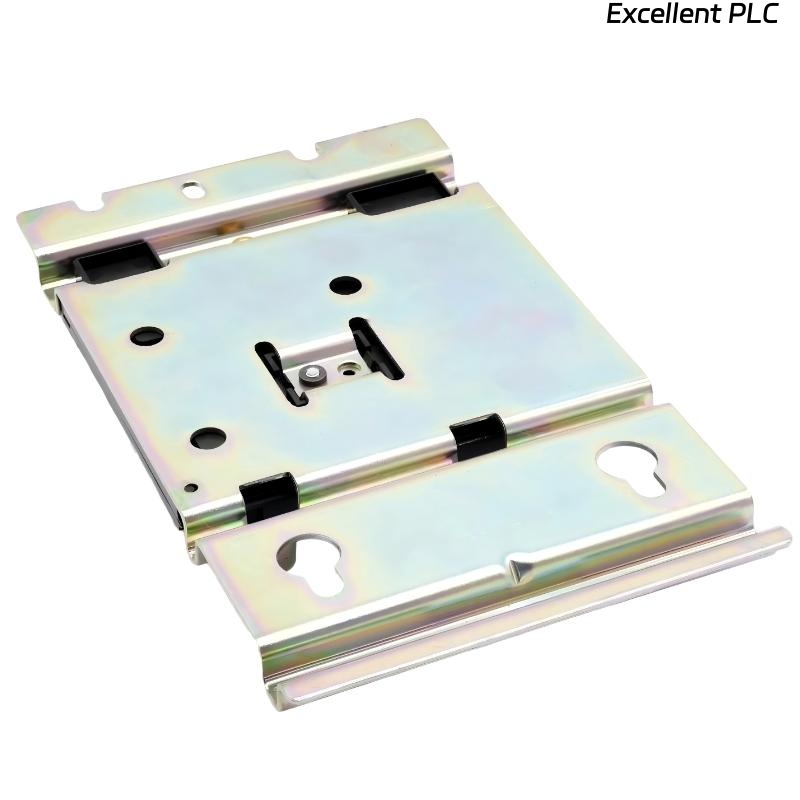

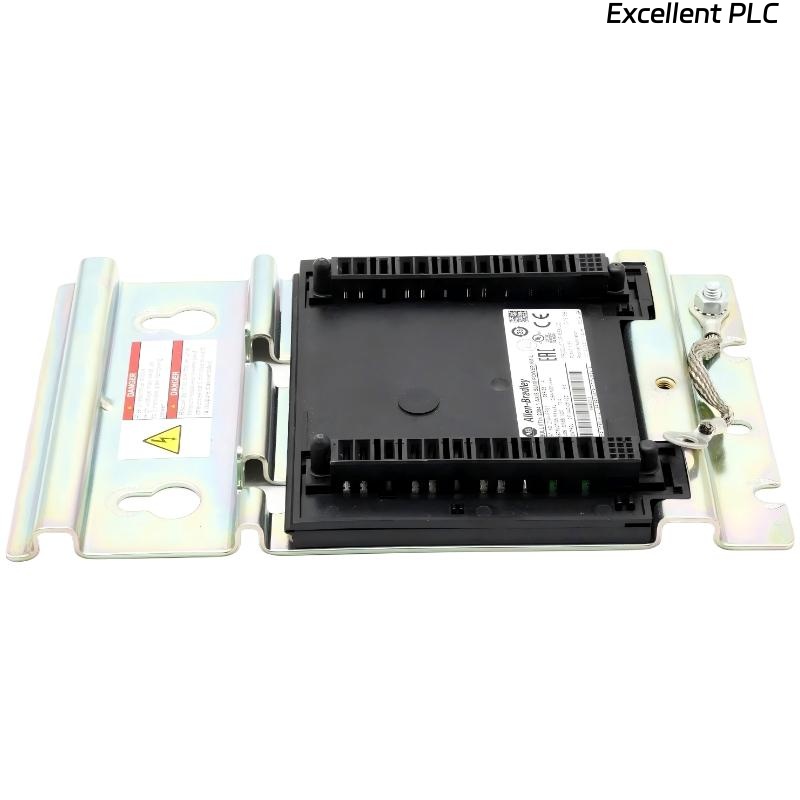

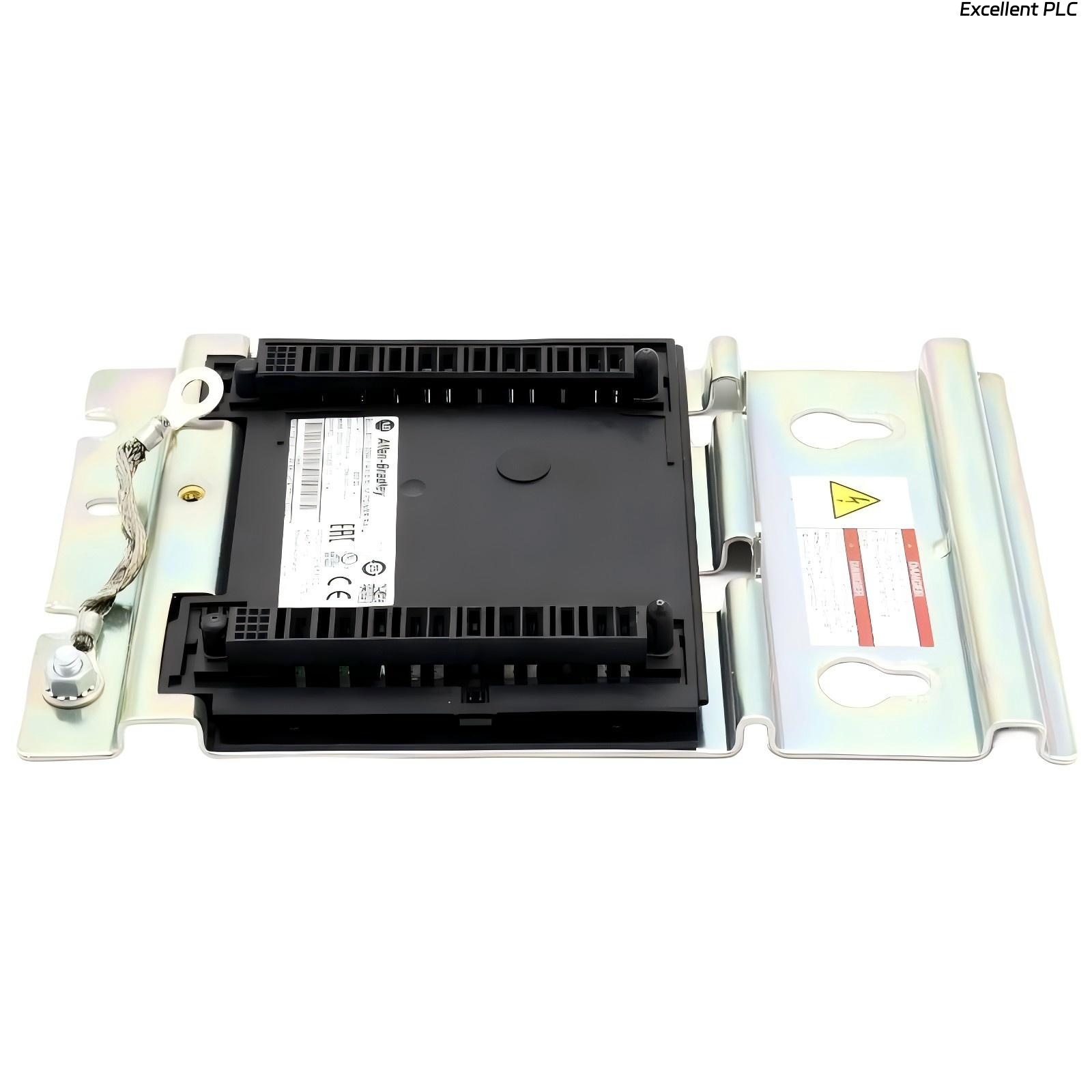

The Allen-Bradley 2094-PRS1 Kinetix 6000 Slim Power Rail is a compact and efficient power distribution component designed for Kinetix 6000 servo drive systems. It provides a reliable and streamlined power supply solution for modular servo axis modules (IAM), supporting single-axis configurations while minimizing panel space usage.
This slim power rail is compatible with both 230V and 460V drive systems, ensuring flexibility across a range of industrial applications. Its design allows one Integrated Axis Module (IAM) per rail, simplifying installation and maintenance. The 2094-PRS1 is ideal for automation environments that demand compact, reliable, and scalable power distribution solutions.
The lightweight and space-saving design enhances system layout flexibility, enabling engineers to optimize control panels for multi-axis setups while maintaining clean and efficient wiring paths.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 2094-PRS1 |
| Product Type | Slim Power Rail |
| Series | Kinetix 6000 |
| Supported Voltage | 230 V or 460 V |
| Function | Power distribution for 1 axis module (IAM) |
| Axis Support | 1 Integrated Axis Module |
| Design Type | Slim, compact rail |
| Installation Type | Panel-mounted |
| Cooling Method | Passive / Convection |
| Compatibility | Kinetix 6000 modular drive systems |
| Weight | 1.05 kg |
| Dimensions | 231 x 25.4 x 134.6 mm |
Applications
• Single-Axis Servo Systems – Provides stable power to a single IAM module.
• Compact Control Panels – Enables space-efficient installations in dense automation setups.
• Modular Multi-Axis Systems – Simplifies expansion when combined with multiple slim rails.
• Industrial Automation Equipment – Supports reliable and continuous motion control.
• Robotics and Conveyor Systems – Delivers power to precise servo axes in compact setups.
• OEM Machine Design – Facilitates clean and organized system integration.
Advantages
• Compact Slim Design – Optimizes panel space while maintaining full functionality.
• Supports Single IAM Module – Simplifies power management for individual axes.
• Flexible Voltage Compatibility – Works with 230V and 460V drive systems.
• Easy Installation – Panel-mounted design allows fast and clean setup.
• Reliable Power Distribution – Ensures stable and consistent power to the connected module.
• Scalable System Architecture – Facilitates expansion by adding additional rails.
• Industrial Durability – Designed for continuous operation in demanding environments.
