Product Introduction

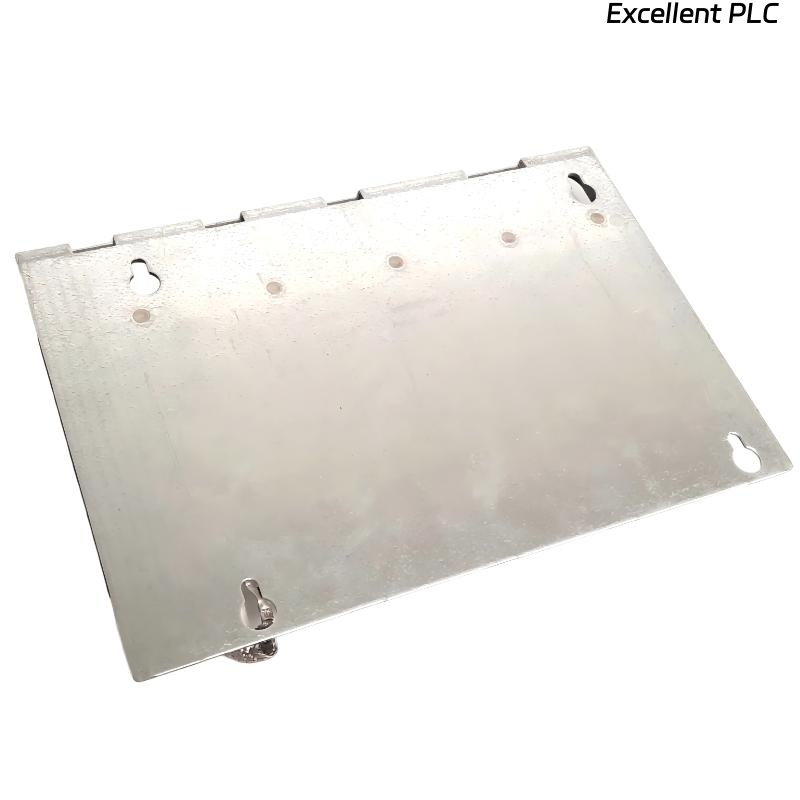

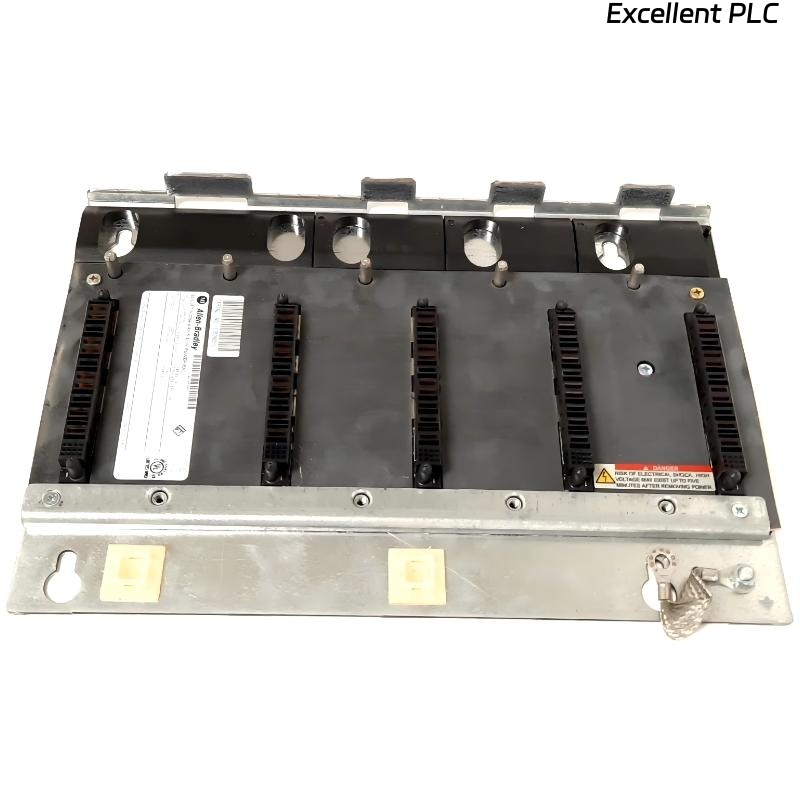

The Allen-Bradley 2094-PRS4 Kinetix 6000 Slim Power Rail is a high-performance, space-efficient power distribution component designed for modular Kinetix 6000 servo drive systems. Unlike single-axis rails, the 2094-PRS4 supports up to four axes, allowing one Integrated Axis Module (IAM) and up to three additional modular servo modules to be powered from a single rail.
Compatible with both 230 V and 460 V drive systems, this rail simplifies multi-axis configurations while maintaining a compact footprint. Its slim and lightweight design (2.67 kg) enables clean and organized installation in panel-mounted systems, reducing wiring complexity and optimizing control cabinet space.
The 2094-PRS4 is ideal for industrial automation applications requiring scalable power distribution, precise servo control, and reliable performance across multiple axes. It provides a robust and efficient solution for coordinated motion systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 2094-PRS4 |
| Product Type | Slim Power Rail |
| Series | Kinetix 6000 |
| Supported Voltage | 230 V or 460 V |
| Axis Support | 1 IAM module + up to 3 additional modules |
| Function | Power distribution for multiple axis modules |
| Design Type | Slim, modular rail |
| Installation Type | Panel-mounted |
| Cooling Method | Passive / Convection |
| Compatibility | Kinetix 6000 modular drive systems |
| Weight | 2.67 kg |
| Dimensions | 348 x 25.4 x 231 mm |
Applications
• Multi-Axis Servo Systems – Supports up to four axes for coordinated motion control.
• Compact Control Panels – Saves space while powering multiple modules efficiently.
• Material Handling Equipment – Delivers reliable power to conveyors and robotic actuators.
• Automated Production Lines – Enables synchronized movement across several servo axes.
• Packaging Machinery – Provides stable power distribution for high-speed, multi-axis operations.
• Industrial Robotics – Supports multiple servo modules for complex motion control tasks.
Advantages
• Supports Multiple Modules – Power one IAM and up to three additional modules, reducing the number of rails needed.
• Slim, Space-Saving Design – Optimizes panel layout and reduces wiring congestion.
• Flexible Voltage Compatibility – Operates with 230 V or 460 V systems.
• Simplified Installation – Panel-mounted design allows quick setup with clean wiring.
• Reliable Power Distribution – Ensures stable operation across multiple modules.
• Scalable System Architecture – Facilitates expansion by adding additional modules on the same rail.
• Industrial Durability – Designed for continuous use in demanding environments.
