Allen Bradley 2094-PRS5 Kinetix 6000 Slim Power Rail

Product Introduction

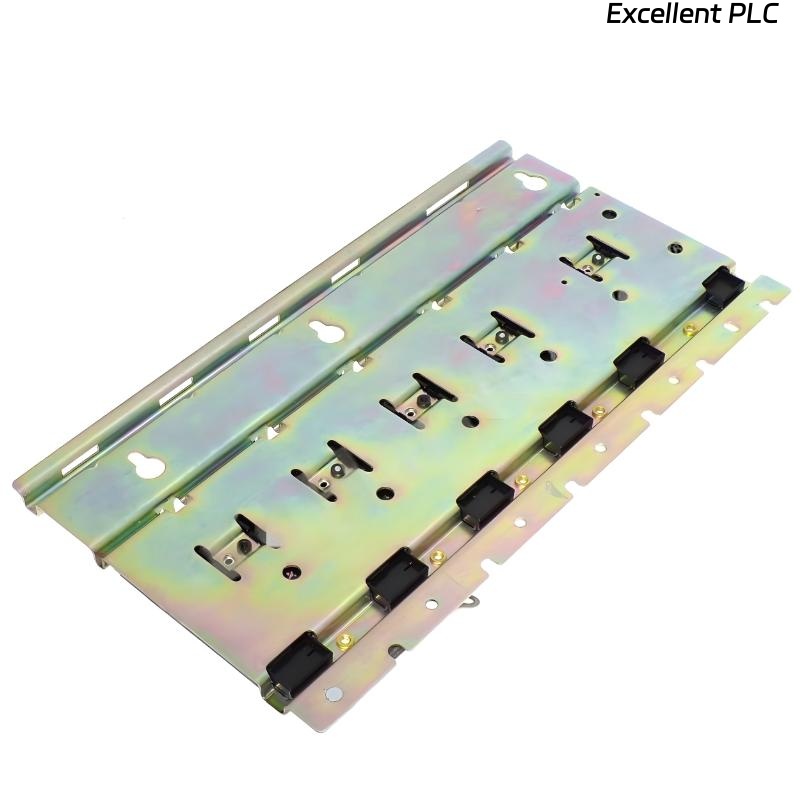

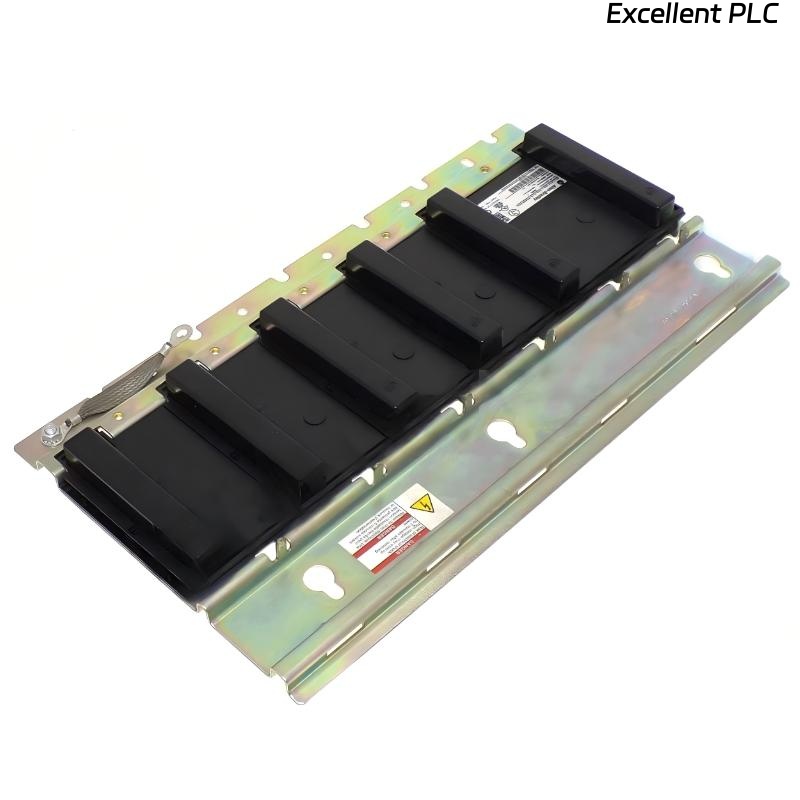

The Allen-Bradley 2094-PRS5 is a slim power rail designed for use within the Kinetix 6000 multi-axis servo drive system. As a key structural and electrical backbone, this component provides both mechanical mounting and integrated power distribution for servo drive modules, enabling a compact and highly efficient motion control architecture.

The 2094-PRS5 power rail is specifically engineered to support one Integrated Axis Module (IAM) along with up to four additional axis modules. Its slim design significantly reduces panel space requirements while maintaining robust electrical connectivity and thermal performance. Designed for compatibility with 230V and 460V drive systems, this power rail ensures flexibility across a wide range of industrial automation environments.

By integrating DC bus power and control interconnections into a single rail system, the 2094-PRS5 simplifies installation, reduces wiring complexity, and improves overall system reliability. It is widely used in high-performance motion applications requiring synchronized multi-axis control.

---

Product Specifications

---

Applications

• Multi-axis motion control systems in automated production lines where synchronized servo performance is required

• Packaging machinery, enabling coordinated control of conveyors, cutters, and sealing units

• CNC and machining centers, supporting compact servo drive configurations with high precision

• Robotics and assembly systems, where space optimization and modular expansion are critical

• Material handling systems, including pick-and-place, indexing, and transfer operations

• Automotive manufacturing lines, especially in high-speed, repetitive motion processes

---

Advantages

• Compact slim design significantly reduces control cabinet footprint while maintaining full functionality

• Integrated power distribution architecture eliminates the need for complex external wiring

• Supports up to 5-axis configurations, enabling flexible system expansion

• Improved installation efficiency through modular plug-and-play rail structure

• High system reliability due to reduced wiring errors and secure module connections

• Optimized thermal management via structural heat dissipation design

• Seamless integration with Kinetix 6000 servo systems ensures consistent performance

FAQ

1. How does the power rail distribute power between modules?
   The power rail integrates a shared DC bus structure that distributes power directly across all connected modules, eliminating the need for individual wiring between drives.
2. Can the 2094-PRS5 be extended for more than 5 axes?
   No, this model is specifically designed for a maximum of 5 axes (1 IAM + 4 modules). Larger systems require different rail configurations.
3. Is the power rail compatible with all Kinetix 6000 modules?
   Yes, it is designed to work seamlessly with standard Kinetix 6000 IAM and axis modules within its capacity range.
4. What is the role of the IAM module in this configuration?
   The IAM (Integrated Axis Module) serves as the primary power input and control interface, distributing power through the rail to additional modules.
5. Does the rail require additional grounding?
   Yes, proper grounding through the panel and system grounding scheme is required to ensure safety and noise immunity.
6. How is alignment ensured during installation?
   The rail includes precise mechanical guides that align modules correctly, ensuring secure electrical and physical connections.
7. What happens if one module fails on the rail?
   A failure in one module does not physically interrupt the rail, but it may affect system performance depending on configuration and fault handling logic.
8. Is hot-swapping supported for modules on this rail?
   No, modules should not be installed or removed while the system is powered to avoid damage or safety risks.
9. How does the rail handle heat dissipation?
   Heat is passively dissipated through the rail’s metallic structure and proper panel ventilation design.
10. Can this rail be used in high-vibration environments?
    Yes, when properly mounted, it is suitable for industrial environments, but additional vibration dampening may be recommended for extreme conditions.
