Allen Bradley 2094-PRS8 Kinetix 6000 Slim Power Rail

Product Introduction

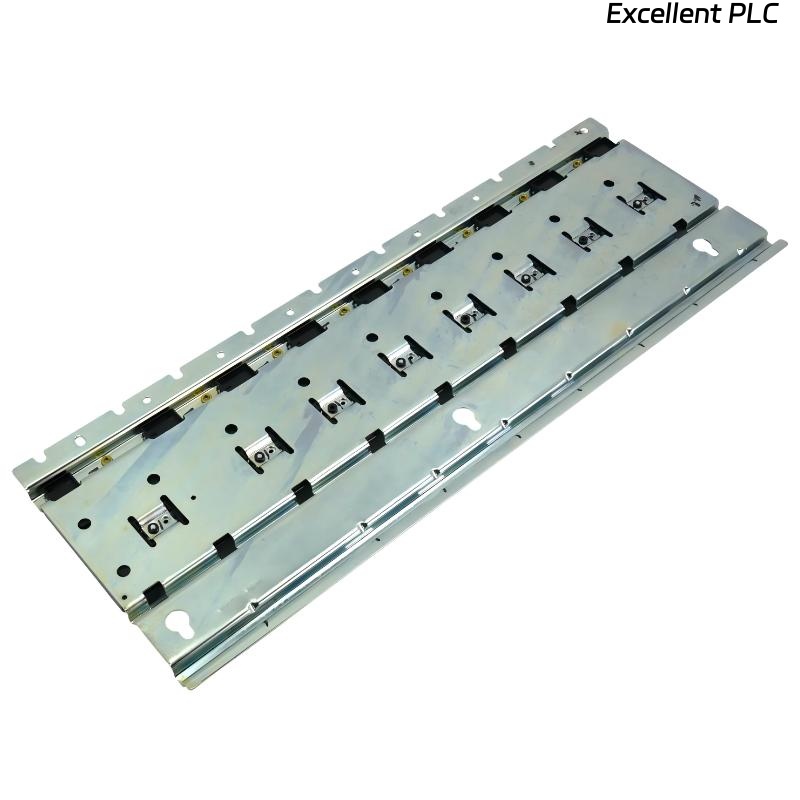

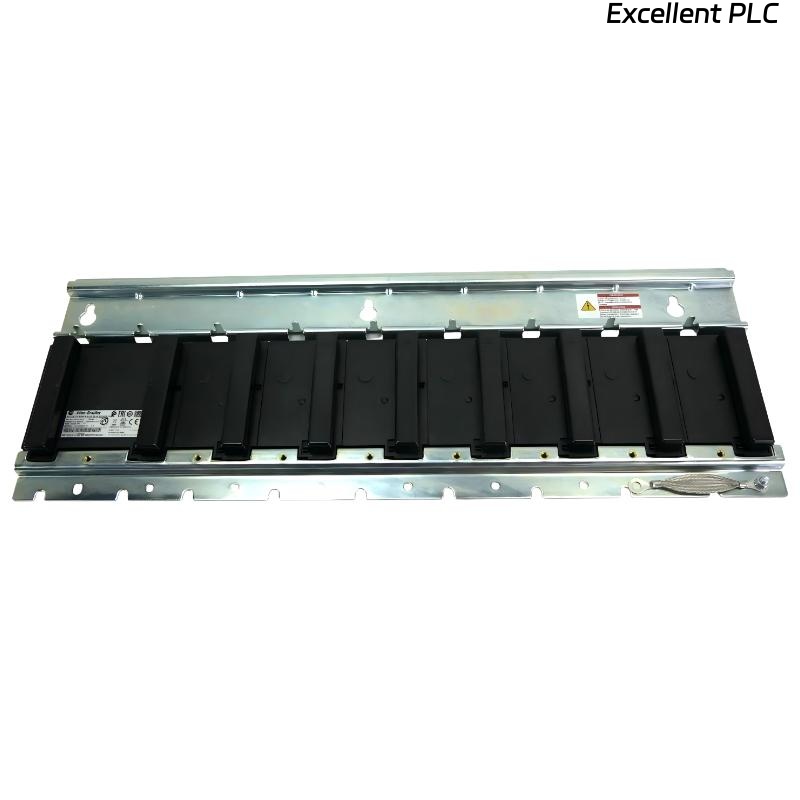

The Allen-Bradley 2094-PRS8 is a slim power rail engineered for the Kinetix 6000 multi-axis servo drive system, providing a unified platform for both mechanical mounting and electrical power distribution. It serves as a critical infrastructure component in high-performance motion control systems, enabling efficient integration of multiple servo drive modules within a compact cabinet design.

Designed to support up to 8 axes, the 2094-PRS8 accommodates one Integrated Axis Module (IAM) and up to seven additional axis modules. Its compatibility with 230V and 460V drive systems ensures adaptability across various industrial environments, while maintaining stable and consistent power delivery through its integrated DC bus structure.

The slim and elongated design of the rail allows for extended system configurations without significantly increasing panel space requirements. By consolidating power distribution and module interconnection into a single structure, the 2094-PRS8 reduces installation complexity, enhances system reliability, and supports scalable motion control architectures.

---

Product Specifications

---

Applications

• Large-scale multi-axis motion systems requiring synchronized control of multiple servo drives

• Automated assembly and production lines, where high axis count improves throughput and flexibility

• Robotics and complex motion platforms, supporting coordinated movement across many joints

• Packaging and converting machinery, especially for high-speed, multi-process operations

• CNC and precision manufacturing systems, enabling extended axis configurations in limited space

• Material handling and logistics systems, improving control of multi-point transport and positioning

---

Advantages

• Supports up to 8-axis configurations, enabling highly scalable motion control systems

• Slim and space-efficient design optimizes control cabinet layout despite extended length

• Integrated DC bus architecture reduces external wiring and simplifies installation

• High system integration minimizes connection points and improves overall reliability

• Flexible voltage compatibility supports both 230V and 460V applications

• Efficient installation and expansion through modular rail-based structure

• Robust passive thermal performance eliminates the need for additional cooling hardware

FAQ

1. What is the maximum axis configuration supported by the 2094-PRS8?
   It supports one IAM module and up to seven additional axis modules, providing a total of eight axes.
2. Is the power rail suitable for both 230V and 460V systems?
   Yes, it is designed to operate with both voltage levels depending on the connected drive modules.
3. How is power distributed across all modules?
   Power is distributed through an integrated DC bus that runs along the entire length of the rail.
4. Can different types of axis modules be combined on the same rail?
   Yes, compatible Kinetix 6000 modules can be combined, provided system limits and configuration rules are followed.
5. Does the rail require special cooling measures?
   Typically no, as it relies on passive heat dissipation, but proper cabinet ventilation is recommended.
6. What happens if one module on the rail fails?
   The failure of a module does not interrupt the physical rail, but it may impact system performance depending on the control setup.
7. Is it possible to expand beyond 8 axes using this rail?
   No, expansion beyond 8 axes requires a different rail configuration or system architecture.
8. Are there alignment features for installation?
   Yes, the rail includes built-in guides to ensure accurate module placement and secure connections.
9. Is electrical isolation provided between modules?
   No, modules share a common DC bus, so proper protection and system design are required.
10. Can modules be installed while the system is energized?
    No, installation or removal should only be performed when the system is powered off.
