Product Introduction

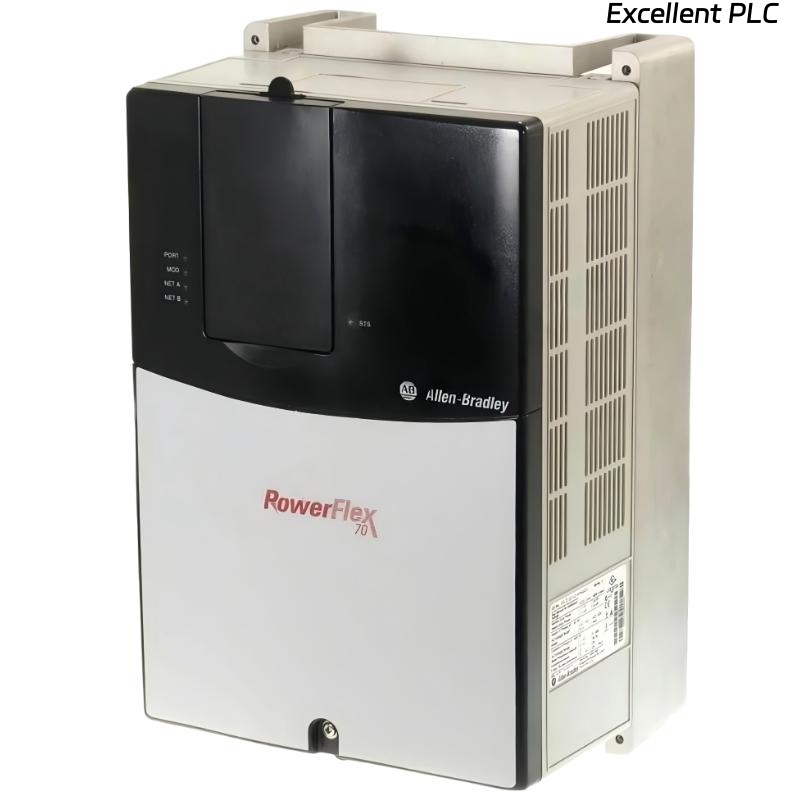

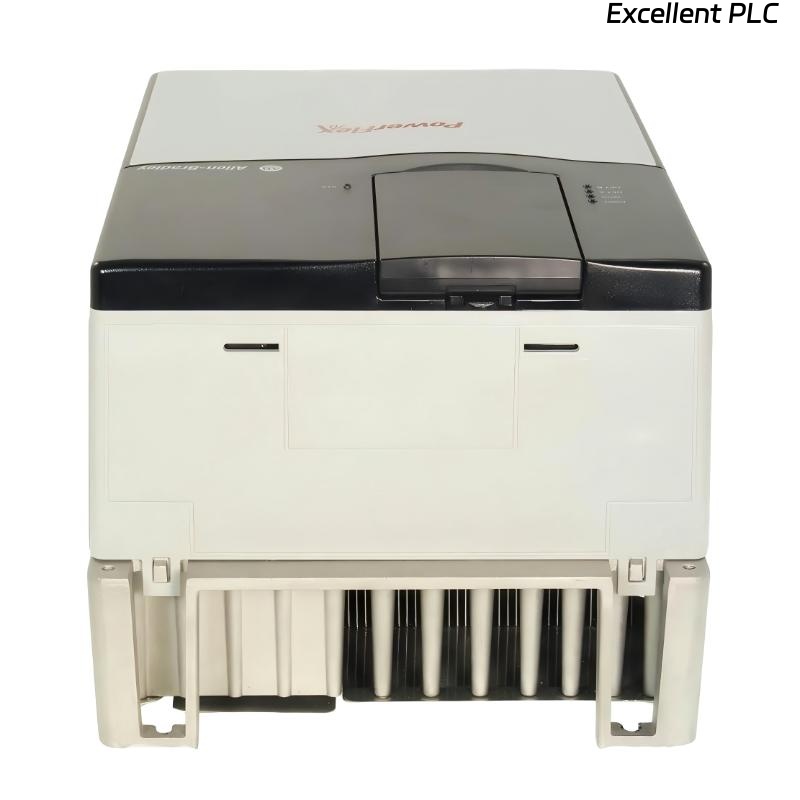

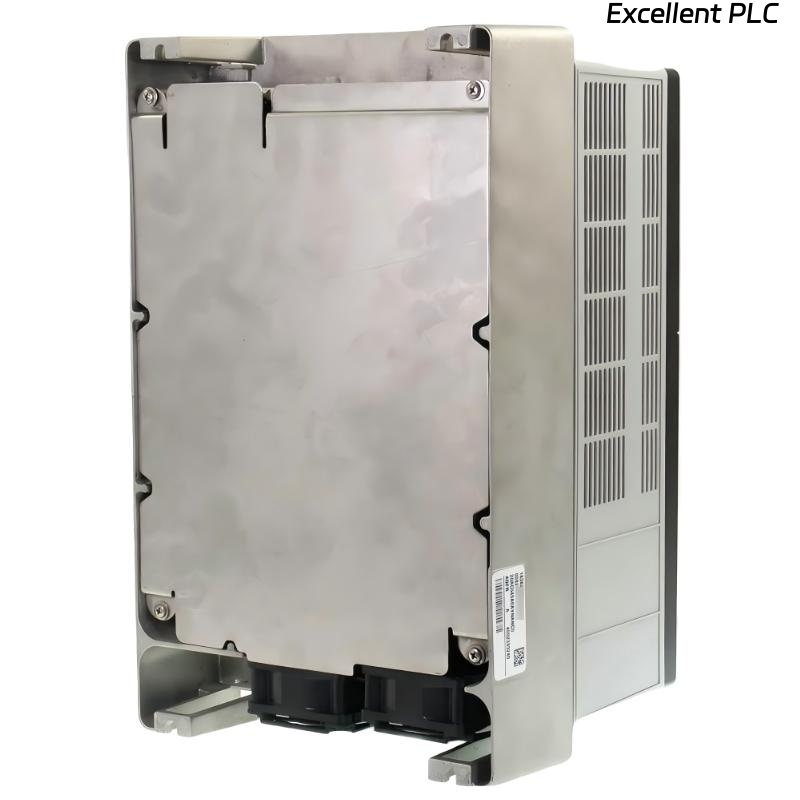

The Allen-Bradley 20AC043A0AYNANC0 is a high-capacity AC drive from the PowerFlex 70 series, designed to deliver reliable and efficient motor control in demanding industrial applications. Built for performance and flexibility, this drive supports precise speed regulation, torque control, and stable operation across a wide range of machinery.
With a power rating of 22 kW (30 HP) and an output current of 42 A, this model is ideal for heavier-duty applications requiring higher power and consistent performance. It operates on a 400 VAC three-phase power supply, making it fully compatible with standard industrial electrical systems. The integrated braking capability enhances control during deceleration and load handling, especially in applications with frequent stopping cycles.
The drive features a panel-mounted design and includes a blank interface module cover, allowing users to configure communication and control options based on system requirements. Its robust construction, combined with flexible configuration, makes it a dependable solution for complex automation environments.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | AC Drive |
| Model Number | 20AC043A0AYNANC0 |
| Manufacturer | Allen-Bradley |
| Series | PowerFlex 70 |
| Input Voltage | 400 VAC |
| Phase Type | Three-phase |
| Output Current | 42 A |
| Power Rating | 22 kW / 30 HP |
| Mounting Type | Panel mount |
| Control Type | Variable Frequency Drive (VFD) |
| Brake Function | Integrated braking capability |
| Interface Module | Blank cover (expandable) |
| Cooling Method | Air-cooled |
| Protection Features | Overcurrent, overvoltage, thermal protection |
| Application Level | Medium to high-duty industrial control |
| Dimensions | 350 x 248.4 x 178.6 mm |
| Weight | 9.25 kg |
Applications
• Heavy-duty pump and fan systems, delivering efficient speed and energy control
• Large conveyor systems, ensuring smooth and controlled material transport
• Industrial processing equipment, requiring stable high-power motor control
• Material handling machinery, supporting high-load and continuous operation
• HVAC systems, optimizing energy usage in large-scale installations
• Manufacturing lines, where consistent torque and performance are critical
Advantages
• High 22 kW (30 HP) output capacity supports demanding industrial applications
• Integrated braking function improves stopping accuracy and operational safety
• Flexible interface expansion allows customized communication solutions
• Reliable 400 VAC three-phase operation ensures compatibility with industrial systems
• Energy-efficient motor control helps reduce operational costs
• Robust design and construction for long-term industrial use
• Comprehensive protection features enhance system reliability and safety
