Product Introduction

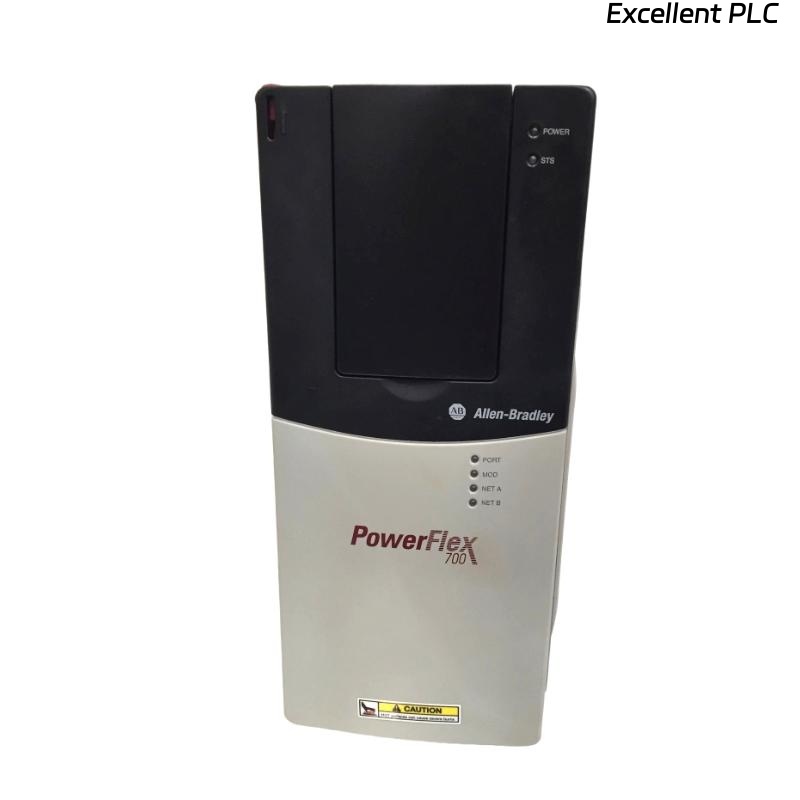

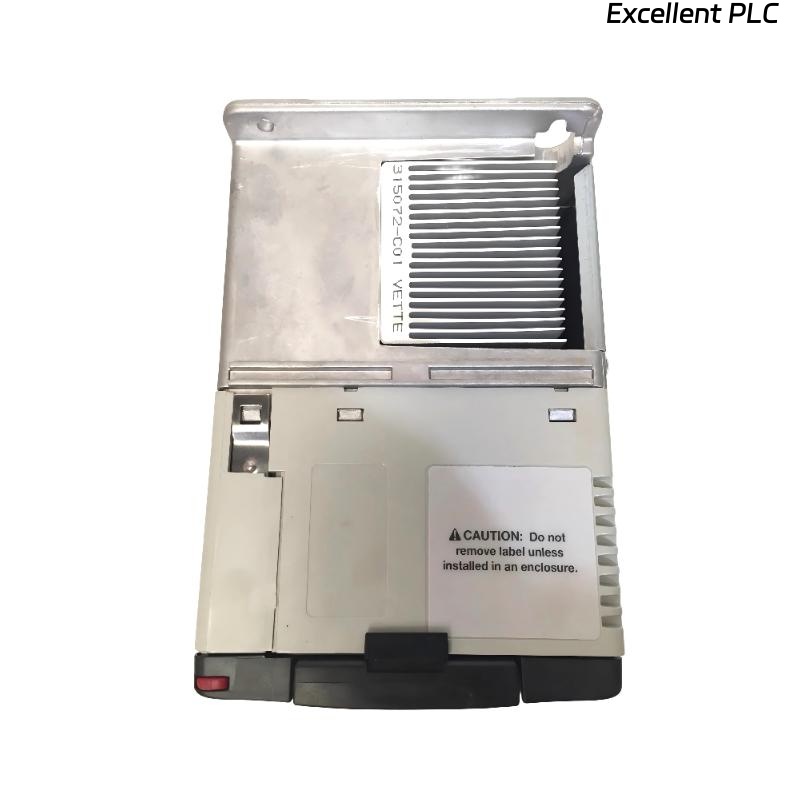

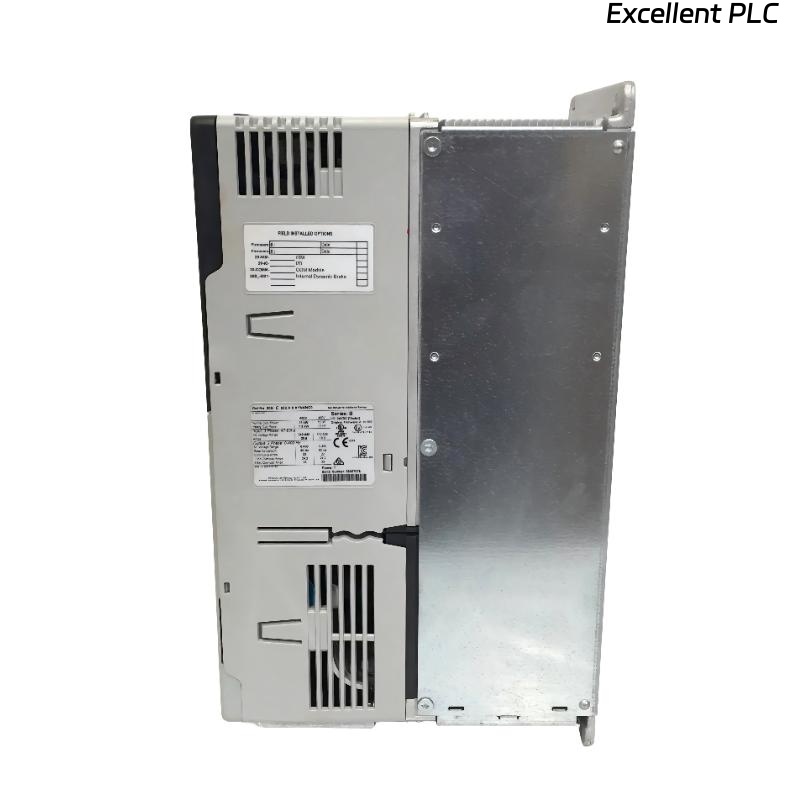

The Allen Bradley 20BC022A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable frequency drive designed to deliver precise speed and torque control for AC motors. This drive provides energy-efficient operation, robust protection, and flexible integration options for industrial automation and process control systems.
The 20BC022A0AYNANC0 model is suitable for medium-duty applications, enabling smooth motor operation and reliable performance in manufacturing, material handling, HVAC, and process automation environments. Its modular design allows installation in control panels and motor control centers, while integrated safety features enhance system protection and operational reliability.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | PowerFlex 700 AC Drive |
| Model Number | 20BC022A0AYNANC0 |
| Input Voltage | 380–480 VAC, 3-phase, 50/60 Hz |
| Input Current | 23 A (typical, depending on load) |
| Output Power | 11 kW (approximate nominal rating) |
| Output Voltage | 0–480 VAC, 3-phase |
| Control Type | V/Hz, Sensorless Vector, or Closed-Loop Vector Control |
| Brake Function | Optional brake IGBT (depends on configuration) |
| Communication | RS485 or optional network modules |
| Filter / Choke | CE filter / Common Mode Choke (optional) |
| Frame Size | Frame 1 (compact installation) |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Operator Interface | HIM interface or blank cover |
| Operating Mode | Continuous industrial duty |
| Cooling Method | Forced air cooling with integrated fans |
| Protection Features | Overvoltage, undervoltage, overload, short-circuit, thermal protection |
| Mounting Type | Panel / Wall-mounted installation |
| Dimensions (W × H × D) | 336 × 135 × 200 mm |
| Weight | 7.03 kg |
Product Applications
The PowerFlex 700 AC Drive 20BC022A0AYNANC0 is widely used in industrial and commercial applications requiring precise motor control, energy efficiency, and reliable operation:
-
Pumps, fans, and compressors in process industries
-
Conveyor systems and material handling equipment
-
Packaging, bottling, and production machinery
-
HVAC and climate control systems
-
Industrial process automation in chemical, oil, and gas plants
-
Motor control in manufacturing and assembly lines
This drive ensures smooth start/stop operation, precise torque control, and efficient energy utilization, enhancing the overall reliability and performance of connected systems.
Product Advantages
• Precise Motor Control
Supports multiple control modes including V/Hz and vector control, ensuring accurate speed and torque regulation.
• Energy Efficiency
Optimizes motor operation, reducing power consumption and operational costs.
• Integrated Protection
Includes overvoltage, undervoltage, overload, short-circuit, and thermal protection to safeguard both drive and motor.
• Flexible Communication
RS485 or optional network modules allow seamless integration into industrial control systems.
• Compact and Modular Design
Frame 1 construction with IP20 / NEMA Type 1 allows panel or wall-mounted installation, saving space while ensuring reliability.
• Maintenance-Friendly
HIM interface or blank cover allows simple commissioning and local control without specialized tools.
• Industrial Robustness
Engineered for continuous duty in harsh industrial environments, resistant to vibration, dust, and temperature variations.
