Product Introduction

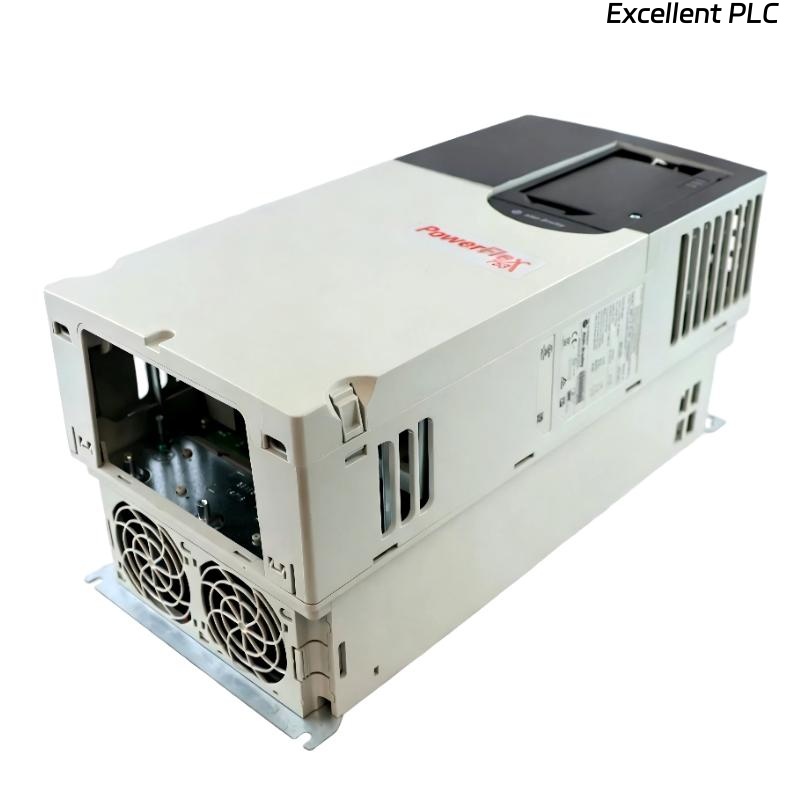

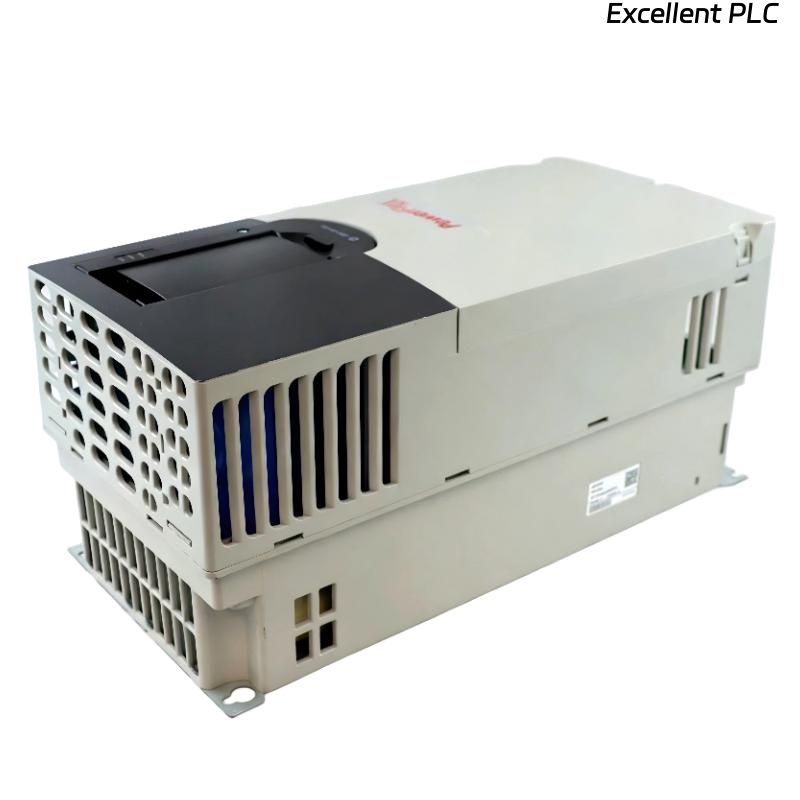

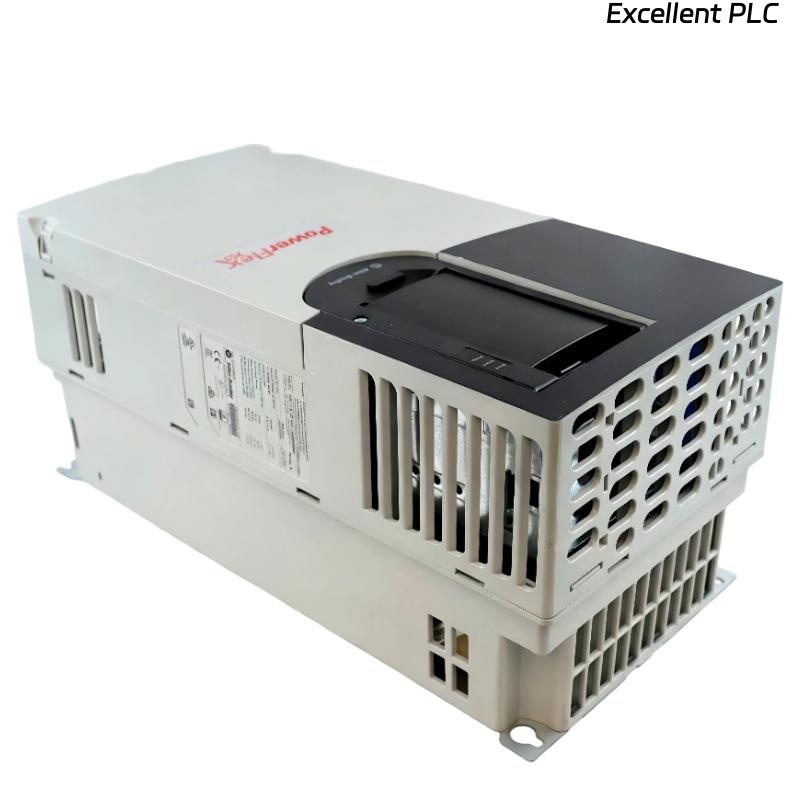

The Allen-Bradley 20F11NC060JA0NNNNN PowerFlex 753 AC Drive is a robust, high-capacity AC drive engineered for demanding industrial motor control applications. Part of the advanced PowerFlex 753 family from Rockwell Automation, this model delivers consistent power, precise motor control, and flexibility for integration into complex systems.
Designed for 400 VAC input and 540 VDC DC bus operation, it offers a rated output of 30 kW (40 HP) and 60 A, making it ideal for medium to heavy-duty industrial machinery. The air-cooled open-type design includes precharge functionality and integrated filtering, ensuring safe startup, low electrical stress, and reliable operation in continuous-duty environments.
Although this drive does not include a HIM (Human Interface Module), configuration and monitoring can be performed using external interfaces or network communication modules, making it suitable for networked automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 20F11NC060JA0NNNNN |
| Series | PowerFlex 753 |
| Cooling Method | Air Cooled |
| Input Type | AC Input with Precharge |
| Input Voltage | 400 VAC / 540 VDC |
| Power Rating | 30 kW / 40 HP |
| Output Current | 60 A |
| Enclosure Type | Open Type |
| Protection Level | IP20 / IP00 |
| Filtering | Integrated Filtering |
| Internal Components | Internal Transistor |
| Jumper | Installed |
| Operator Interface | No HIM |
| Control Capability | Advanced Motor Control |
| Mounting Type | Panel Mount |
| Dimensions | 474 × 212 × 222 mm |
| Weight | 13.6 kg |
Applications
• Conveyor and Material Handling Systems – Provides stable speed control and smooth operation for heavy loads.
• Pumps and Compressors – Supports energy-efficient variable speed operation for fluid handling systems.
• Industrial Fans and Blowers – Ensures reliable airflow control with optimized energy usage.
• Mixers and Processing Equipment – Maintains consistent torque output for uniform processing.
• General Manufacturing Equipment – Suitable for various industrial machines requiring robust motor control.
Advantages
• High Power Performance – Rated at 30 kW / 40 HP, suitable for medium to heavy-duty applications.
• Flexible Power Input – Supports AC input and 540 VDC DC bus, enhancing system adaptability.
• Precharge Protection – Limits inrush current during startup, protecting internal components.
• Efficient Air Cooling – Ensures reliable thermal management during continuous operation.
• Integrated Filtering – Enhances EMC performance and reduces electrical noise.
• Modular Interface Options – No built-in HIM allows use of external HMIs or network control modules.
• Reliable Industrial Operation – Designed for long-term, continuous duty with stable performance.
