Product Introduction

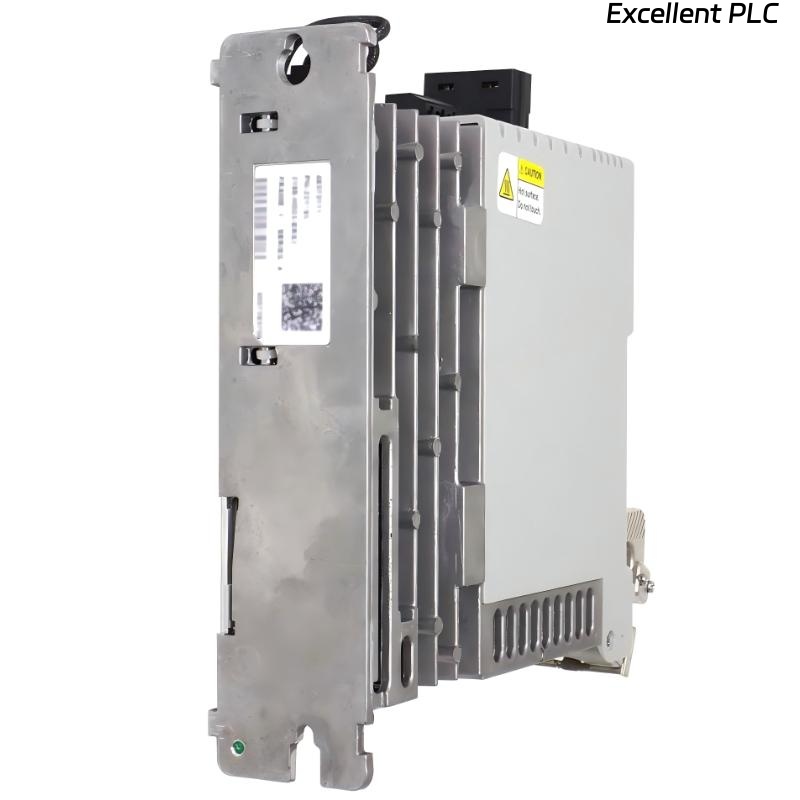

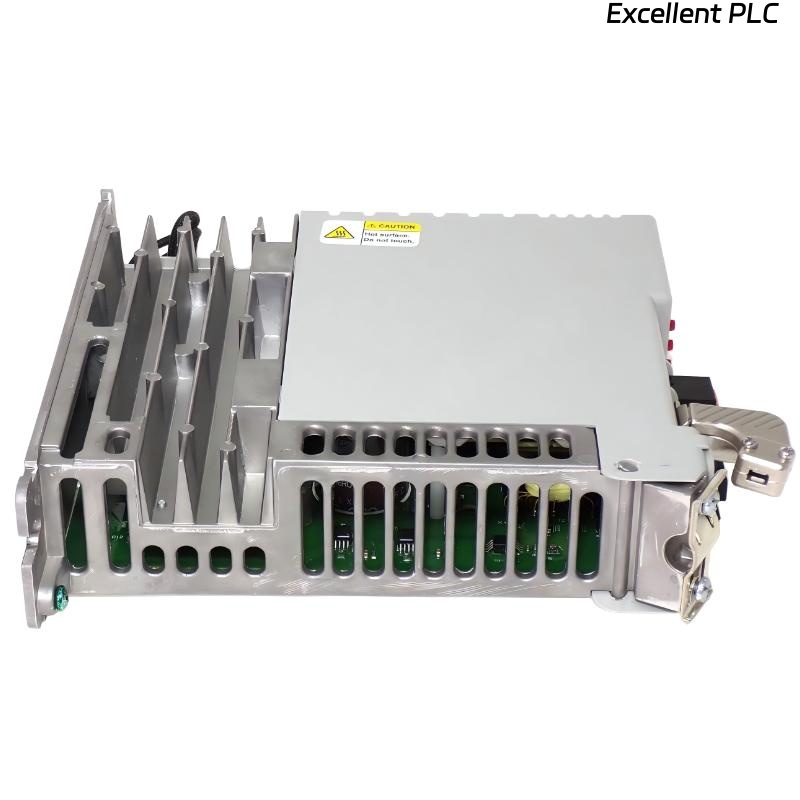

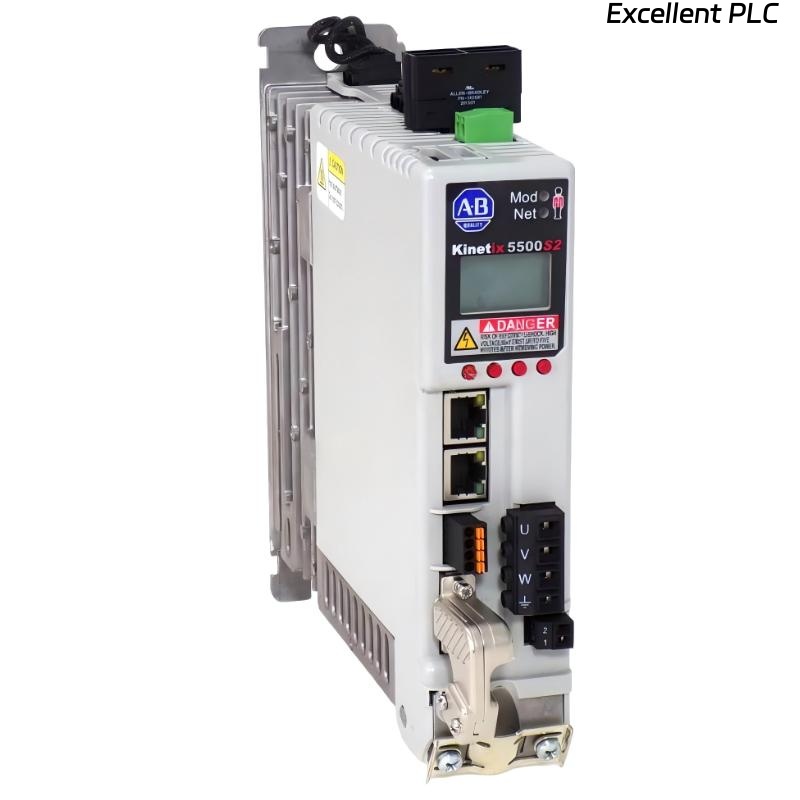

The Allen Bradley 2198-H003-ERS2 is a compact and high-performance servo drive from the Kinetix 5500 series developed by Rockwell Automation. It is designed to deliver precise, responsive motion control while maintaining a streamlined system architecture for modern industrial automation environments.
Supporting both single-phase and three-phase input with a wide voltage range of 190–528 VAC, this drive offers excellent flexibility for global applications. Its compact size and efficient design make it ideal for installations where panel space is limited, without compromising control performance.
The 2198-H003-ERS2 features integrated safety functionality, allowing direct implementation of safety requirements without additional external modules. Combined with EtherNet/IP communication capabilities, it enables seamless integration into distributed control systems, making it well-suited for scalable and synchronized motion applications.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 2198-H003-ERS2 |
| Series | Kinetix 5500 |
| Input Voltage Range | 190–528 VAC |
| Number of Phases | 1 and 3 |
| Peak Current Output | 2.5 A |
| Safety Function | Integrated Safety |
| Communication Interface | EtherNet/IP |
| Control Mode | Servo Control |
| Cooling Method | Air Cooling |
| Mounting Type | Panel Mount |
| Application Level | Compact Motion Systems |
| Dimensions | 215 x 53 x 200 mm |
| Weight | 1.4 kg |
Applications
● Compact automation equipment where limited cabinet space requires small and efficient drive solutions
● Light-duty packaging machines with precise positioning and repeatable motion cycles
● Material handling units such as small conveyors and transfer modules
● Assembly workstations requiring accurate and stable motion control
● Electronics manufacturing systems where precision and consistency are critical
● Distributed motion control systems using EtherNet/IP for synchronized operation
Advantages
● Wide input voltage range supports both single-phase and three-phase power systems, increasing installation flexibility
● Integrated safety functionality reduces the need for external safety components and simplifies wiring
● Compact and lightweight design makes it ideal for space-constrained control panels
● Reliable peak current output ensures stable operation for light-duty dynamic loads
● Seamless EtherNet/IP integration allows efficient communication and control within Rockwell systems
● Optimized for distributed motion enabling scalable system design and multi-axis coordination
