Product Introduction

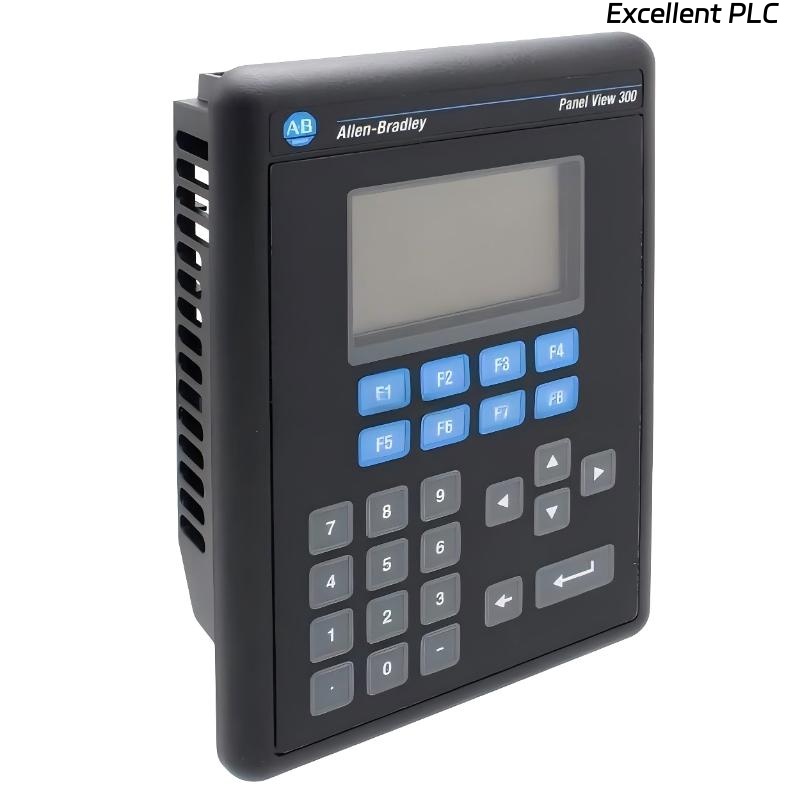

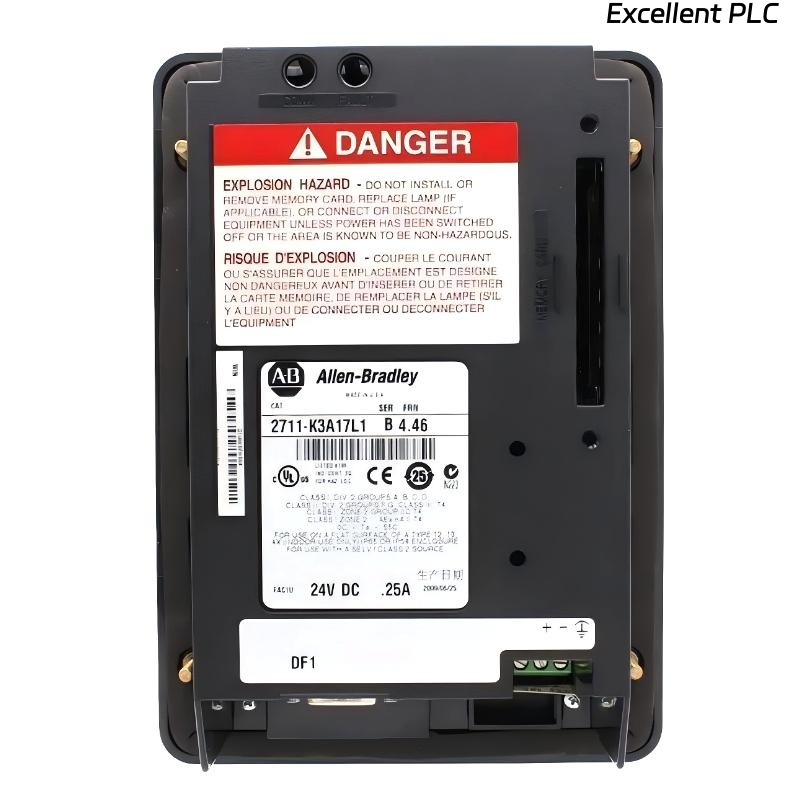

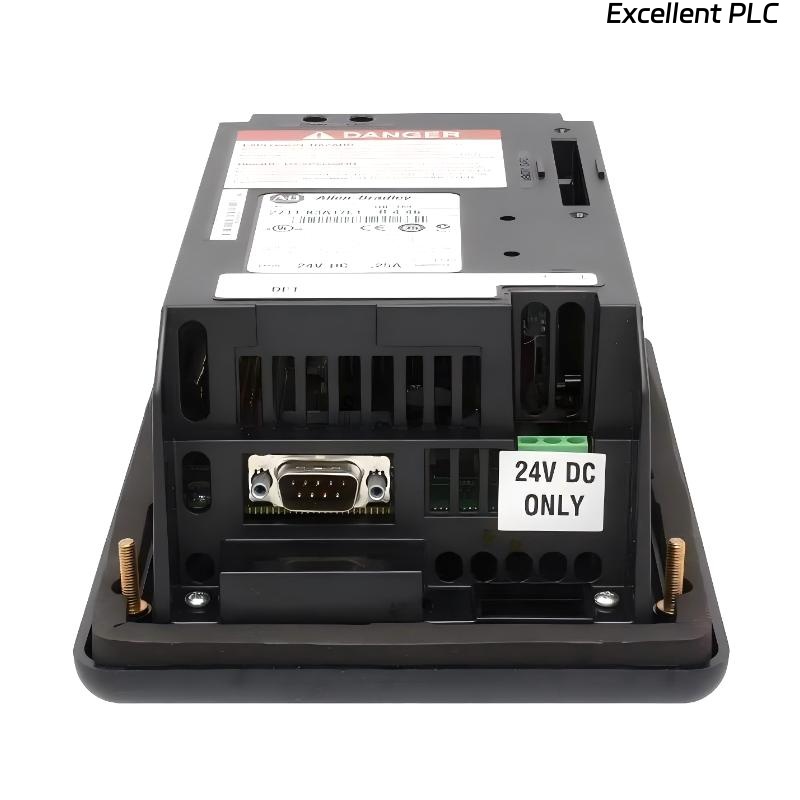

The Allen-Bradley 2711-K3A17L1 PanelView 300 Operator Interface is a compact and efficient HMI terminal designed for small-scale industrial automation applications. As part of the PanelView 300 series, this unit provides essential operator interface functionality, including monitoring, parameter input, and basic control tasks.
Equipped with a 3-inch monochrome display with a resolution of 128 × 64 pixels, the terminal allows clear visualization of key process parameters, alarms, and system status. The unit supports RS-232 (DF1) communication for seamless integration with Allen-Bradley controllers, while the printer port enables direct logging and reporting of operational data. Powered by 24 VDC, the device is suitable for use in compact control panels, OEM equipment, and small machinery where reliable visualization is required.
Its lightweight design of 0.673 kg and compact dimensions make it ideal for applications where space is constrained, while still providing operators with intuitive access to critical system information.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711-K3A17L1 |
| Series | PanelView 300 |
| Display Size | 3 inch |
| Display Type | Monochrome LCD |
| Resolution | 128 × 64 pixels |
| Input Type | Keypad & Touch (optional) |
| Communication Interface | RS-232 (DF1) |
| Printer Port | Yes |
| Input Voltage | 24 VDC |
| Mounting Type | Panel Mount |
| Protection Level | Industrial-grade front panel |
| Dimensions | 197 × 82 × 140 mm |
| Weight | 0.673 kg |
Applications
● Ideal for compact machine-level control systems, providing basic visualization and operator input
● Applied in OEM equipment where space-saving HMI integration is required
● Suitable for small process control tasks, such as parameter adjustments and status monitoring
● Used in printing and packaging machines, leveraging the built-in printer port for direct logging
● Effective for standalone machines, allowing localized control and monitoring
● Suitable for retrofit applications, replacing older push-button panels with a compact HMI interface
Advantages
● Compact and lightweight design allows easy installation in limited panel space
● Monochrome display ensures stable operation and low power consumption
● RS-232 (DF1) interface enables seamless integration with Allen-Bradley controllers
● Printer port provides direct logging and report generation
● 24 VDC input is compatible with standard industrial control systems
● Simplified configuration reduces engineering effort and commissioning time
● Cost-effective solution for basic operator interface needs
