Product Introduction

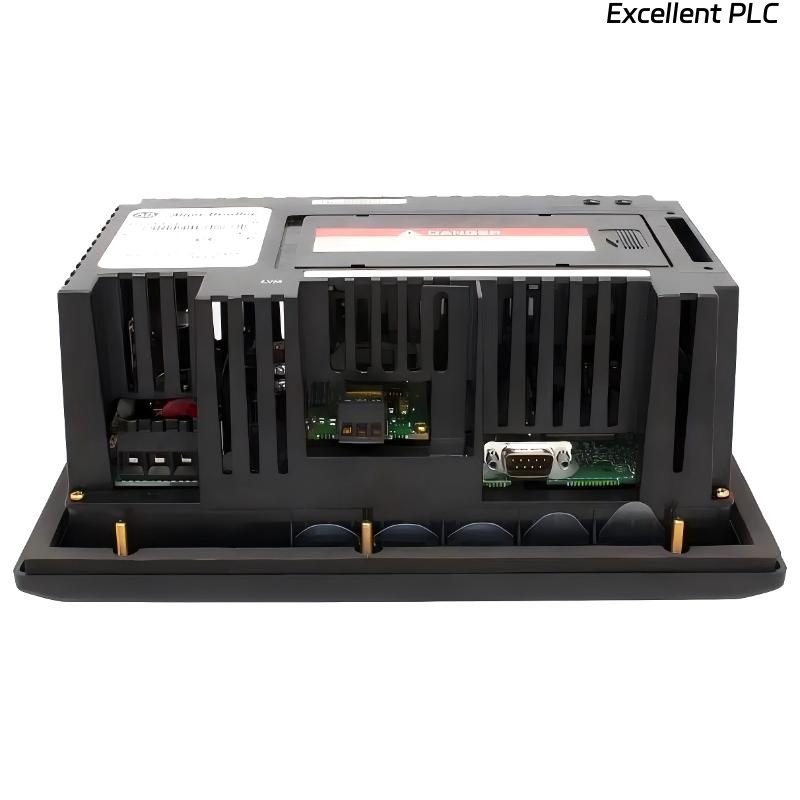

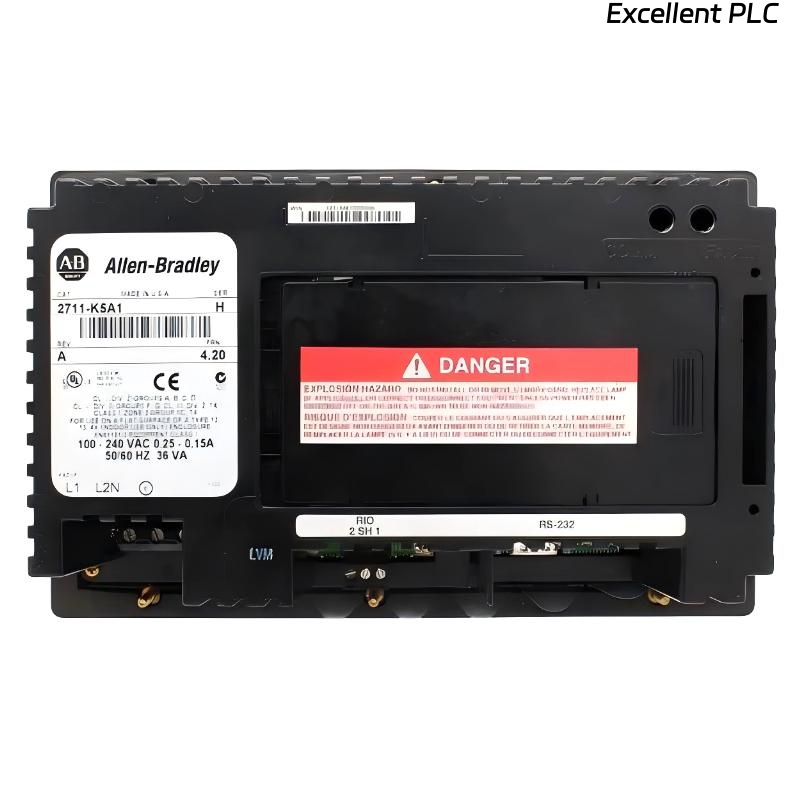

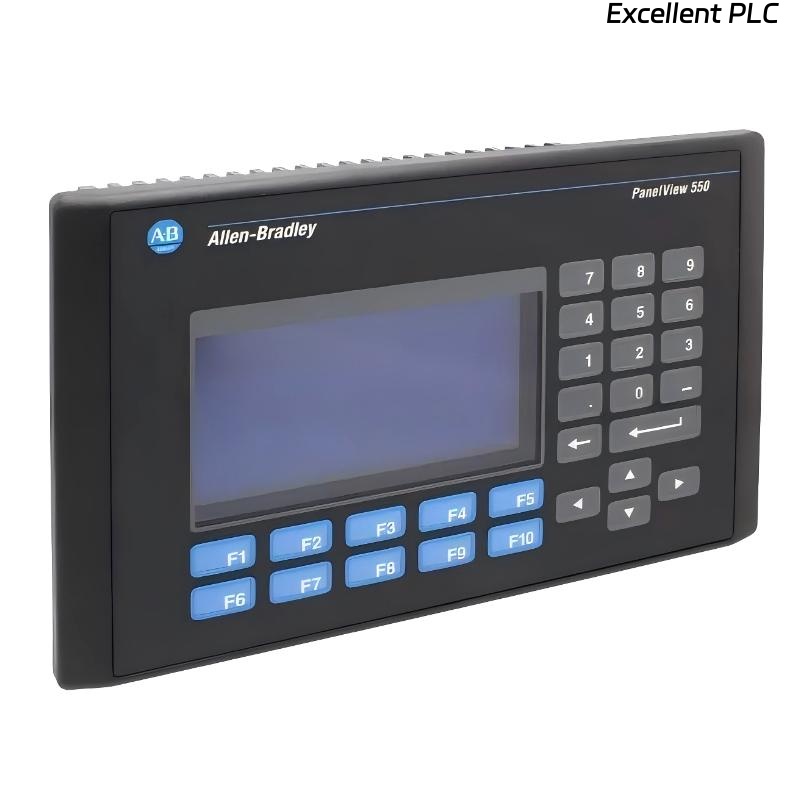

The Allen-Bradley 2711-K5A1 PanelView 550 Operator Interface is a reliable and compact HMI terminal designed for industrial automation applications requiring a small but functional operator interface. As part of the PanelView 550 series, this model provides essential visualization and control features for small- to medium-sized systems, offering a balance between functionality and cost-efficiency.
Equipped with a 5-inch monochrome display at 256 × 128 pixel resolution, the unit provides clear visualization of key process parameters, system status, and alarms. The integrated keypad allows operators to navigate screens, input values, and execute commands efficiently. The interface supports Remote I/O and RS-232 communication, enabling easy integration with Allen-Bradley controllers and other industrial devices.
The device operates on 100–240 VAC input at 50/60 Hz, ensuring compatibility with standard industrial power sources. Its panel-mount design, lightweight construction (1.2 kg), and compact dimensions make it suitable for OEM equipment, small machinery, and space-constrained control panels.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711-K5A1 |
| Series | PanelView 550 |
| Display Size | 5 inch |
| Display Type | Monochrome LCD |
| Resolution | 256 × 128 pixels |
| Input Type | Keypad |
| Communication Interface | Remote I/O, RS-232 |
| Input Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Mounting Type | Panel Mount |
| Protection Level | Industrial-grade front panel |
| Dimensions | 266 × 106 × 167 mm |
| Weight | 1.2 kg |
Applications
● Suitable for small- to medium-scale industrial control systems, providing essential monitoring and operator interaction
● Applied in OEM machinery, packaging, and material handling equipment with limited panel space
● Ideal for Remote I/O systems, enabling integration with distributed control devices
● Used for parameter input and basic process monitoring, enhancing operator efficiency
● Suitable for retrofit projects, upgrading older HMI panels while maintaining system compatibility
● Effective for standalone equipment, providing localized control and monitoring capabilities
Advantages
● Compact and lightweight design allows installation in constrained control panels
● Monochrome display ensures clear visibility and low power consumption
● Keypad interface provides precise and reliable operator input
● Supports Remote I/O and RS-232 for flexible connectivity with controllers
● Wide input voltage range (100–240 VAC) supports various industrial power standards
● Panel-mount construction provides robustness suitable for industrial environments
● Cost-effective solution for basic visualization and control requirements
