Product Introduction

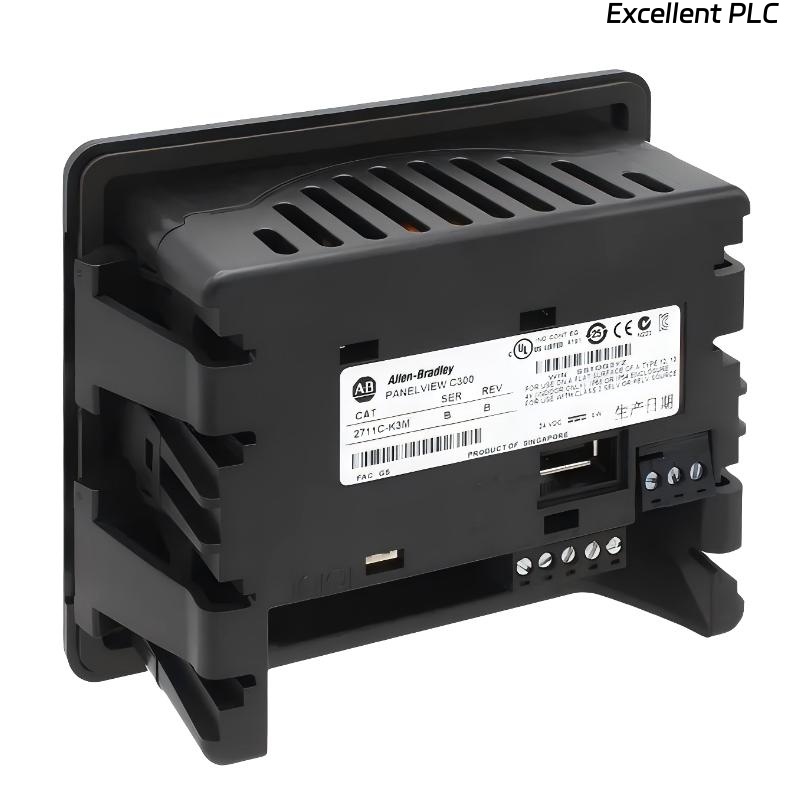

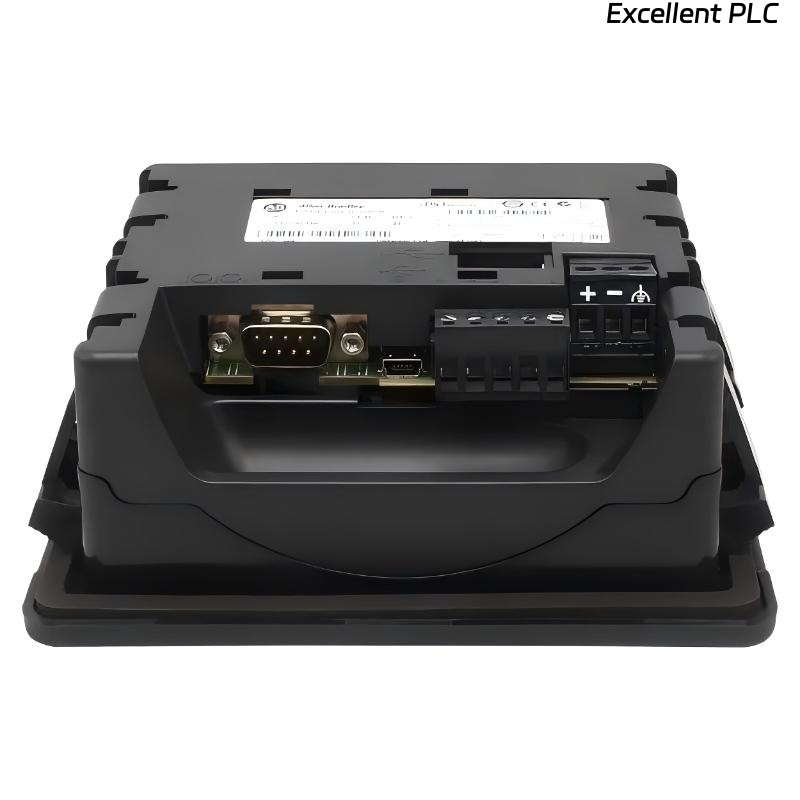

The Allen-Bradley 2711C-K3M PanelView C300 is a compact and cost-effective graphical human-machine interface (HMI) terminal designed for small automation systems and machine-level control applications. As part of the PanelView Component family, this model emphasizes simplicity, ease of use, and efficient integration with compact control panels.

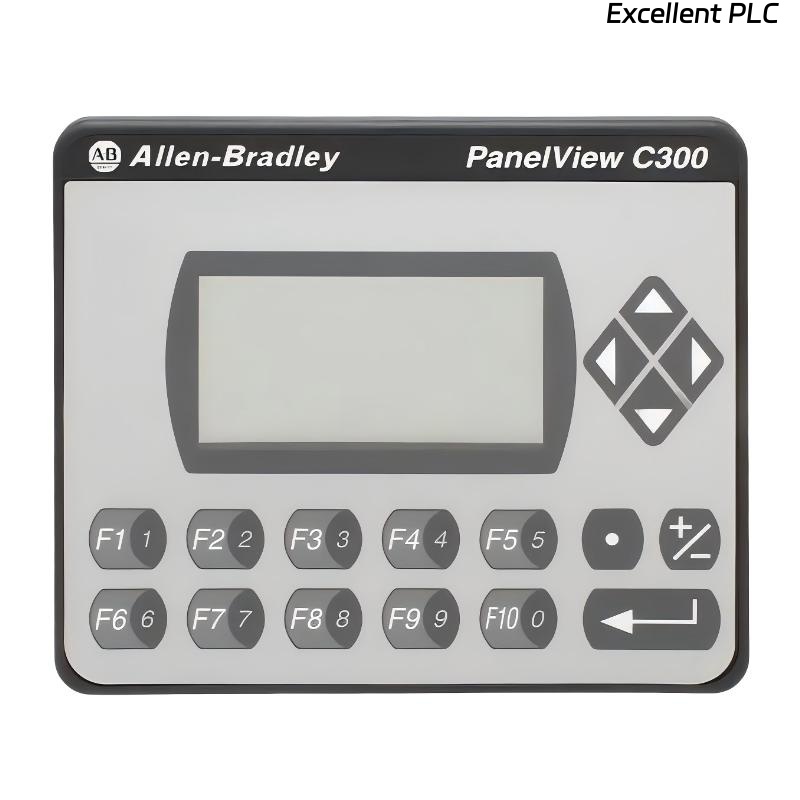

The equipment is equipped with a 3-inch monochrome display screen, which clearly and intuitively displays process parameters, machine status, and basic alarm information. The interface features numeric keys and function keys, facilitating accurate and reliable input by the operator, making it particularly suitable for environments where touchscreens are inconvenient to use.
The PanelView C300 is powered by a 24V DC power supply, making it ideal for modern control systems that rely on DC power distribution. Its lightweight and compact design makes it particularly suitable for OEM equipment, stand-alone machines, and applications with limited installation space.
Product Specifications
| scope | describe |
|---|---|
| Product Model | 2711C-K3M |
| series | PanelView component C300 |
| Display size | 3 inches |
| Display type | monochrome LCD |
| Display Category | Graphical component human-machine interface terminal |
| solve | Standard for compact monochrome displays |
| Input type | numeric keys and function keys |
| Communication interface | Serial communication (a typical feature of the component series) |
| Input voltage | 24V DC |
| Installation type | Panel mounting |
| Protection level | Industrial front panel protection |
| aspect | 139 × 55 × 119 mm |
| weight | 0.3 kg |
app
● Ideal for small machine control systems , providing basic operator interaction and monitoring functions.
● Widely used in OEM equipment , especially suitable for applications with strict requirements for compact size and low cost.
● Suitable for simple automation tasks , such as parameter setting, status display, and alarm indication.
● Suitable for packaging, labeling, and assembly machinery that only requires the most basic HMI functions.
● It can be used in standalone devices , enabling local control without the need for complex vision systems.
● Suitable for renovation projects , replacing traditional button panels with a compact human-machine interface solution.
Advantages
● Compact size, suitable for installation in space-constrained control panels.
● Numeric keys and function keys provide reliable and accurate input , especially in harsh environments.
● The monochrome display ensures low power consumption and stable operation.
● 24VDC power supply supports integration with standard industrial control systems
● Simple configuration reduces engineering complexity and setup time.
● The lightweight design improves ease of installation and maintenance.
● A cost-effective solution that meets basic human-computer interface requirements , avoiding unnecessary complexity.
