Product Introduction
The Allen-Bradley 2711C-T6T PanelView C600 Operator Interface is a versatile and high-performance graphic component HMI terminal designed for mid-range industrial automation and machine-level control applications. Part of the PanelView Component series, this model combines a large, full-color display with multiple communication options, providing a flexible and user-friendly interface for industrial control systems.

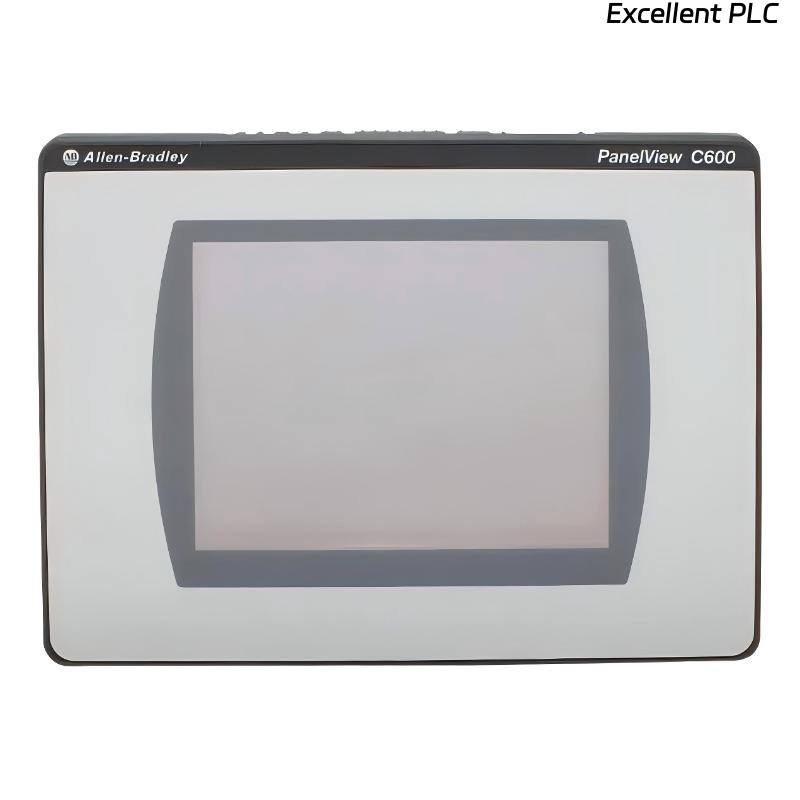

This HMI features a 6-inch color TFT touchscreen with a resolution of 320 × 240 pixels, delivering sharp, clear visuals of process data, system status, and alarms. The touchscreen allows intuitive navigation and real-time adjustment of parameters, improving operational efficiency and reducing operator errors.

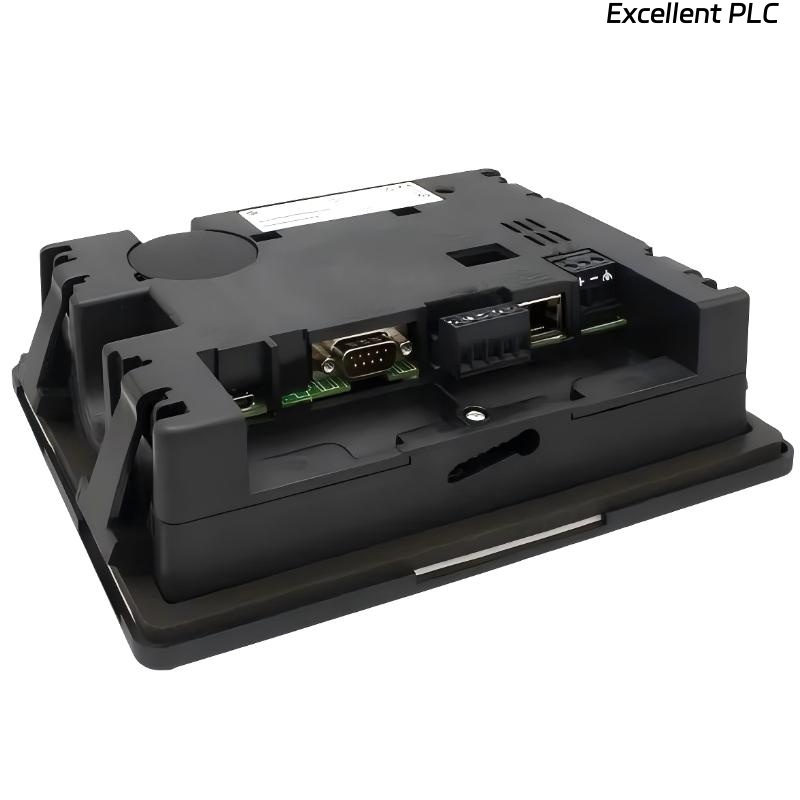

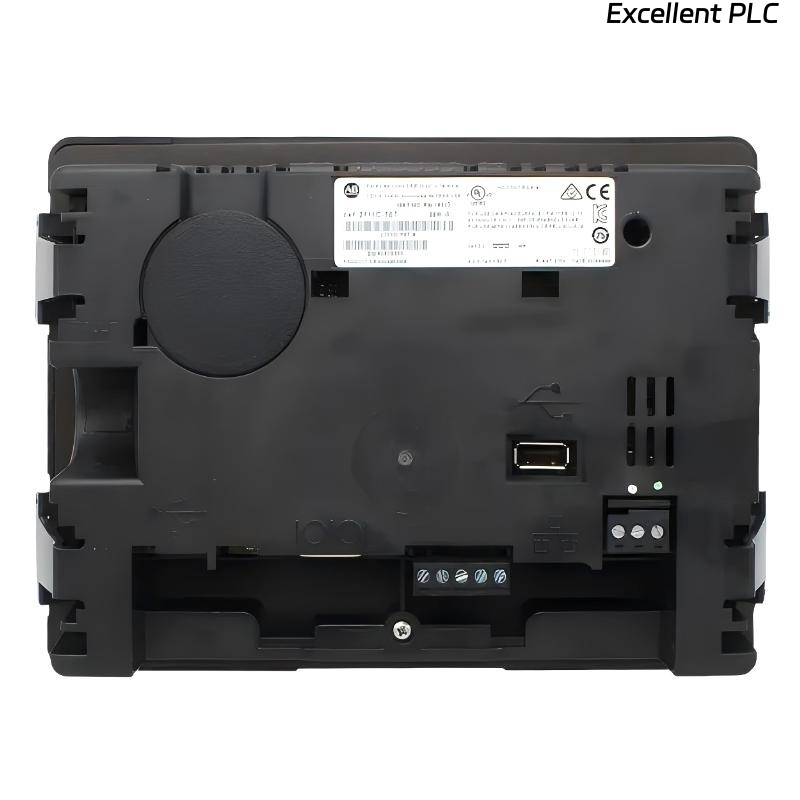

The device supports multiple communication interfaces including RS-232 (DH-485/DF1), RS-422/485, and an RJ-45 Ethernet port, allowing integration with both legacy and modern industrial networks. Additionally, a USB device port is provided for programming and configuration, simplifying deployment. Powered by 24 VDC, the 2711C-T6T is well-suited for compact control panels, standalone machines, and distributed automation systems requiring robust operator interfaces.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711C-T6T |
| Series | PanelView Component C600 |
| Display Size | 6 inch |
| Display Type | Color TFT LCD |
| Resolution | 320 × 240 pixels |
| Input Type | Touchscreen |
| Communication Interface | RS-232 (DH-485/DF1), RS-422/485, RJ-45 Ethernet |
| Programming Port | USB Device Port |
| Input Voltage | 24 VDC |
| Mounting Type | Panel Mount |
| Protection Level | Industrial-grade front panel |
| Dimensions | 209 × 57 × 154 mm |
| Weight | 0.68 kg |
Applications
● Suitable for mid-level automation systems, providing advanced visualization and control capabilities
● Applied in industrial process monitoring, including packaging, assembly, and material handling systems
● Ideal for Ethernet-based industrial networks, supporting both legacy and modern PLC communication
● Used in OEM equipment, providing flexible operator interface options in compact spaces
● Effective for retrofit projects, bridging older serial networks with modern Ethernet control systems
● Suitable for distributed control systems, offering clear visualization and real-time parameter adjustment
Advantages
● Large 6-inch color TFT touchscreen provides high-resolution visuals for process monitoring
● Supports multiple communication protocols, including RS-232, RS-422/485, and Ethernet, ensuring flexible system integration
● USB device port allows fast application download and simplified configuration
● Compact and lightweight design supports installation in space-constrained control panels
● 24 VDC power input is compatible with modern industrial control standards
● PanelView Component platform offers cost-effective and reliable operation for mid-range applications
● Touchscreen interface enhances operator efficiency and reduces errors in real-time control
