Product Introduction

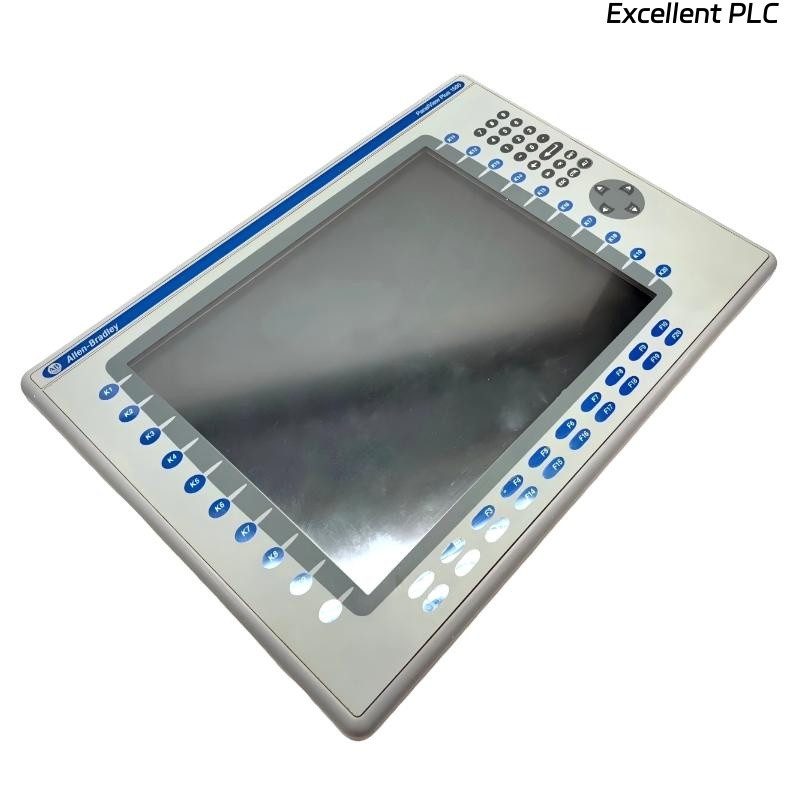

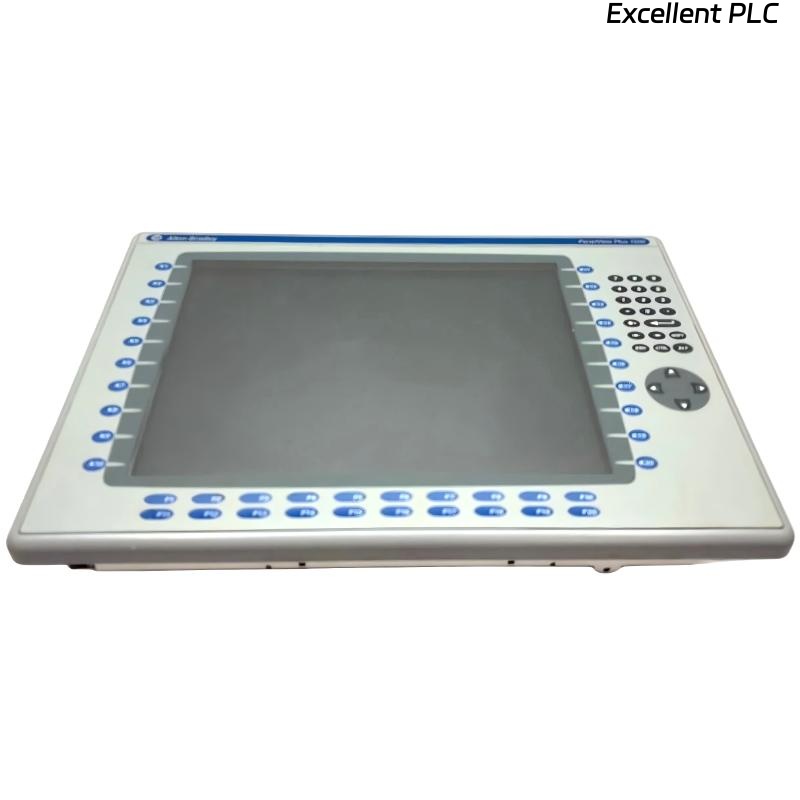

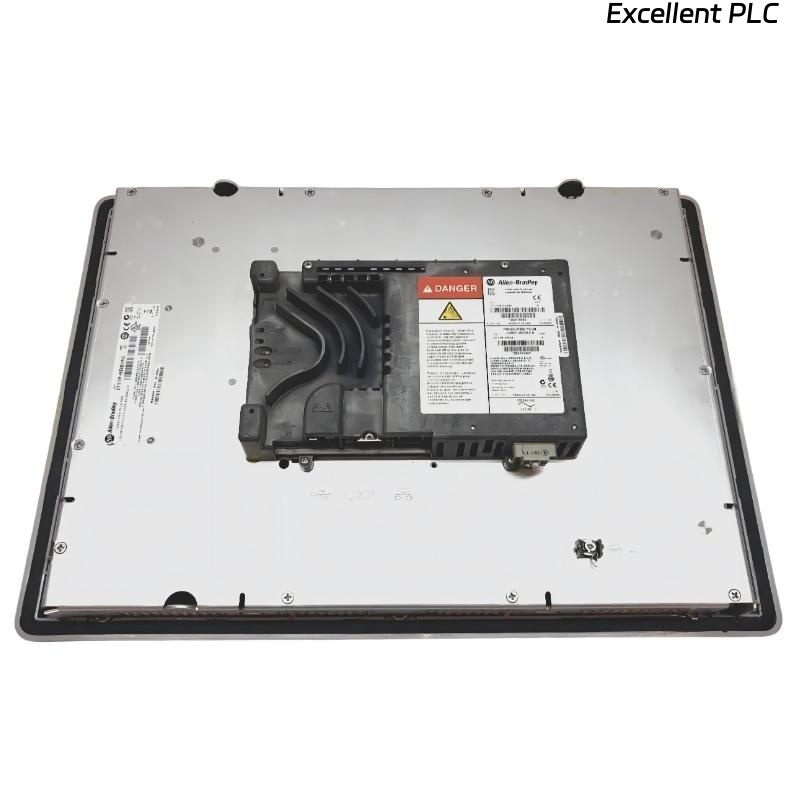

The Allen-Bradley 2711P-B15C4A9 PanelView Plus 1500 Operator Interface is a high-performance HMI designed for advanced industrial automation applications. Featuring a 15-inch color display with 1024 × 768 pixel resolution, it provides crisp visualization of process data, alarms, trends, and operator commands, making it ideal for complex control systems.
This unit combines keypad and touch input, offering versatile operator interaction and precise control. It runs on Windows CE 6.0 Extended, enabling advanced functionality such as file viewing, custom applications, and extended system features. Standard communication options include Ethernet, RS-232, and USB ports, with modular communication interface support for additional protocols. The PanelView Plus 6 1500 is designed for industrial environments and can operate reliably on 100–240 VAC, 50/60 Hz power supplies, making it suitable for global deployment.
With 512 MB of Flash memory and 512 MB of RAM, this interface can store and run complex HMI applications while maintaining fast response times. Its rugged construction and intuitive interface ensure efficient operation, enhanced safety, and streamlined process monitoring.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711P-B15C4A9 |
| Series | PanelView Plus 1500 |
| Display Size | 15 inch |
| Display Type | Color LCD |
| Resolution | 1024 × 768 pixels |
| Input Type | Keypad & Touch |
| Standard Communication | Ethernet, RS-232, USB |
| Optional Communication | Modular Communication Interface |
| Operating System | Windows CE 6.0 Extended |
| Flash Memory | 512 MB |
| RAM | 512 MB |
| Input Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Mounting Type | Panel Mount |
| Protection Level | Industrial-grade front panel |
| Dimensions | 469 × 65 × 330 mm |
| Weight | 4.5 kg |
Applications
● Used for advanced process visualization and control in manufacturing and process plants
● Ideal for monitoring alarms, trends, and real-time data
● Suitable for complex machinery and OEM applications requiring large displays
● Employed in factory automation, material handling, and batch control systems
● Supports data logging, file viewing, and operator guidance
● Can be integrated into networked control systems using Ethernet, RS-232, and USB
Advantages
● Large 15-inch high-resolution display provides clear and detailed visualization
● Keypad & touch input combination allows flexible and precise operator control
● Runs Windows CE 6.0 Extended for enhanced functionality and file management
● Multiple communication options (Ethernet, RS-232, USB) enable easy integration with PLCs and industrial networks
● Modular communication interface allows expansion for custom protocols
● Rugged design ensures reliable operation in demanding industrial environments
● Large memory capacity supports complex applications and fast response times
● Compatible with global power standards (100–240 VAC, 50/60 Hz) for versatile deployment
