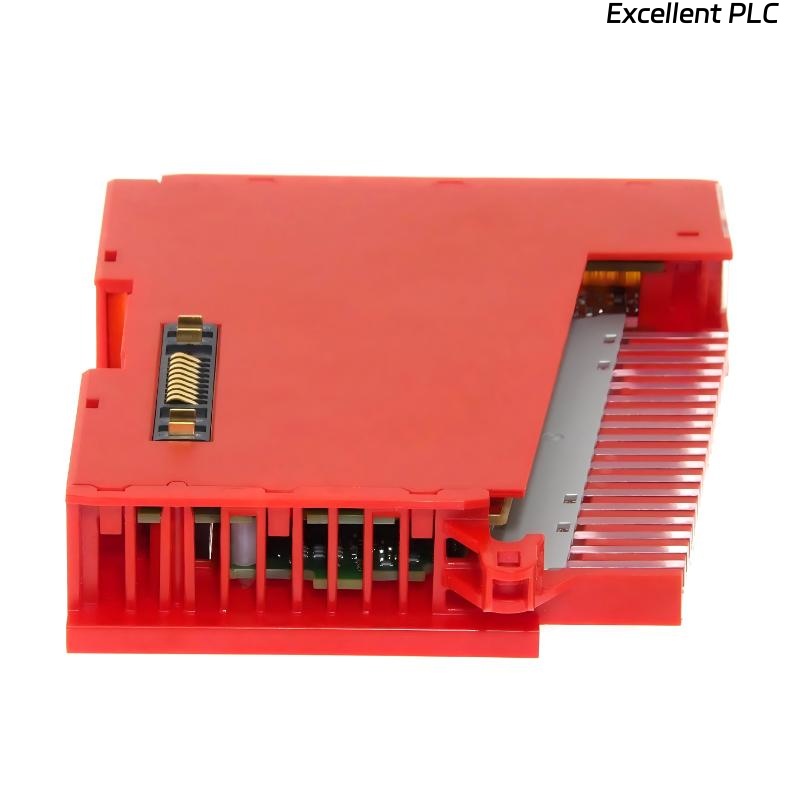

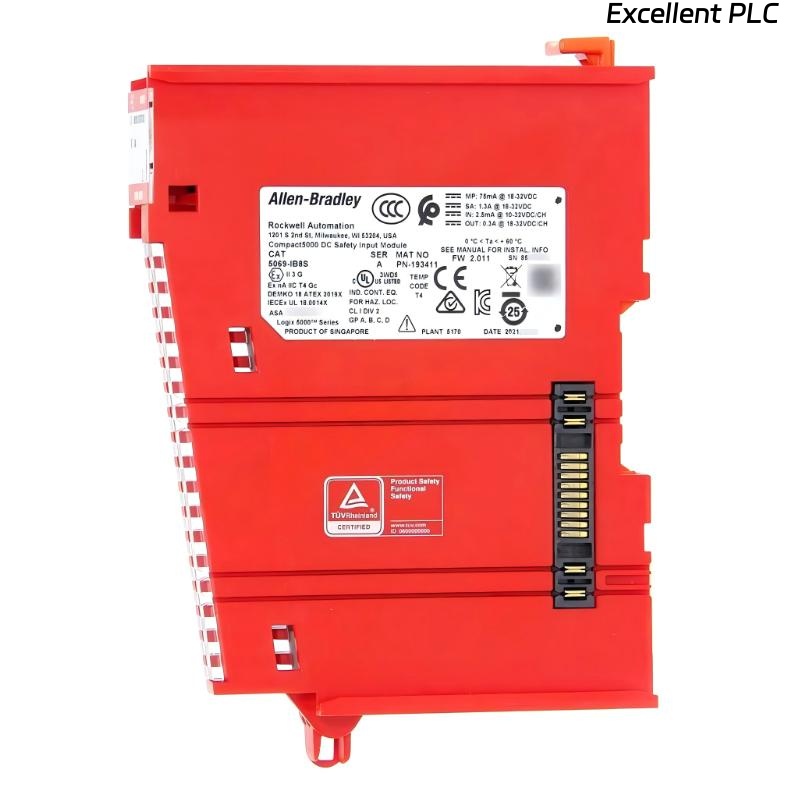

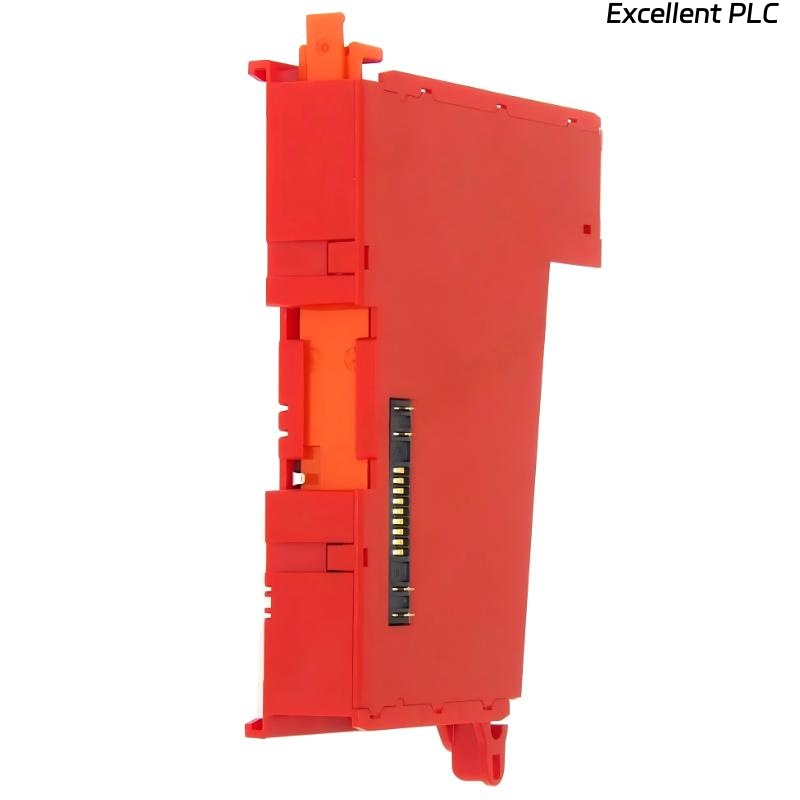

Allen Bradley 5069-IB8S Compact 5000 DC Digital Safety Input Module

Product Introduction

The Allen-Bradley 5069-IB8S Compact 5000 DC Digital Safety Input Module is a safety-rated input module designed for use in CompactLogix™ 5000 control systems. It provides 8 digital safety input channels, enabling reliable monitoring of safety devices such as emergency stops, safety switches, light curtains, and interlock systems.

This module operates with 24 VDC sinking inputs, making it suitable for a wide range of industrial safety applications. Built to meet stringent safety requirements, it helps ensure compliance with functional safety standards while improving machine and operator protection.

With its compact design and DIN rail mounting, the 5069-IB8S integrates seamlessly into modern control panels, offering both space efficiency and high-performance safety monitoring.

---

Product Specifications

---

Applications

• Used in machine safety systems to monitor emergency stop buttons and safety circuits

• Ideal for industrial automation environments requiring certified safety inputs

• Applied in robotics and assembly lines, ensuring safe interaction between operators and machines

• Suitable for packaging and material handling systems, enhancing operational safety

• Used in process industries to monitor critical safety conditions

• Integrated into safety PLC systems, supporting compliance with safety standards

---

Advantages

• 8-channel safety inputs for monitoring multiple safety devices

• Sinking input design (24 VDC) compatible with standard industrial safety sensors

• Designed for functional safety applications, improving system protection

• Compact size saves valuable panel space

• DIN rail mounting enables easy installation

• High reliability and diagnostic capability for safety-critical operations

• Supports integration with CompactLogix safety controllers

FAQ

1. What is the main function of the 5069-IB8S module?
   It monitors digital safety input signals from safety devices such as emergency stops and safety switches.
2. How many safety inputs does it provide?
   It provides eight independent safety input channels.
3. What does “sinking input” mean?
   It means the module receives current from field devices, typically used with sourcing sensors.
4. What voltage does it operate on?
   It operates on 24 VDC.
5. Is it suitable for safety-critical applications?
   Yes, it is specifically designed for functional safety systems.
6. Can it be used with standard PLC systems?
   It is intended for use with CompactLogix safety controllers within the Compact 5000 platform.
7. What types of devices can be connected?
   Emergency stop buttons, safety relays, light curtains, and interlock switches.
8. How is it installed?
   It is mounted on a DIN rail inside a control cabinet.
9. Does it provide diagnostics?
   Yes, it supports diagnostics for improved fault detection and troubleshooting.
10. How does it improve workplace safety?
    By reliably monitoring safety inputs and enabling quick response to hazardous conditions.
