Product Introduction:

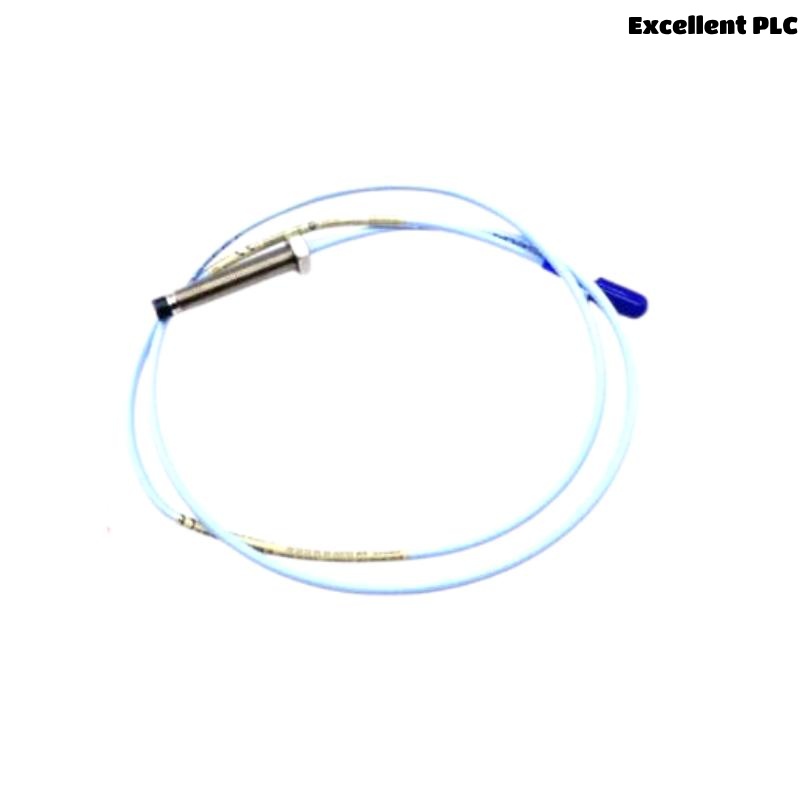

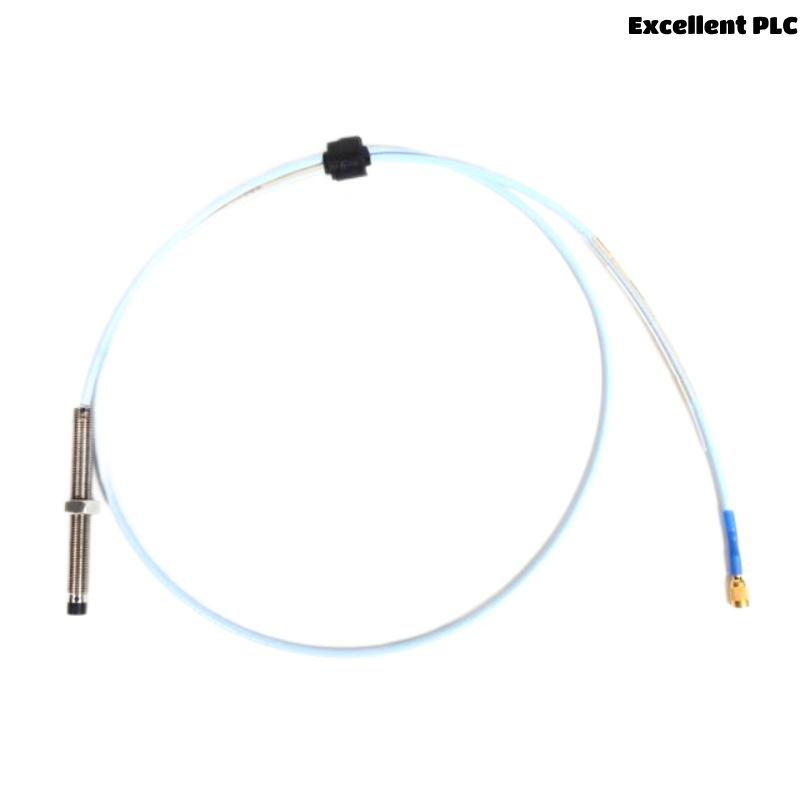

The Bentley Nevada 330104-10-19-10-02-00 is a highly reliable proximity probe, designed specifically for industrial applications where precise vibration and position monitoring is essential. Part of the renowned 3300 XL series, this 8mm metric probe offers advanced sensing capabilities for machinery protection and condition monitoring. Its robust construction ensures high durability and consistent performance in demanding environments, including power plants, oil & gas facilities, and manufacturing plants.
The 3300 XL probe is engineered to deliver accurate measurements for shaft displacement, radial vibration, and axial displacement. It operates seamlessly with Bently Nevada’s machinery protection systems, contributing to increased equipment reliability and reduced downtime.
Product Specifications:
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8 mm |
| Probe Material | Stainless Steel |
| Thread Type | Metric (M18x1.5) |
| Sensitivity | 0.010 V/µm |
| Mounting Type | Direct Mount |
| Operating Temperature Range | -40°C to 120°C |
| Electrical Output | Differential |
| Cable Length | Customizable |
| Protection Class | IP67 |
| Measurement Range | ±2.54 mm |
| Max Vibration Speed | 1.27 m/s |
| Operating Voltage | 20-30 VDC |
Applications:
The Bentley Nevada 330104-10-19-10-02-00 proximity probe is widely used for monitoring a range of machinery in industries requiring precise and continuous vibration measurement. Its primary applications include:
-
Turbines: Monitoring turbine shaft displacement and radial vibration for early fault detection and to ensure optimal performance.
-
Compressors: Used for monitoring the axial displacement and radial vibration of compressor shafts to prevent mechanical failures.
-
Motors & Pumps: For detecting shaft misalignment and monitoring vibrations to minimize the risk of failure and improve operational efficiency.
-
Generators: Ensures that the shaft alignment is maintained and detects any irregular vibration patterns that could signal potential issues.
-
Fans and Blowers: Provides early detection of imbalances or misalignments in rotating machinery to avoid costly downtime.
The Bentley Nevada 330104-10-19-10-02-00 probe is ideal for use in a wide variety of industries, including power generation, oil & gas, petrochemical, and manufacturing plants, where machinery reliability is critical.
Advantages:
-
High Precision: The probe delivers extremely accurate readings with a sensitivity of 0.010 V/µm, making it ideal for critical vibration monitoring in sensitive equipment.
-
Durable Construction: Built with stainless steel, it is designed to withstand harsh environments and continues to perform in high-temperature and high-vibration conditions.
-
Ease of Integration: Compatible with Bentley Nevada’s machinery protection systems, facilitating quick installation and seamless integration.
-
Robust Protection Class: With an IP67 rating, the probe is resistant to dust, moisture, and harsh weather conditions, ensuring reliable performance in outdoor or challenging environments.
-
Wide Temperature Range: The operating temperature range from -40°C to 120°C provides versatility for use in diverse environmental conditions.
-
Long Operational Life: Due to its high-quality materials and construction, the 3300 XL series probes offer long-lasting performance, reducing the need for frequent replacements.
FAQs (Frequently Asked Questions):
-
What is the primary function of the Bentley Nevada 330104-10-19-10-02-00 proximity probe?
-
The primary function is to measure shaft displacement and vibration in rotating machinery, providing real-time data for predictive maintenance and fault detection.
-
-
What industries benefit from using this proximity probe?
-
Industries such as power generation, oil & gas, petrochemical, and manufacturing are the primary users, where machinery uptime is critical.
-
-
What is the sensitivity of the Bentley Nevada 330104-10-19-10-02-00 probe?
-
The sensitivity is 0.010 V/µm, which allows for highly accurate vibration and displacement measurements.
-
-
Can the probe be used for both radial and axial vibration measurements?
-
Yes, the probe is designed to measure both radial and axial vibration, making it versatile for various applications.
-
-
What type of mounting is used for this probe?
-
The probe uses a direct mount, which allows it to be securely fixed to the machinery for precise measurements.
-
-
What is the operating temperature range of the Bentley Nevada 330104-10-19-10-02-00 proximity probe?
-
The operating temperature range is from -40°C to 120°C, allowing it to perform in both extreme hot and cold environments.
-
-
Is the probe resistant to environmental factors like dust and moisture?
-
Yes, the probe is rated IP67, meaning it is fully protected from dust and can withstand immersion in water up to a certain depth.
-
-
What type of electrical output does the probe generate?
-
The probe generates a differential electrical output, which is commonly used for vibration and displacement monitoring.
-
-
Can the probe be customized for different cable lengths?
-
Yes, the cable length is customizable based on the user’s specific requirements, providing flexibility for installation.
-
-
What is the weight of the Bentley Nevada 330104-10-19-10-02-00 proximity probe?
-
The probe weighs 0.323 kg, which makes it lightweight and easy to handle during installation.
-
Related Models:
| Model Number | Description |
|---|---|
| 330104-10-19-10-02-01 | 3300 XL 8mm Proximity Probe, 1.0 meter, Standard |
| 330104-10-19-10-02-02 | 3300 XL 8mm Proximity Probe, 2.0 meter, Standard |
| 330104-10-19-10-02-03 | 3300 XL 8mm Proximity Probe, 3.0 meter, Extended |
| 330104-10-19-10-02-04 | 3300 XL 8mm Proximity Probe, with high-temperature rating |
| 330104-10-19-10-02-05 | 3300 XL 8mm Proximity Probe with extended cable length |
| 330104-10-19-10-02-06 | 3300 XL 8mm Proximity Probe, for heavy-duty applications |
