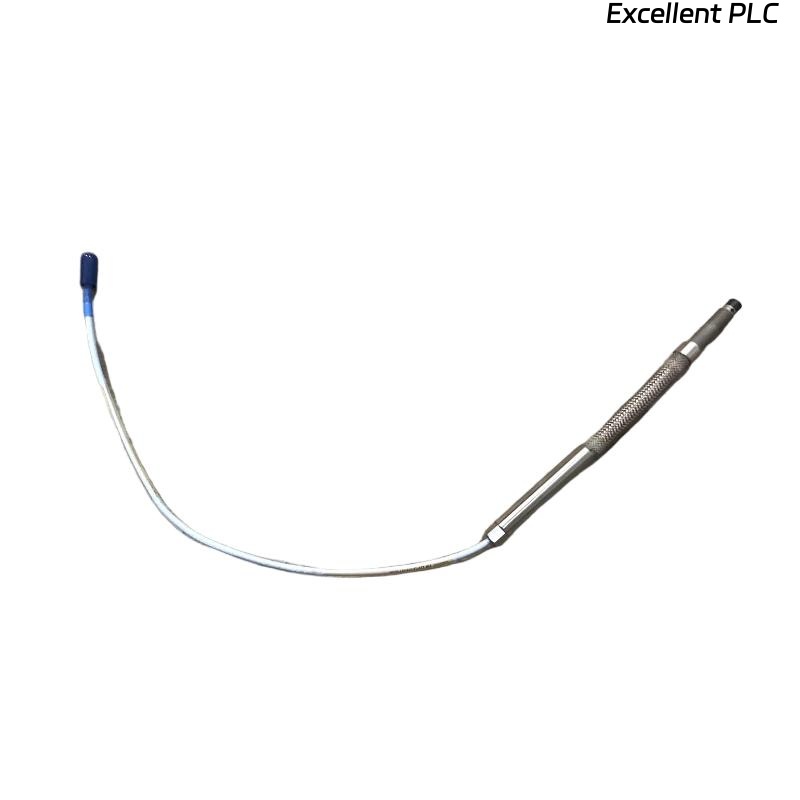

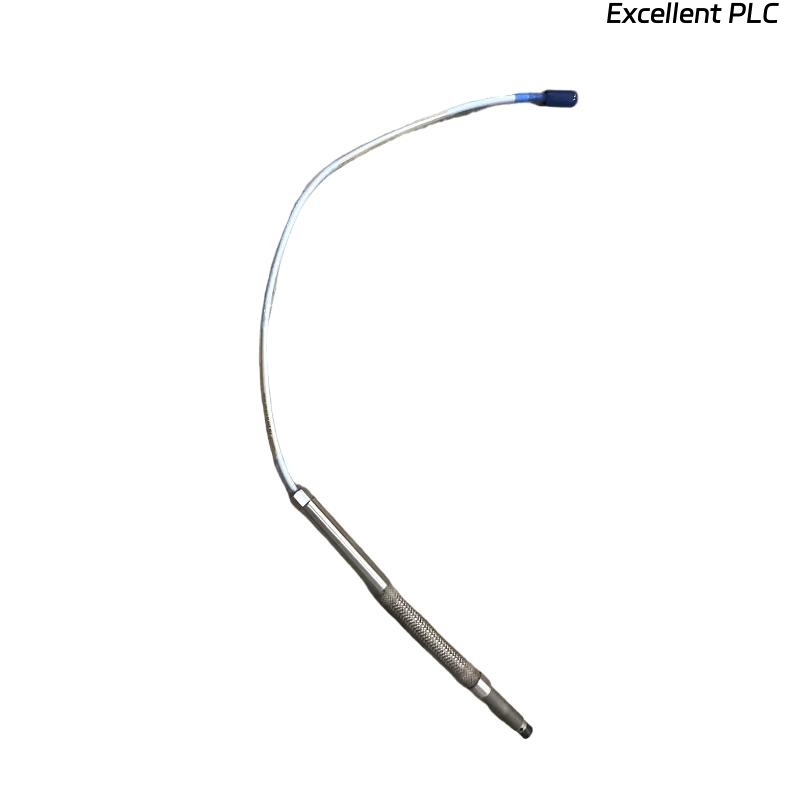

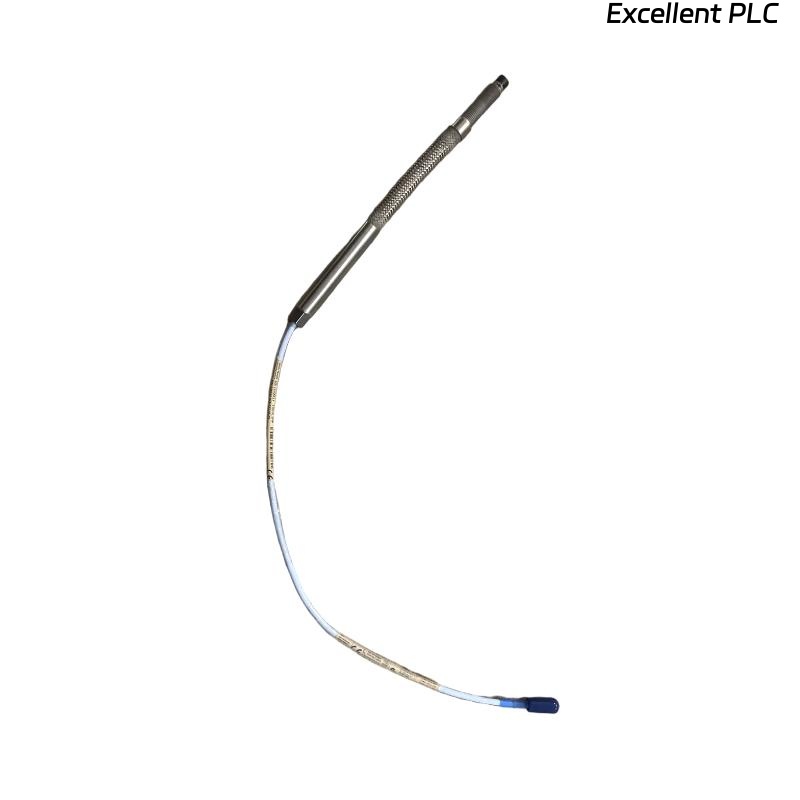

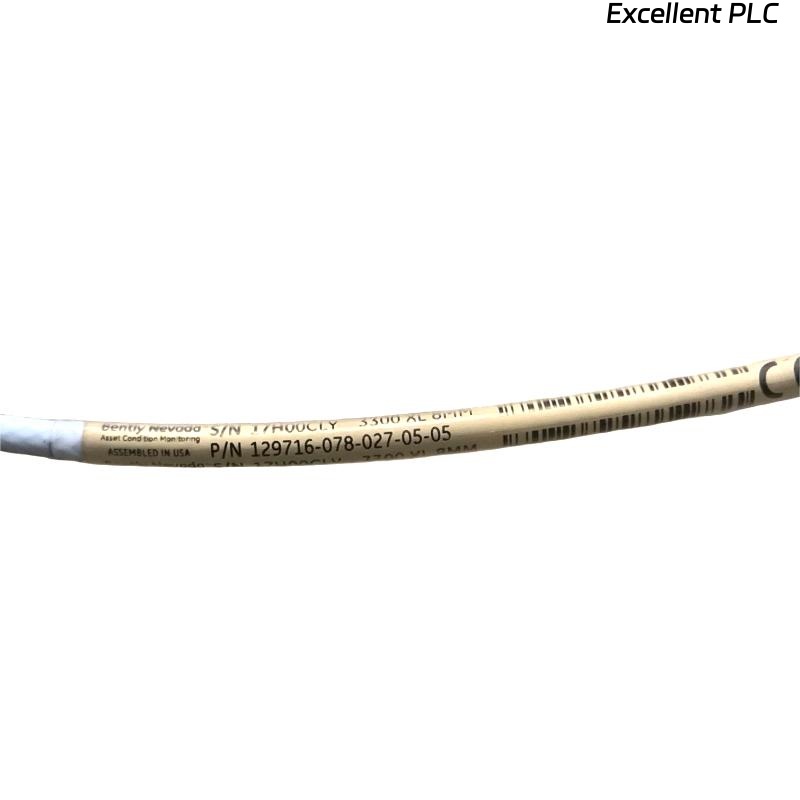

Bently Nevada 129716-078-027-05-05 3300 XL Proximity Sensor

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 129716-078-027-05-05 3300 XL Proximity Sensor is part of the highly reliable 3300 XL series, designed for precision measurement of shaft vibration and position in critical rotating machinery. This sensor provides accurate, stable, and reliable proximity measurements by using eddy-current technology to detect the distance between the probe tip and the conductive surface of the rotating shaft.

The 3300 XL family is globally recognized for its robust design, superior signal stability, and ability to withstand harsh industrial environments. The model 129716-078-027-05-05 represents a specific configuration within the 3300 XL product line, optimized for long-term reliability in applications such as turbines, compressors, pumps, and electric motors.

By pairing with a Proximitor sensor and extension cable, it forms a complete proximity measurement system, delivering industry-standard output signals that interface directly with Bently Nevada monitoring systems such as the 3500 series.

---

Product Specifications

---

Product Applications

The 129716-078-027-05-05 3300 XL Proximity Sensor is used across industries to protect and monitor the most critical machinery assets:

• Turbomachinery Monitoring: Measures shaft vibration and axial position in gas and steam turbines.

• Compressors: Detects shaft instability, imbalance, and misalignment for early fault detection.

• Pumps: Ensures operational reliability by tracking shaft movement and dynamic behavior.

• Electric Motors and Generators: Monitors shaft position to prevent mechanical and electrical failures.

• Petrochemical and Refinery Equipment: Ensures safe and continuous operations in hazardous zones.

• Condition Monitoring Systems: Works with Bently Nevada 3500 series for predictive maintenance and advanced diagnostics.

---

Product Advantages

The 3300 XL proximity sensor series delivers industry-leading benefits, and the 129716-078-027-05-05 model exemplifies these strengths:

• High Accuracy: Provides reliable shaft vibration and position data for precision diagnostics.

• Extended Temperature Range: Designed to withstand extreme industrial conditions.

• System Compatibility: Fully compatible with Bently Nevada 3500 and earlier monitoring systems.

• Long-Term Stability: Ensures consistent performance with minimal drift, even in harsh environments.

• Non-Contact Measurement: Reduces wear and ensures accurate data without physical contact.

• Flexible Installation: Multiple thread types and cable configurations available.

• Hazardous Area Certification: Suitable for use in ATEX and IECEx classified zones.

• Industry Standard Output: Simplifies integration with existing monitoring and control systems.

---

FAQ

1. What measurement principle does the 3300 XL proximity sensor use?
   It uses eddy-current non-contact measurement to detect the distance between the probe and the shaft surface.

2. What is the standard sensitivity of the 3300 XL probe?
   The standard sensitivity is 200 mV/mil (7.87 mV/µm).

3. What Proximitor sensors are compatible with this probe?
   It is compatible with the 3300 XL Proximitor series, typically 5 mm, 8 mm, and 11 mm versions.

4. What extension cables can be used with this model?
   It can be paired with 330130, 330171, or 330180 extension cables, depending on installation requirements.

5. What is the maximum linear measurement range?
   The probe supports a linear range of approximately 2 mm (80 mils).

6. How does the probe output vibration and position data?
   The probe, extension cable, and Proximitor sensor form a system that outputs a proportional voltage signal for monitoring systems.

7. What is the frequency response of this proximity sensor?
   The probe supports a frequency response from DC up to 10 kHz (±3 dB).

8. Can the sensor operate in high-temperature conditions?
   Yes, it can operate from -35 °C to +177 °C at the probe body.

9. What diagnostic features ensure reliability of measurements?
   The system includes built-in calibration, standard sensitivity validation, and stable long-term performance.

10. Is this probe certified for hazardous industrial environments?
    Yes, it complies with ATEX and IECEx standards for hazardous area deployment.

---

Recommended Related Models (Same Series/Category)

---

Popular Models from Bently Nevada (Same Brand)
