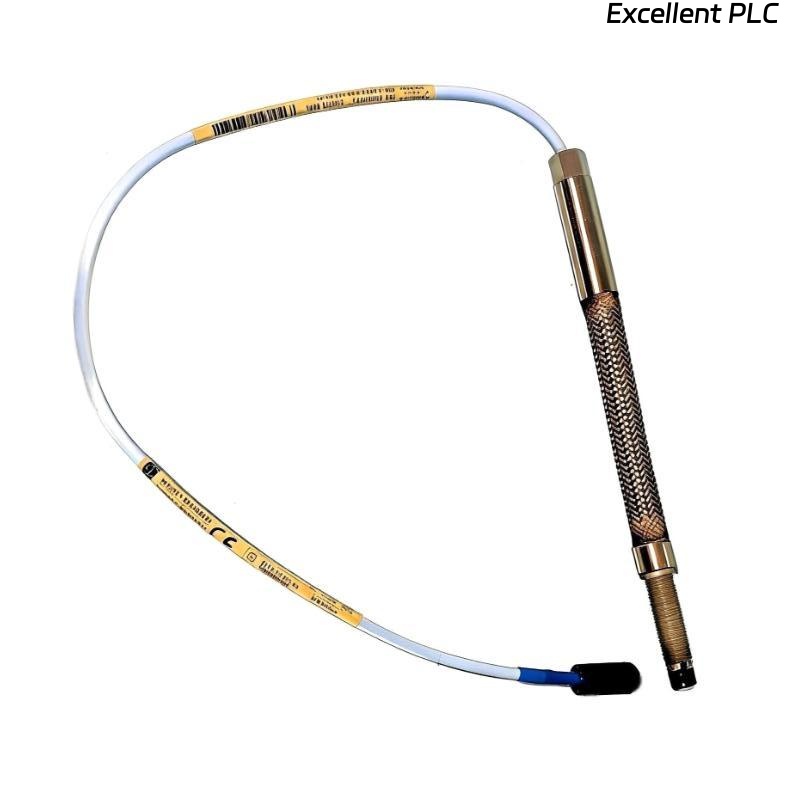

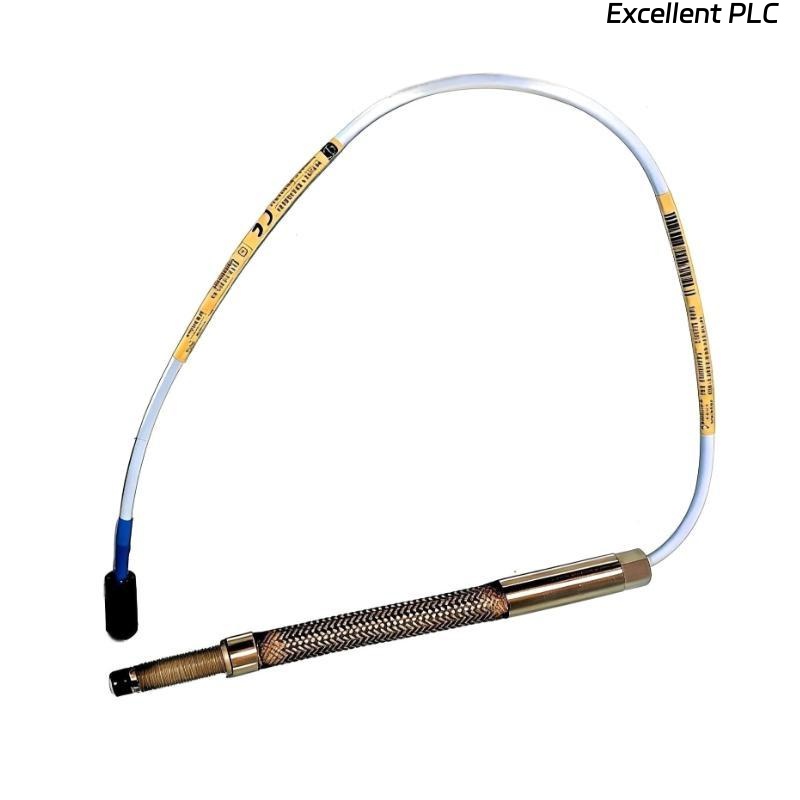

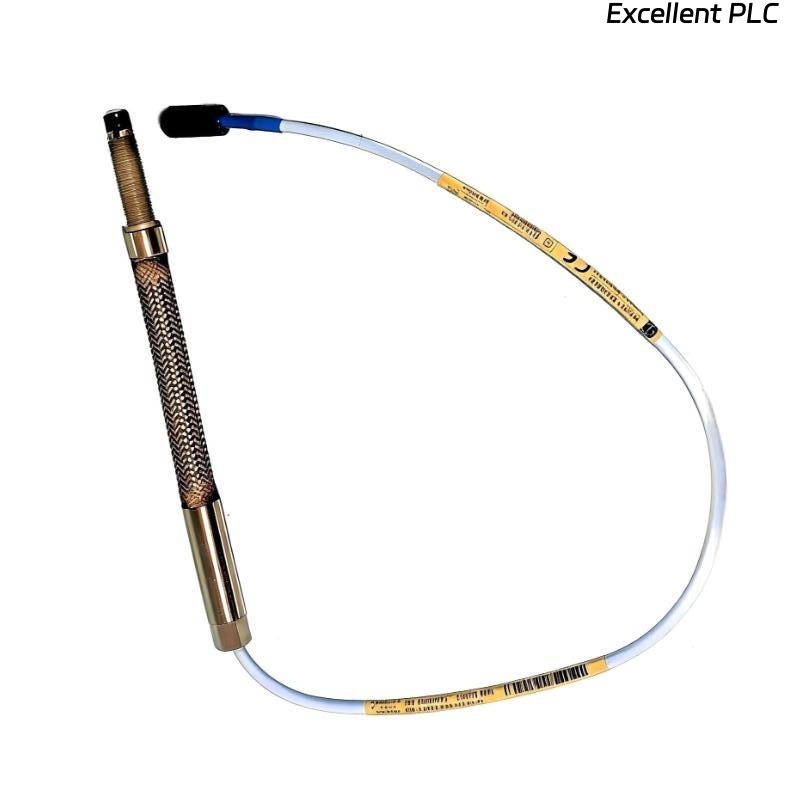

Bently Nevada 129716-XXX-037-15-05 166797-0173 3300 XL Proximity Sensor

Product Introduction

The Bently Nevada 129716-XXX-037-15-05 166797-0173 3300 XL Proximity Sensor is a high-performance eddy current sensor designed for non-contact vibration and displacement measurement in rotating machinery. As part of the widely used 3300 XL series, this sensor is engineered to deliver precise and stable monitoring of shaft position, vibration, and mechanical condition.

This proximity sensor utilizes eddy current measurement principles to detect changes in distance between the probe tip and a conductive target. It is typically used in conjunction with extension cables and proximitor systems to form a complete measurement chain. The 8 mm sensor head diameter provides a balance between sensitivity and mechanical robustness, making it suitable for a wide range of industrial applications.

Designed for continuous operation in harsh environments, the sensor offers excellent resistance to temperature variation, oil contamination, and electromagnetic interference. It is a key component in predictive maintenance systems, helping to prevent equipment failure and optimize machinery performance.

---

Product Specifications

---

Applications

● Rotating Machinery Monitoring

Used for continuous monitoring of shaft vibration, displacement, and position in turbines, compressors, and motors.

● Predictive Maintenance Systems

Provides critical data for condition monitoring systems, enabling early fault detection and maintenance planning.

● Power Generation Equipment

Widely applied in steam and gas turbines to ensure stable and safe operation under high-speed conditions.

● Oil and Gas Industry

Supports monitoring of compressors and pumps in harsh environments, ensuring reliable operation and reduced downtime.

● Industrial Process Machinery

Used in various industrial systems where non-contact measurement is required for precision monitoring.

---

Advantages

● High Measurement Accuracy

Delivers precise and repeatable readings, ensuring reliable monitoring of machine conditions.

● Non-Contact Measurement

Eliminates mechanical wear, improving durability and reducing maintenance requirements.

● Strong Environmental Adaptability

Operates reliably in harsh conditions, including oil contamination, vibration, and temperature fluctuations.

● Wide Compatibility with 3300 XL Systems

Fully compatible with Bently Nevada monitoring systems, simplifying integration and configuration.

● Robust Mechanical Design

The 8 mm probe offers a balance of sensitivity and durability for various industrial applications.

● Proven Industry Performance

Widely used across industries, providing trusted performance in critical machinery monitoring systems.

FAQ

1. What is the working principle of the 3300 XL proximity sensor?
   It operates based on eddy current technology, where an electromagnetic field is generated at the probe tip and changes in this field are used to measure the distance to a conductive target.
2. What types of measurements can this sensor provide?
   It is primarily used for vibration, displacement, and shaft position measurements in rotating equipment.
3. Is the sensor suitable for continuous monitoring applications?
   Yes, it is designed for continuous operation and is commonly used in critical machinery where real-time monitoring is essential.
4. What is the significance of the 8 mm probe diameter?
   The 8 mm size provides a good balance between measurement sensitivity and mechanical strength, making it versatile for many applications.
5. Can the sensor operate in high-temperature environments?
   It is designed to tolerate industrial temperature ranges, but exact limits depend on the complete system configuration including cables and proximitor.
6. Does the sensor require additional components to function?
   Yes, it typically works with extension cables and a proximitor (signal conditioner) to produce usable output signals.
7. How is the sensor installed on machinery?
   It is usually mounted using threaded fittings, allowing precise positioning relative to the target surface.
8. What kind of output signal does the system provide?
   The sensor itself generates a raw signal that is processed by the proximitor into a standard analog output for monitoring systems.
9. How does this sensor improve equipment reliability?
   By providing accurate real-time data, it enables early detection of faults such as imbalance or misalignment, reducing the risk of unexpected failures.
10. What are common issues that may affect sensor performance?
    Improper installation, incorrect gap settings, cable damage, or excessive environmental interference can impact measurement accuracy.
