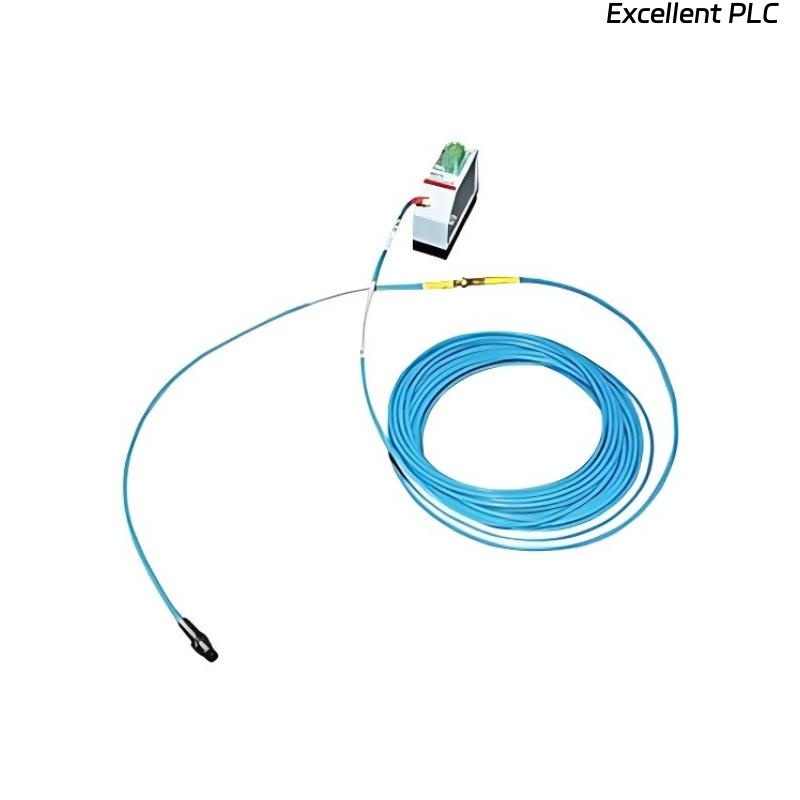

The Bently Nevada 1442-PR-0812E0210N is a multi-channel vibration and position monitoring module engineered for industrial environments that demand high accuracy and dependability. This module is part of the Bently Nevada 1442 Series, well-known for its robustness and seamless integration into predictive maintenance systems.
From an engineer’s perspective, the 1442-PR-0812E0210N delivers a solid balance between real-time data acquisition and diagnostic intelligence, designed to protect high-value rotating assets such as compressors, pumps, turbines, and fans. It supports advanced vibration analysis, shaft position tracking, and Keyphasor® speed measurements, forming a core component of modern condition-based monitoring architectures.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes Company) |
| Series | 1442 Smart Vibration Series |
| Model Number | 1442-PR-0812E0210N |
| Module Type | Vibration and Position Monitoring Module |
| Input Channels | 8 vibration, 12 position |
| Measurement Range | ±50 g (vibration), ±10 mm (position) |
| Input Signal Type | Accelerometer, proximity probe, Keyphasor® |
| Sampling Frequency | Up to 25 kHz per channel |
| Resolution | 16-bit digital conversion |
| Output Interface | Ethernet/IP, Modbus TCP |
| Power Supply Voltage | 24 V DC nominal (18–30 V range) |
| Current Consumption | 400 mA typical |
| Built-in Functions | FFT analysis, phase reference, auto calibration |
| Temperature Range | -20°C to +65°C (-4°F to +149°F) |
| Humidity Tolerance | 5–95% non-condensing |
| Enclosure Protection | IP20 |
| Mounting Type | DIN rail mount |
| Diagnostics | Sensor integrity, overrange, cable fault detection |
| Dimensions (H × W × D) | 132 mm × 45 mm × 106 mm (5.20 in × 1.77 in × 4.17 in) |
| Weight | 0.65 kg (1.43 lb) |
| Certifications | CE, UL, ATEX Zone 2, RoHS compliant |
Real-World Application Use Cases
The 1442-PR-0812E0210N finds its strongest applications in plants where machinery uptime directly impacts productivity and safety.
Common implementations include:
-
Compressor and Turbine Health Monitoring: Continuous vibration and position measurement for predictive diagnostics.
-
High-Speed Rotating Equipment: Ensures shaft alignment and speed tracking using Keyphasor® inputs.
-
Power Generation and Oil & Gas Plants: Integrated into control systems for condition-based maintenance.
-
Industrial Automation Lines: Enables real-time diagnostics within PLC/DCS architectures.
-
Aerospace and Automotive Testing: Ideal for high-resolution dynamic motion analysis.
Distinct Advantages from an Engineering Viewpoint
-
Comprehensive Sensing Capabilities: Supports vibration, position, and phase measurements simultaneously.
-
Enhanced Data Integrity: Channel isolation ensures noise-free measurements in electrically noisy environments.
-
Modular Integration: Seamlessly fits into Bently Nevada and third-party monitoring frameworks.
-
High-Speed Digital Processing: Allows FFT-based vibration spectrum analysis directly within the module.
-
Field-Calibratable: Supports plug-and-play sensor calibration without removing equipment from operation.
-
Predictive Maintenance Ready: Works in tandem with Bently’s System 1 and other asset management platforms.
-
Robust Design: Built for continuous operation in industrial conditions.
