Bently Nevada 146055-05-02-05 3300 XL Ceramic Capped ReverseMount Probes

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

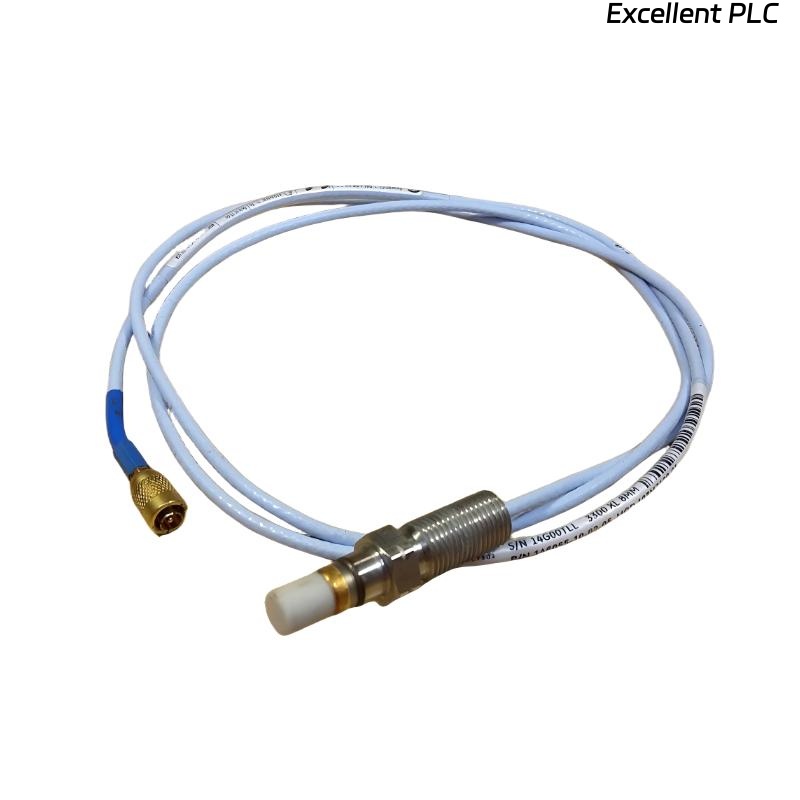

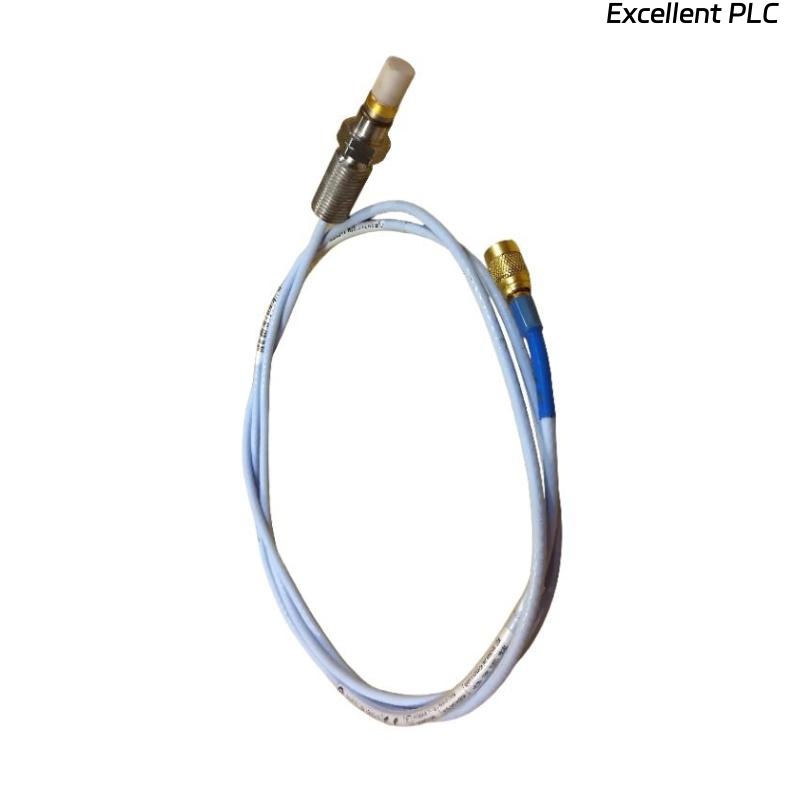

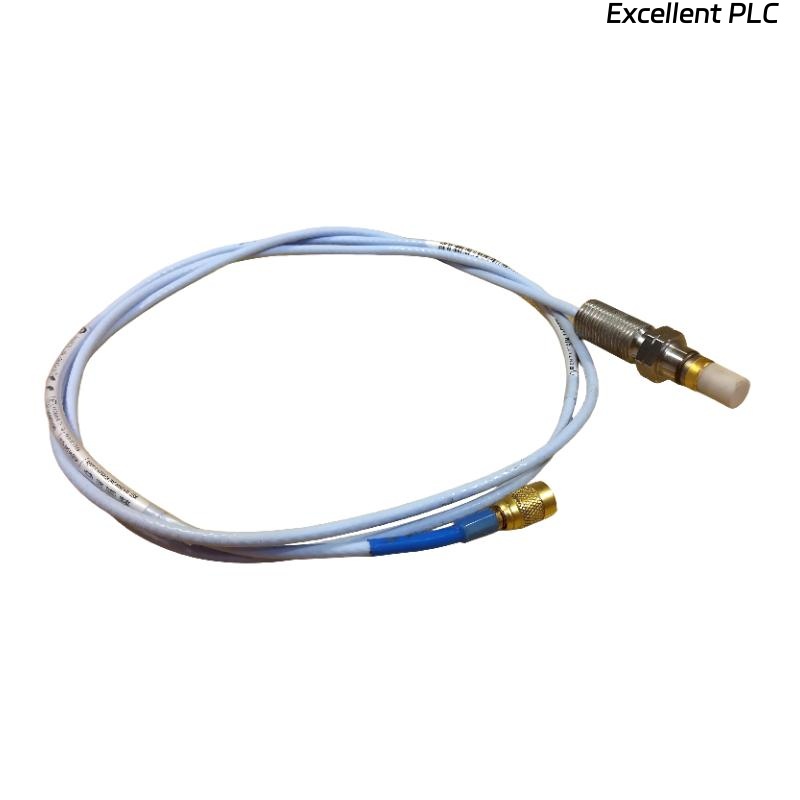

The Bently Nevada 146055-05-02-05 3300 XL Ceramic Capped Reverse-Mount Probe is a high-precision displacement and vibration sensor specifically designed for monitoring critical rotating machinery. Part of the 3300 XL Proximity Transducer System, this probe provides reliable measurement of shaft position, vibration, and phase signals in industrial applications.

This model features a reverse-mount design with a ceramic-capped tip, providing superior durability, thermal stability, and wear resistance. The ceramic tip ensures long-term performance even in environments with high-speed shaft rotation, debris, or occasional contact. With a 0.5-meter total length, it allows installation in constrained or hard-to-reach locations while maintaining signal integrity.

The probe operates on the eddy current principle, generating a voltage proportional to the distance between the probe tip and the conductive target. This signal is used by 3300 XL monitoring modules to track vibration amplitudes, shaft displacement, and phase angle, enabling accurate predictive maintenance and machinery protection.

---

Product Parameters

---

Product Applications

The 146055-05-02-05 Reverse-Mount Probe is used for precise machinery monitoring in industrial environments where accuracy and durability are critical. Typical applications include:

• Steam and Gas Turbines: Measures radial vibration, shaft displacement, and phase signals for predictive maintenance.

• Centrifugal and Axial Compressors: Monitors shaft motion to detect imbalance, misalignment, and mechanical faults.

• Generators: Tracks shaft displacement and vibration to prevent bearing wear and ensure smooth operation.

• Gearboxes: Provides dynamic measurement of gear shafts to identify early signs of wear or misalignment.

• Pumps and Fans: Detects abnormal vibration and shaft movement to prevent operational issues.

• High-Temperature and Debris-Prone Environments: Ceramic tip ensures reliable measurements even under harsh conditions.

---

Product Advantages

The Bently Nevada 146055-05-02-05 3300 XL Reverse-Mount Probe provides a combination of durability, high accuracy, and system integration benefits:

• High Precision: Offers linear and repeatable output for both radial and axial shaft movement.

• Ceramic Tip Durability: Resistant to wear, debris, and high temperatures for long-term stable operation.

• Flexible Installation: Reverse-mount design enables placement in confined or difficult-to-access areas.

• Robust Construction: Stainless steel housing and sealed cable resist oil, moisture, and industrial contaminants.

• Signal Integrity: Double-shielded coaxial cable reduces electromagnetic and radio-frequency interference.

• System Compatibility: Fully compatible with Bently Nevada 3300 XL monitoring modules.

• Maintenance-Free: Long-term operation without recalibration or frequent maintenance.

• Operational Reliability: Performs under high vibration and temperature extremes.

• Ease of Integration: Standard threaded reverse-mount design simplifies installation and replacement.

• Supports Predictive Maintenance: Provides accurate vibration and shaft position data for effective condition monitoring.

---

FAQ

1. Which monitoring systems are compatible with this probe?
   It is fully compatible with Bently Nevada 3300 XL Proximity Transducer Modules.

2. What is the linear measurement range of this probe?
   The probe has a nominal linear range of 2.0 mm (80 mils).

3. How does the ceramic tip improve performance?
   The ceramic tip provides wear resistance, thermal stability, and durability in harsh environments.

4. What is the nominal sensitivity of the probe?
   Approximately 7.87 V/mm (200 mV/mil).

5. Can this probe measure axial motion as well as radial vibration?
   Yes, it is designed to measure both radial and axial shaft movements.

6. Is the probe suitable for high-vibration machinery?
   Yes, it is rated for vibration up to 20 g (196 m/s²) peak.

7. Does the reverse-mount design affect installation?
   Yes, it allows installation in confined or hard-to-reach areas where standard probes may not fit.

8. Is the probe resistant to electromagnetic interference?
   Yes, the double-shielded coaxial cable ensures strong EMI/RFI protection.

9. Can the probe operate in oil or moisture-prone environments?
   Absolutely, the probe is sealed against oil, moisture, and industrial contaminants.

10. What calibration target is used for this probe?
    Factory calibration is based on 4140 steel, which is the standard Bently Nevada calibration target.

---
