Product Introduction

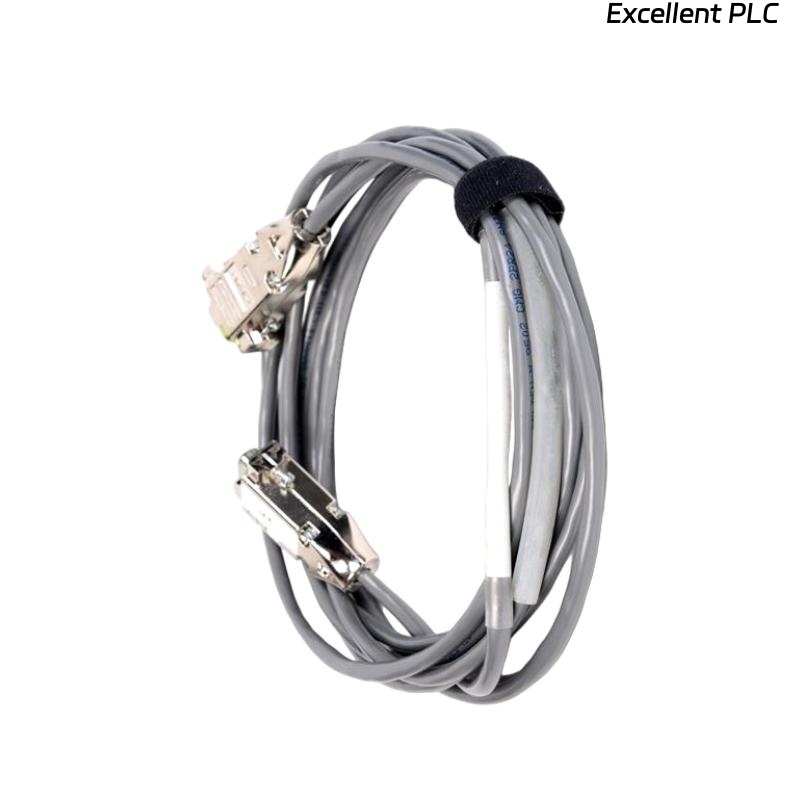

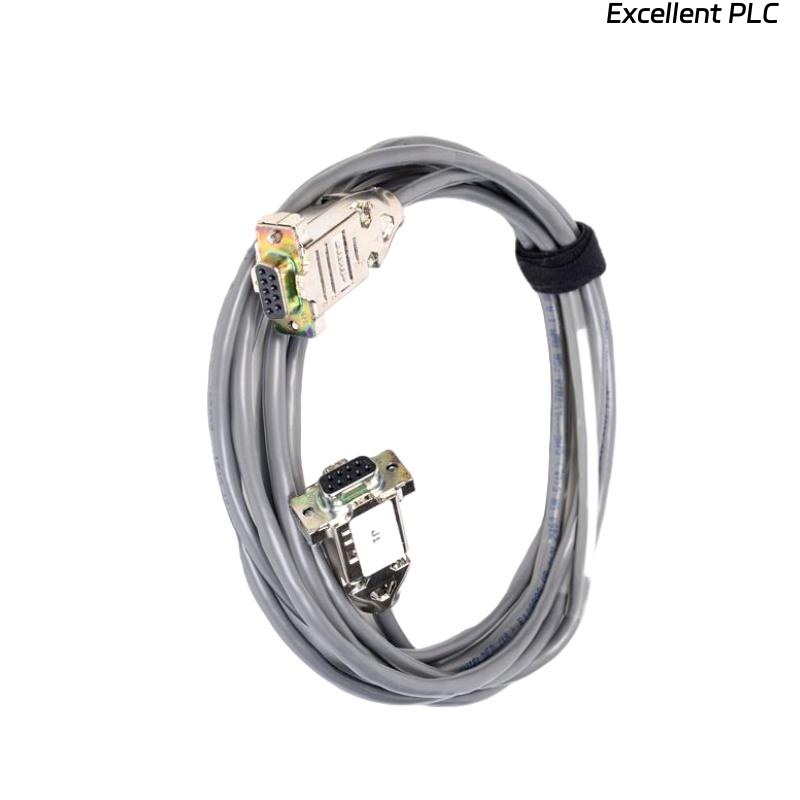

The Bently Nevada 146085-01 Power Cable is a robust and reliable power transmission component designed specifically for use within Bently Nevada monitoring systems. This cable provides a secure and stable power connection between monitoring hardware and control units, ensuring continuous operation of critical condition monitoring equipment. Manufactured with industrial-grade materials, it delivers consistent performance in demanding environments such as power generation, petrochemical plants, heavy industry, and aerospace test systems.
The cable is engineered to support long-term operational reliability, offering strong shielding against electromagnetic interference (EMI) and mechanical durability. Its compatibility with Bently Nevada’s advanced monitoring systems makes it a key accessory for seamless integration and dependable system performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 146085-01 |
| Product Type | Power Cable |
| Compatibility | Bently Nevada monitoring systems and control modules |
| Voltage Rating | 250 V AC / DC (nominal) |
| Current Capacity | 5 A (continuous) |
| Conductor Material | High-purity copper, multi-stranded |
| Insulation Type | Industrial-grade PVC with shielding |
| Shielding | EMI/RFI resistant braided shielding |
| Connector Type | Factory-fitted industrial-grade connectors |
| Flame Resistance | UL94-V0 rated insulation |
| Operating Temperature | -25°C to +90°C |
| Storage Temperature | -40°C to +100°C |
| Humidity Tolerance | 0–95% RH, non-condensing |
| Cable Diameter | 12 mm (typical) |
| Shipping Weight | 3 kg |
Applications
The Bently Nevada 146085-01 Power Cable is used across a wide range of critical industrial applications:
-
Condition Monitoring Systems: Reliable power delivery for vibration monitoring and machine protection systems.
-
Power Plants: Supports turbine and generator monitoring equipment in energy production facilities.
-
Petrochemical Industry: Ensures continuous operation of safety and monitoring systems in refineries and chemical plants.
-
Aerospace and Defense: Stable connection for test systems monitoring engines and rotating equipment.
-
Heavy Machinery: Provides dependable power to monitoring units in mining, steel, and manufacturing plants.
-
Automation Systems: Enables integration with PLCs, control racks, and monitoring instruments.
Advantages
-
High Reliability: Engineered for continuous power delivery in mission-critical systems.
-
Strong EMI Shielding: Protects sensitive signals from electrical interference.
-
Durable Construction: Industrial-grade materials withstand mechanical stress and harsh environments.
-
Thermal Stability: Operates reliably over a wide temperature range.
-
Easy Integration: Designed for seamless use with Bently Nevada monitoring systems.
-
Safety Compliance: Built with flame-retardant insulation and safety-certified connectors.
-
Low Maintenance: Robust design minimizes downtime and replacement needs.
Frequently Asked Questions (FAQ)
-
What systems are compatible with the 146085-01 Power Cable?
It is designed to work with Bently Nevada monitoring and protection systems, ensuring full compatibility with their modules and racks. -
What is the voltage rating of this power cable?
The cable supports up to 250 V AC or DC, suitable for standard monitoring and industrial control applications. -
What is the current carrying capacity?
The cable can carry up to 5 A continuously, ensuring stable power delivery to connected systems. -
Does the cable provide shielding against interference?
Yes, it features braided EMI/RFI shielding to protect sensitive monitoring equipment from electrical noise. -
What conductor material is used?
It uses multi-stranded high-purity copper conductors for low resistance and efficient current flow. -
What insulation material is applied?
Industrial-grade PVC with high dielectric strength and flame-retardant properties. -
Can it withstand high humidity environments?
Yes, it operates reliably in up to 95% relative humidity, non-condensing. -
What is the operating temperature range?
-25°C to +90°C, suitable for most industrial and power plant environments. -
Is it designed for flexible installation?
Yes, its construction allows bending and routing in control panels or rack systems. -
Does the cable come with factory-fitted connectors?
Yes, industrial-grade connectors are pre-installed for secure and quick installation.
