Product Introduction

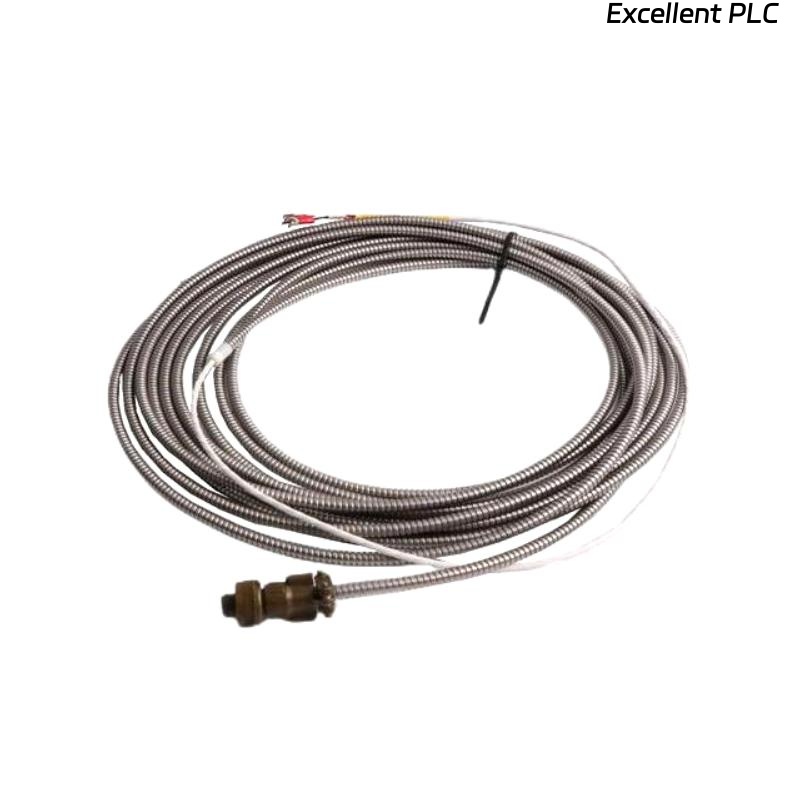

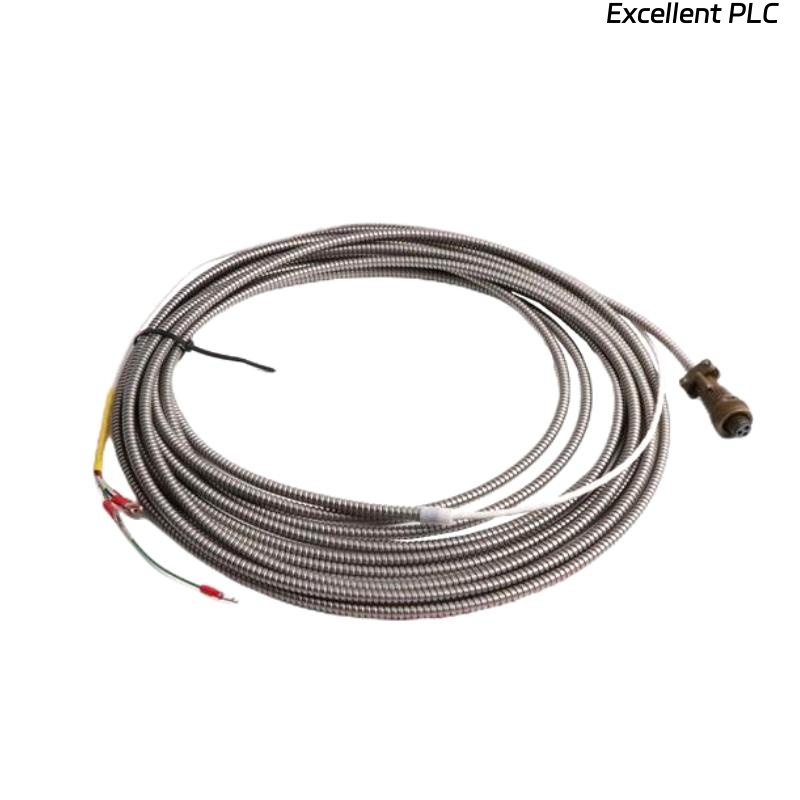

The Bently Nevada 151M8244-01 Accelerometer Cable is a premium-quality signal transmission cable designed for use with Bently Nevada vibration and acceleration sensors in industrial condition monitoring systems. It serves as a critical link between accelerometers and monitoring modules, ensuring that vibration and dynamic motion data are transmitted accurately, without distortion or loss.
This cable is part of GE’s Bently Nevada 330400 Series family of sensor accessories and is engineered to maintain signal integrity even in electrically noisy and harsh mechanical environments. It features robust shielding, durable insulation, and vibration-resistant connectors that enable it to perform reliably in turbines, compressors, pumps, and rotating machinery applications.
The 151M8244-01 cable is compatible with a wide range of Bently Nevada accelerometers and transducers, providing dependable connectivity in applications where high signal fidelity and rugged construction are mandatory.
Product Parameters
| Parameter | Description |
|---|---|
| Product Model | 151M8244-01 |
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Product Type | Accelerometer Cable / Signal Transmission Cable |
| Compatible Sensors | Bently Nevada accelerometers and velocity sensors |
| Connector Type | Dual-ended, shielded connectors (industry-standard) |
| Cable Type | Coaxial or twisted-pair configuration (depending on variant) |
| Signal Type | Analog voltage signal (mV/g output from accelerometer) |
| Frequency Bandwidth | DC to 10 kHz (typical system response range) |
| Shielding | Multi-layer EMI/RFI shielding |
| Insulation Material | PTFE (Teflon) / FEP for high temperature and chemical resistance |
| Outer Jacket | Abrasion-resistant polyurethane or fluoropolymer |
| Maximum Voltage | 50 V RMS continuous |
| Capacitance | ≤ 100 pF/m |
| Conductor Material | Silver-plated copper wire |
| Temperature Range | -55°C to +200°C |
| Humidity Tolerance | Up to 95% non-condensing |
| Mechanical Flexibility | Rated for continuous motion and vibration |
| Total Length | Optional |
| Shipping Weight | 3 kg |
| Compliance | CE, RoHS, and ATEX certified for industrial environments |
Product Applications
The Bently Nevada 151M8244-01 Accelerometer Cable plays a crucial role in signal acquisition systems used for machinery condition monitoring. It is used extensively across industries where accurate vibration signal transmission is essential for predictive maintenance and equipment protection.
-
Turbomachinery: Connects accelerometers to monitoring modules in gas, steam, and hydro turbines to detect imbalance, bearing wear, and misalignment.
-
Compressors: Transmits vibration signals from compressor housing or bearings to diagnostic systems for early fault detection.
-
Pumps and Motors: Enables continuous monitoring of dynamic vibration levels in rotating shafts and bearings.
-
Generators: Used in vibration and acceleration monitoring systems to ensure mechanical stability during operation.
-
Gearboxes: Facilitates condition assessment by carrying vibration data from sensors to analysis hardware.
-
Industrial Automation Systems: Supports integration into PLC- or DCS-based condition monitoring architectures.
Product Advantages
The Bently Nevada 151M8244-01 is designed with a focus on reliability, signal quality, and mechanical durability. Its advanced materials and shielding technologies make it a preferred choice in harsh and high-precision industrial environments.
-
Superior Signal Integrity: Advanced coaxial design minimizes signal attenuation and electrical interference for high-fidelity data transmission.
-
Rugged Construction: Built to withstand continuous mechanical vibration, thermal cycling, and oil exposure in industrial plants.
-
Electromagnetic Protection: Features multi-layer EMI and RFI shielding to protect against electromagnetic noise from nearby equipment.
-
Flexible Installation Options: Available in various lengths and connector types to suit different installation environments.
-
High-Temperature Resistance: Operates efficiently in environments up to +200°C with stable performance.
-
Corrosion and Chemical Resistant: Jacket materials are resistant to oils, fuels, and industrial solvents.
-
Maintenance-Friendly Design: Plug-and-play compatibility with Bently Nevada sensors simplifies field installation and replacement.
-
Long-Term Reliability: Engineered to maintain mechanical integrity and electrical performance over extended service periods.
-
Consistent Calibration Accuracy: Maintains linearity and response accuracy when paired with matched accelerometers.
-
Global Industry Standard: Trusted in critical rotating machinery applications worldwide due to its proven reliability and compliance with API 670 standards.
FAQ
-
What type of signal does the 151M8244-01 cable carry?
It transmits analog voltage signals from piezoelectric accelerometers to the vibration monitoring system, maintaining linear signal response and minimal phase distortion. -
Is the cable shielded against electromagnetic interference?
Yes, it features multi-layer shielding, including braided copper and foil layers, which effectively reduce EMI and RFI interference for clean signal transmission. -
Can this cable be used in high-temperature zones?
The cable is rated for continuous operation up to +200°C, thanks to its PTFE insulation and high-temperature outer jacket materials. -
What connector type is used at both ends of the cable?
It typically uses BNC or 2-pin MIL-style connectors, depending on the specific sensor and monitoring system configuration. -
Is it compatible with all Bently Nevada accelerometers?
It is designed for broad compatibility with most Bently Nevada accelerometers and velocity sensors, especially those within the 330400 Series. -
Is the 151M8244-01 cable compatible with other Bently Nevada monitoring systems?
It integrates seamlessly with most Bently Nevada vibration monitoring and condition monitoring systems, including 3500 Series, 3701 Series, and Orbit 60 systems, ensuring complete system compatibility and stable signal transfer. -
How does the cable handle mechanical stress or vibration?
The cable’s internal construction includes flexible strain relief and a reinforced outer jacket to prevent fatigue from bending or vibration. -
Can the cable be used in hazardous (ATEX) environments?
Yes, it meets ATEX and CE standards for safe use in hazardous areas where explosive gases or vapors may be present. -
What type of insulation is used for high electrical reliability?
PTFE or FEP insulation materials provide excellent dielectric strength, temperature tolerance, and resistance to moisture and chemical exposure. -
Does the cable affect the frequency response of the accelerometer system?
When used within specified lengths and impedance ranges, the cable preserves the accelerometer’s full frequency response from DC to 10 kHz.
