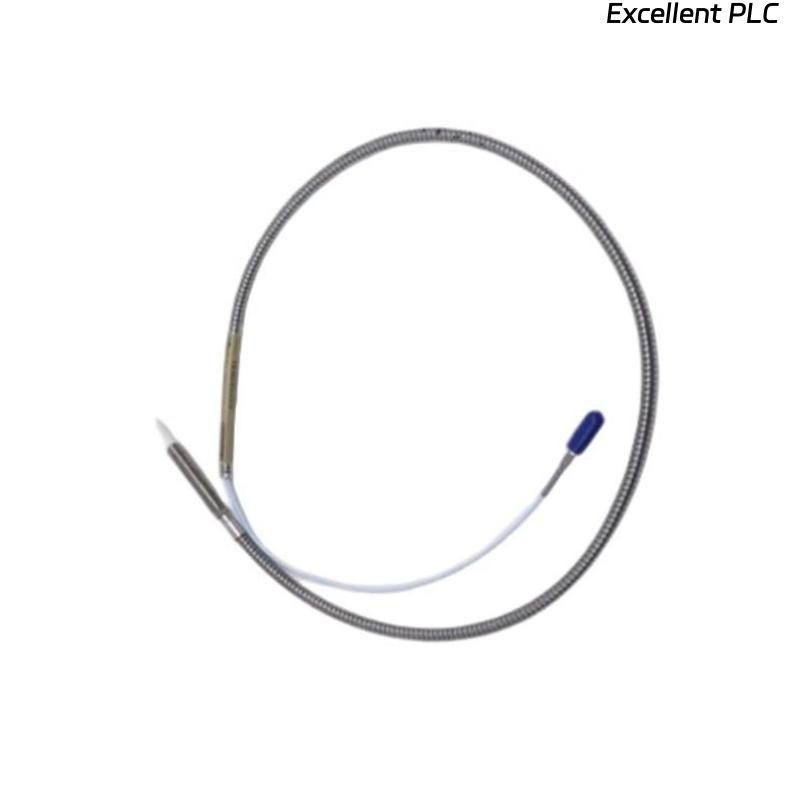

Bently Nevada 164517-090-05-01-05 3300 XL Ceramic Capped Proximity Probes

Product Introduction

The Bently Nevada 164517-090-05-01-05 3300 XL Ceramic Capped Proximity Probe is part of the renowned 3300 XL series, engineered for highly reliable machinery condition monitoring. This probe is designed to measure the relative vibration and position of rotating shafts, enabling operators to protect and optimize critical machinery such as turbines, compressors, pumps, and motors.

The ceramic cap provides additional protection against mechanical wear, thermal effects, and chemical corrosion, making it suitable for challenging industrial environments. With superior linearity, stability, and noise immunity, the probe ensures accurate vibration and displacement measurements under continuous operation.

Product Specifications

Applications

The 3300 XL Ceramic Capped Proximity Probe is widely used in machinery protection and diagnostics, with applications including:

• Turbomachinery monitoring in power plants and refineries.

• Compressor condition tracking for oil & gas facilities.

• Pump vibration monitoring to reduce cavitation risks.

• Motor shaft alignment checks in industrial operations.

• Gearbox diagnostics in heavy-duty machinery.

• Aerospace and defense equipment testing for precision motion measurement.

• Chemical and petrochemical processing plants where harsh conditions exist.

Advantages

• Ceramic Capped Durability: Enhanced resistance to wear, high temperatures, and chemical corrosion.

• High Measurement Accuracy: Provides stable sensitivity of 200 mV/mil with wide linear range.

• Extended Environmental Capability: Operates reliably in extreme temperature and vibration conditions.

• System Integration: Fully compatible with Bently Nevada 3300 XL proximitor and extension cables.

• Reduced Signal Noise: Designed with excellent EMI/RFI shielding for clean data.

• Long-Term Reliability: Proven performance in continuous 24/7 machinery monitoring.

• Global Standard: Trusted by industries worldwide for safety and predictive maintenance.

Frequently Asked Questions (FAQ)

1. What is the sensitivity of the 164517-090-05-01-05 probe?
   The probe has a sensitivity of 200 mV/mil (7.87 mV/µm), ensuring accurate displacement measurements.

2. What is the probe’s linear measurement range?
   It can measure accurately within an 80 mil (2 mm) linear range.

3. Is the probe tip resistant to chemical environments?
   Yes, the ceramic cap provides strong resistance to corrosive agents.

4. What is the compatible proximitor for this probe?
   It integrates seamlessly with the Bently Nevada 3300 XL proximitor modules.

5. How does the probe handle high vibration environments?
   It is designed to withstand vibration levels up to 200 g at 10 kHz.

6. What is the operating temperature range?
   The probe operates reliably between -35°C and +180°C.

7. Does the probe require specific cabling?
   Yes, it requires 3300 XL series extension cables for proper function and calibration.

8. What type of measurement does it provide?
   It measures non-contact shaft displacement and vibration using the eddy current principle.

9. Can the probe be used in hazardous areas?
   Yes, with the proper proximitor and installation, it can be applied in hazardous zones.

10. What is the electrical output of the probe?
    It delivers a voltage output proportional to shaft displacement, calibrated at 200 mV/mil.
